Product Details:
|
| Protection Class: | II | Switching Mode: | Light/dark Switching |
|---|---|---|---|
| Switching Frequency: | 1,000 Hz | Housing Material: | Metal, Zinc Diecast |
| Dimensions: | 50x25x25mm | Light Source: | Red LED |
| Material: | ABS | Model: | V18-4F310 |
| Output Type: | PNP/NPN | Product Name: | Sick Photoelectric Sensor |
| Protection Class: | IP67 | ||
| High Light: | Compact Sick Photoelectric Sensor,Zinc Diecast Sick Photoelectric Sensor,Zinc Diecast Sick Diffuse Sensor |
||

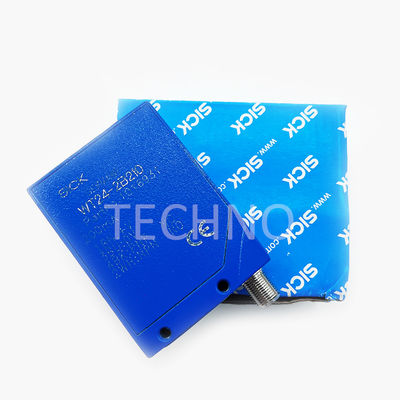

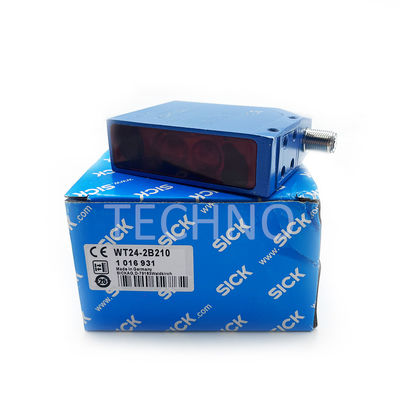

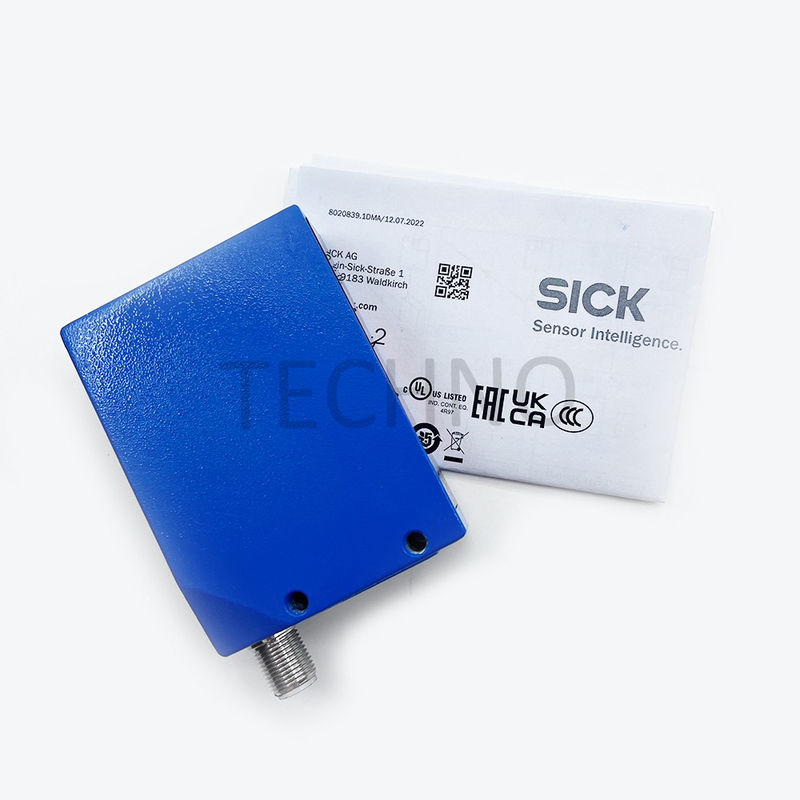

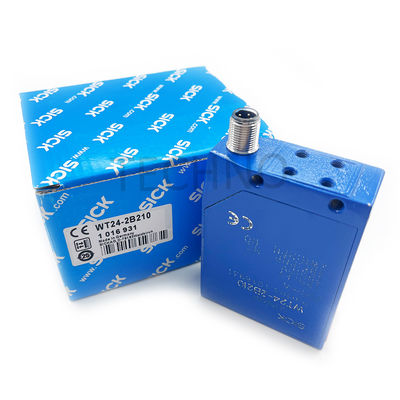

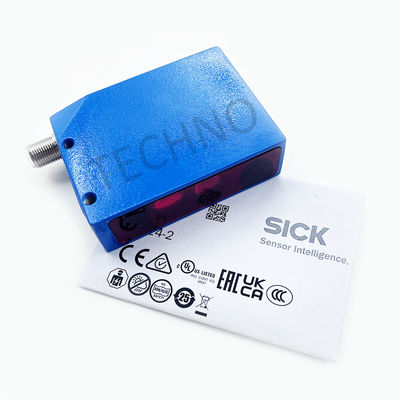

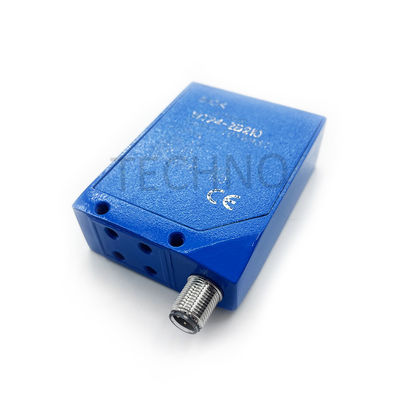

SICK Compact Photoelectric Sensors WT24-2B210
SICK Compact Photoelectric Sensors WT24-2B210 Semiconductor Quick fixation Long sensing distance
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) Signal transit time with resistive load.
5) With light/dark ratio 1:1.
6) A = VS connections reverse-polarity protected.
7) C = interference suppression.
8) D = outputs overcurrent and short-circuit protected.
9) Reference voltage: 50 V DC.
| Features | |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current I_{max.} | ≤ 100 mA |
| Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Terminal connection with M16 gland |
| Protection class | II |
| Weight | 330 g |
| Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Test input sender off | TE to 0 V |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Type of light | Infrared light |
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm |
| Adjustment | Potentiometer |
| Safety-related parameters | |
| MTTFD | 787 years |
| DCavg | 0 % |
