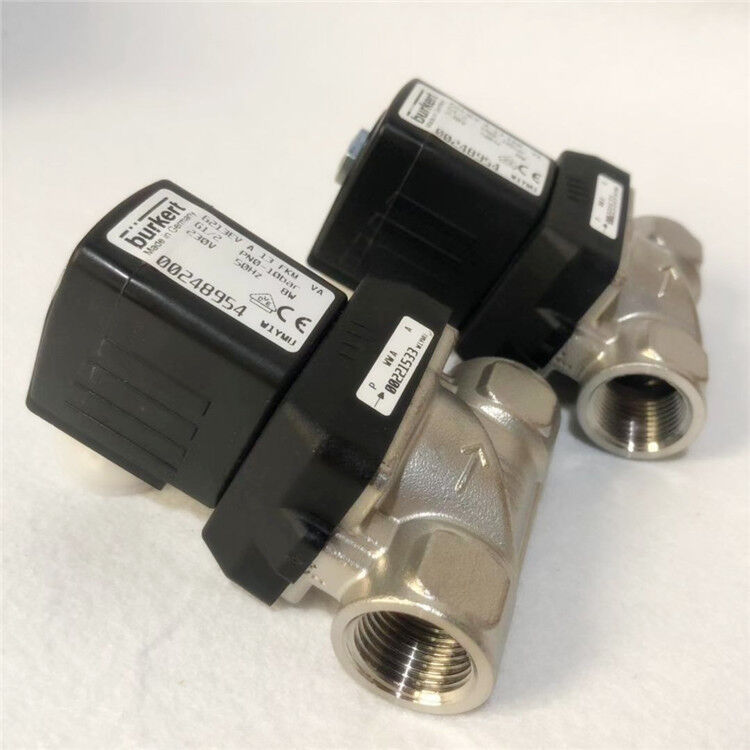

Baode Solenoid Valve 6213EV A13.0 G1/2 00248954 Stainless Steel Solenoid Valve

Product Description:

• Valve Body Material: Stainless steel grade 1.4408 (316).
• Nominal Size: Standard orifice diameter DN10–DN40; special model HP00 features an orifice diameter of DN13–DN20.
• Sealing Material: Multiple options available, including NBR, FKM, EPDM, etc.
• Pressure Range: Typically 0–10 bar.
• Medium Temperature: Varies by sealing material
  • NBR seal: -10°C to +80°C
  • FKM seal: 0°C to +90°C (polyamide coil) or 0°C to +120°C (epoxy resin coil)
  • EPDM seal: -30°C to +90°C (polyamide coil) or -30°C to +100°C (epoxy resin coil)
• Ambient Temperature: Max. +55°C.
• Protection Class: IP65; compliant with NEMA 4X when combined with a stainless steel housing.
• Electrical Connection: Plug conforming to DIN EN 175301-803 Form A.
• Operating Voltage: Multiple options available, including 24V DC, 24V AC/50Hz, 230V AC/50Hz, 110V AC/50Hz, 120V AC/60Hz; special model HP00 is compatible with 24V AC (50–60Hz) and 230V AC (50–60Hz).
• Operating Cycle: Continuous operation with 100% duty cycle.
• Product Features: Spring-coupled diaphragm for zero-differential pressure opening; vibration-resistant threaded coil system; damping design for quiet closing; compact structure with high flow rate.

• Parameter Category	Details
  Valve Body Material	Stainless Steel 1.4408 (316)
  Nominal Size	Standard type: Orifice diameter DN10–DN40   Special model HP00: Orifice diameter DN13–DN20
  Sealing Material Options	NBR, FKM, EPDM
  Pressure Range	0–10 bar
  Medium Temperature	NBR seal: -10°C to +80°C   FKM seal: 0°C to +90°C (polyamide coil); 0°C to +120°C (epoxy resin coil)   EPDM seal: -30°C to +90°C (polyamide coil); -30°C to +100°C (epoxy resin coil)
  Ambient Temperature Limit	Max. +55°C
  Protection Class	IP65; NEMA 4X compliant when paired with stainless steel housing
  Electrical Connection	Plug in accordance with DIN EN 175301-803 Form A
  Operating Voltage Options	Standard types: 24V DC, 24V AC/50Hz, 230V AC/50Hz, 110V AC/50Hz, 120V AC/60Hz   Special model HP00: 24V AC (50–60Hz), 230V AC (50–60Hz)
  Operating Cycle	Continuous operation (100% duty cycle)
  Product Features	1. Spring-coupled diaphragm for zero-differential pressure opening   2. Vibration-resistant threaded coil system   3. Damping design enables quiet closing   4. Compact structure with high flow rate

Applications:

The BURKERT Solenoid Valve, a highly reliable and efficient fluid control solution, is widely used across various industries due to its superior performance and robust design. As a trusted product from the renowned BURKERT brand, this valve is CE certified, ensuring compliance with international safety and quality standards. Ideal for both industrial and commercial applications, the BURKERT Fluid Control Valve is designed to handle a wide range of operating conditions, making it suitable for diverse application occasions and scenarios.

One common application occasion for the BURKERT Solenoid Valve is in automated fluid control systems within manufacturing plants. Its ability to operate at voltages such as 24 V/DC, 24 V/UC, 24 V/50…60 Hz, 230 V/UC, and 230 V/50…60 Hz allows it to integrate seamlessly into existing electrical infrastructures. The valve’s orifice sizes range from DN 10 to DN 50, accommodating various flow rates required in process control, chemical dosing, and water treatment systems. Additionally, with a medium temperature tolerance from -10 °C to +80 °C and durable NBR seals, the Burkert Valve is capable of functioning effectively in both moderate and harsh temperature environments.

In the food and beverage industry, the BURKERT Solenoid Valve ensures precise control of liquids and gases, contributing to hygiene and safety compliance. Its reliable sealing and quick response times prevent leakage and contamination, essential for processing and packaging operations. Similarly, in HVAC (Heating, Ventilation, and Air Conditioning) systems, the Burkert Valve regulates the flow of refrigerants and air, enhancing system efficiency and energy savings.

The product’s packaging is customizable, shipped in cartons or as per client requirements, ensuring safe delivery. With a minimum order quantity of just one piece and a supply ability of 5000 pieces per month, the BURKERT Solenoid Valve is accessible for both small-scale projects and large industrial demands. The delivery time is efficient, ranging from 1 to 7 workdays after payment, with flexible payment terms including T/T, Western Union, and PayPal, facilitating smooth transactions worldwide.

Overall, the BURKERT Fluid Control Valve Type 6281 is an optimal choice for various fluid control applications requiring durability, precision, and compliance. Whether for industrial automation, water management, or HVAC systems, this Burkert Valve offers a dependable solution tailored to meet rigorous operational needs.

Packing and Shipping:

Product Packaging and Shipping for Burkert Solenoid Valve:

Each Burkert solenoid valve is carefully packaged to ensure safe delivery and optimal protection during transit. The valve is placed in a custom-fitted protective foam insert inside a sturdy cardboard box to prevent any damage from shocks or vibrations.

All packaging materials used are eco-friendly and comply with international shipping standards. The box is clearly labeled with product details, handling instructions, and shipping information to facilitate smooth logistics.

Shipping options include standard and expedited services, with tracking available for all shipments. Burkert solenoid valves are shipped worldwide with reliable carriers, ensuring timely and secure delivery to the customer’s specified location.

For bulk orders, pallets are used with additional strapping and cushioning to safeguard the products during transportation. Special care is taken for valves with sensitive components or custom configurations.

Customers are advised to inspect the packaging upon receipt and report any damage immediately to enable prompt resolution.
