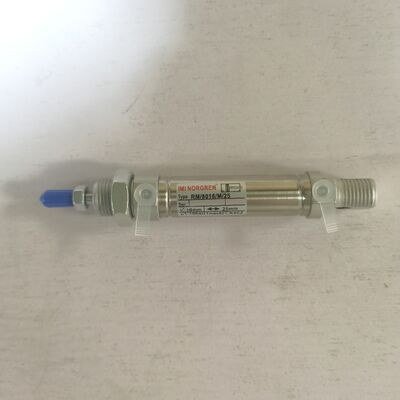

Stainless Steel Barrel Piston Pneumatic Cylinder RM/28010/100 RM/28010/M/100 NORGREN

Product Description:

The Piston Pneumatic Cylinder is a highly versatile and reliable component designed for a wide range of industrial automation applications. This magnetic piston cylinder is engineered to deliver precise and efficient linear motion, making it an essential part of modern automation systems. Manufactured to meet stringent quality standards, this cylinder ensures consistent performance and durability, making it ideal for use in various automated processes.

One of the key features of this Automation Cylinder is its buffer cushioning capability. The buffer cushioning mechanism provides smooth deceleration at the end of the piston stroke, reducing impact and minimizing noise during operation. This feature not only enhances the overall lifespan of the cylinder but also contributes to safer and quieter working environments, which is crucial in automated production lines.

The cylinder operates efficiently within a pressure range of 2 to 10 Bar (29 to 145 Psi), making it suitable for a variety of pneumatic systems. This operating pressure range ensures optimal force generation for different application needs while maintaining energy efficiency. Whether used in light-duty tasks or more demanding industrial operations, this cylinder delivers consistent performance throughout its operating range.

Available in multiple bore sizes of 10, 12, 16, 20, and 25 mm, this ISO 6432 cylinder provides flexibility in selecting the appropriate size to match specific application requirements. The range of bore sizes allows for customization in terms of force output and stroke length, enabling engineers to design precise automation solutions. This versatility makes the cylinder suitable for integration into diverse machinery and equipment.

Constructed with a stainless steel barrel, the cylinder boasts excellent resistance to corrosion and wear. The choice of stainless steel as the barrel material ensures longevity even in harsh industrial environments where exposure to moisture, chemicals, or other contaminants is common. This durable construction guarantees reliable operation and reduces maintenance efforts, making it a cost-effective solution over the long term.

The Piston Pneumatic Cylinder is designed to operate effectively within a temperature range of -10°C to +80°C (14°F to 176°F). This wide operating temperature range allows the cylinder to function reliably in various environmental conditions, from cold storage facilities to warm manufacturing floors. The cylinder’s ability to maintain performance across these temperatures enhances its applicability in different industries.

As an ISO 6432 cylinder, this product meets international standards for pneumatic cylinders, ensuring compatibility and interchangeability with other ISO-compliant components. This standardization simplifies system design and maintenance, providing confidence in the quality and performance of the cylinder. Additionally, the magnetic piston feature enables precise position sensing, facilitating advanced automation control and monitoring.

In summary, the Piston Pneumatic Cylinder combines robust construction, versatile sizing, and advanced cushioning technology to deliver superior performance in automated systems. Its magnetic piston cylinder design, coupled with compliance to ISO 6432 standards, makes it an excellent choice for engineers and manufacturers seeking reliable and efficient pneumatic solutions. Whether for assembly lines, packaging machinery, or other automation applications, this cylinder stands out as a dependable component that enhances productivity and operational efficiency.

Technical Parameters:

Applications:

The NORGREN Piston Pneumatic Cylinder, model RM/28012/20, is a highly versatile and reliable air piston cylinder designed to meet various industrial automation needs. Certified with CE standards, this pneumatic cylinder guarantees quality and safety, making it an ideal choice for applications requiring precision and durability. With a bore size range of 10mm to 25mm and an operating pressure between 2 to 10 bar (29 to 145 psi), this magnetic piston cylinder is suitable for a wide spectrum of pneumatic control systems.

This ISO 6432 cylinder is extensively used in manufacturing and assembly lines where compact, lightweight, and efficient pneumatic actuation is essential. Its stainless steel barrel material ensures excellent corrosion resistance and longevity, making it perfect for harsh environments and applications with operating temperatures from -10°C to +80°C (14°F to 176°F). The built-in buffer cushioning feature provides smooth operation by minimizing impact shocks, which enhances the lifespan of the equipment and improves overall performance.

In packaging machinery, the NORGREN RM/28012/20 pneumatic cylinder excels in repetitive linear motion tasks such as pushing, pulling, lifting, and clamping. Its precise control capabilities allow for accurate positioning and quick response times, which are critical in automated packaging and material handling processes. Additionally, its compact design and multiple bore sizes make it adaptable to space-constrained installations.

Another common application scenario for this air piston cylinder includes robotic arms and pick-and-place machines, where reliable and consistent actuation is required. The magnetic piston cylinder feature allows for easy integration with external sensors, enabling position feedback and enhancing automation intelligence. This functionality is particularly valuable in quality control systems and production lines that demand high accuracy and repeatability.

NORGREN’s supply ability of 5000 pieces per month ensures steady availability for large-scale projects, with delivery times ranging from 1 to 7 workdays after payment confirmation. Customers can negotiate pricing based on order quantity and specific requirements, while flexible packaging options such as cartons or customized solutions meet diverse shipping needs. Payment terms including T/T, Western Union, and PayPal provide convenient transaction methods to accommodate global clients.

Overall, the NORGREN RM/28012/20 piston pneumatic cylinder is an excellent choice for industries such as automotive, electronics, food processing, and pharmaceuticals, where reliable pneumatic actuation is crucial. Its combination of robust construction, precise control, and versatile application opportunities makes it a preferred solution for modern automated systems seeking efficiency and durability.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent moisture and dust accumulation. It is then securely placed in a custom-fitted foam insert to cushion against shocks and vibrations. The foam insert and cylinder are placed inside a sturdy corrugated cardboard box designed to withstand rough handling.

For shipping, we use reliable carriers with tracking services to guarantee timely and safe delivery. The packages are clearly labeled with handling instructions and product details to facilitate smooth logistics. Bulk orders are palletized and shrink-wrapped to maintain stability during shipment. Our packaging and shipping processes adhere to international standards to ensure that the Piston Pneumatic Cylinder arrives at your facility in perfect condition.
