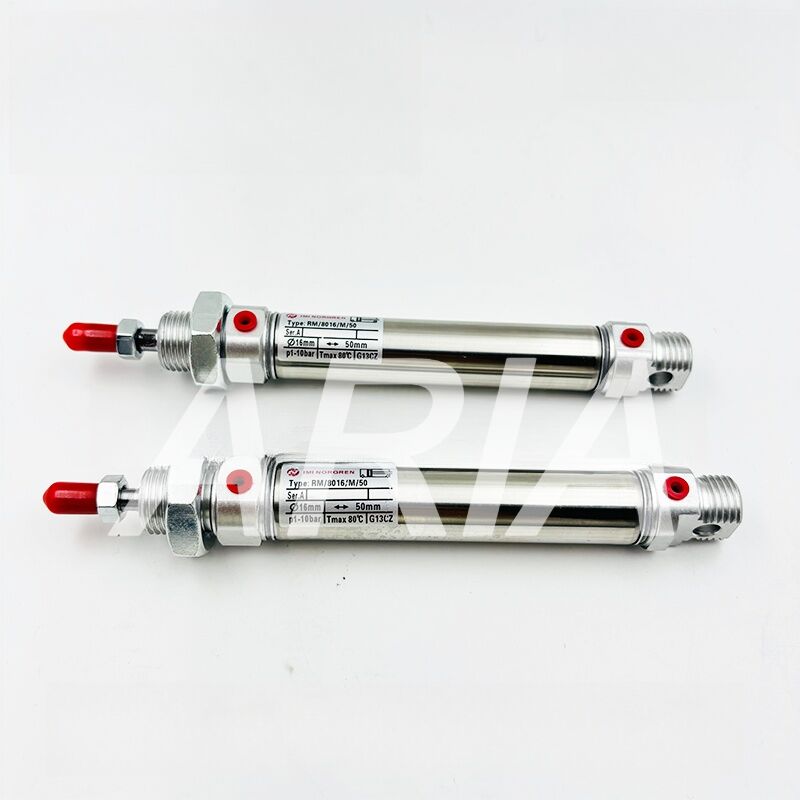

RM/28010/50 RM/28010/M/50 NORGREN Roundline cylinders (ISO) mini cylinder

Product Description:

The Piston Pneumatic Cylinder is a versatile and reliable pneumatic actuator designed to meet a wide range of industrial automation needs. Available in multiple bore sizes including 10 mm, 12 mm, 16 mm, 20 mm, and 25 mm, this mini cylinder is ideal for applications requiring precise linear motion in compact spaces. Its compact design does not compromise performance, making it an excellent choice for various machinery and equipment where space constraints are a concern.

One of the standout features of this pneumatic cylinder is its single-acting, spring return operation. This means that the cylinder extends when air pressure is applied and automatically returns to its original position with the help of an internal spring when the pressure is released. This operation mode simplifies control while providing reliable and repeatable motion, which is essential for automation processes that demand consistent performance.

The inclusion of a magnetic piston enhances the functionality of the cylinder. The magnetic piston cylinder design allows for easy detection of piston position through magnetic sensors, enabling precise monitoring and control in automated systems. This feature is particularly useful in applications where feedback is necessary for safety, synchronization, or operational efficiency. The magnetic piston ensures seamless integration with electronic control systems, improving the overall automation process.

Operating efficiently within a temperature range of -10°C to +80°C (14°F to 176°F), this pneumatic cylinder is well-suited for a variety of environments. Whether in colder or moderately warm industrial settings, the cylinder maintains optimal performance without degradation of materials or function. This temperature tolerance expands the range of possible applications, from manufacturing floors to specialized equipment operating in diverse climatic conditions.

Buffer cushioning is incorporated into the design to ensure smooth and controlled deceleration of the piston at the end of its stroke. This cushioning feature protects both the cylinder and the machinery it operates by reducing impact forces, minimizing wear and tear, and enhancing the longevity of the equipment. Operators benefit from quieter operation and reduced maintenance requirements, making the piston pneumatic cylinder an economical choice over time.

The operating pressure range of 2 to 10 Bar (29 to 145 Psi) provides flexibility in various pneumatic systems. This broad pressure range allows the cylinder to deliver adequate force for numerous applications, from light-duty tasks requiring delicate handling to more demanding operations requiring higher force output. The adaptability to different pressure levels makes this mini cylinder suitable for a wide spectrum of industrial sectors including automotive, packaging, robotics, and assembly lines.

Overall, the Piston Pneumatic Cylinder with a magnetic piston is an essential component for modern automation solutions. Its combination of compact size, reliable single-acting spring return operation, magnetic piston for position sensing, buffer cushioning, and wide operating temperature and pressure ranges make it an outstanding pneumatic cylinder choice. Whether used as a standalone unit or integrated into complex machinery, this mini cylinder delivers consistent performance, durability, and precise control, meeting the high standards required in today’s industrial environments.

Technical Parameters:

Applications:

The NORGREN Piston Pneumatic Cylinder, model RM/28012/20, is an exceptionally versatile and reliable component widely used in various industrial applications. Certified with CE standards, this air piston cylinder is designed to meet stringent quality and safety requirements, ensuring optimal performance in demanding environments. With a stainless steel barrel material and a bore size range of 10 to 25 mm, it caters to diverse mechanical and automation needs, offering both durability and precision.

This magnetic piston cylinder operates under an operating pressure range of 2 to 10 bar (29 to 145 psi) and features a single-acting, spring return mechanism with cushioning for smooth and controlled motion. The buffer cushioning protects the cylinder and connected equipment from shock, enhancing longevity and reliability. Its magnetic piston allows for easy position sensing, making it ideal for automated systems where accurate feedback is crucial. The product is also compatible with ISO 6432 cylinder standards, ensuring interchangeability and ease of integration within existing pneumatic systems.

Typical application occasions for the NORGREN RM/28012/20 piston pneumatic cylinder include automation assembly lines, packaging machinery, material handling systems, and robotic equipment. In manufacturing plants, it is frequently employed to drive linear movements such as pushing, pulling, lifting, and clamping. Its precise control and robust construction make it suitable for use in food processing, electronics assembly, automotive production, and pharmaceutical industries, where performance and reliability are paramount.

In addition, the magnetic piston feature enables seamless integration with sensors for position detection, making this air piston cylinder ideal for use in automated quality control systems, conveyor tracking, and sorting machines. Its single-acting operation with spring return simplifies design requirements while providing fail-safe retraction in emergency situations. The stainless steel barrel ensures resistance to corrosion and wear, allowing the cylinder to perform efficiently in harsh or humid environments, including outdoor installations and chemical processing plants.

With a minimum order quantity of just one piece and flexible packaging options tailored to client requirements, the NORGREN RM/28012/20 pneumatic cylinder is convenient for both small-scale projects and large industrial deployments. The product is competitively priced with negotiation options and supported by a supply ability of 5000 pieces per month, ensuring timely delivery within 1-7 working days after payment. Payment terms include T/T, Western Union, and Paypal, providing flexibility for international customers.

Overall, the NORGREN RM/28012/20 air piston cylinder is an excellent choice for engineers and system integrators seeking a high-quality, CE-certified ISO 6432 cylinder with magnetic piston capabilities and reliable cushioning. Its robust design, precise operation, and broad applicability make it a valuable asset in numerous pneumatic automation scenarios.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

Each piston pneumatic cylinder is carefully packaged to ensure it reaches you in perfect condition. The product is first wrapped in anti-static foam and sealed in a protective plastic bag to prevent any moisture or dust damage during transit.

Next, the cylinder is placed in a sturdy, custom-fitted cardboard box with additional cushioning materials such as bubble wrap or foam inserts to absorb shocks and vibrations.

For bulk orders, individual boxes are securely packed into larger cartons, with dividers to prevent movement and possible damage.

All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics and safe delivery.

We offer various shipping options including standard ground, expedited air freight, and international shipping, ensuring timely and reliable delivery worldwide.

Tracking information will be provided once the order has shipped, allowing you to monitor the shipment until it arrives at your doorstep.
