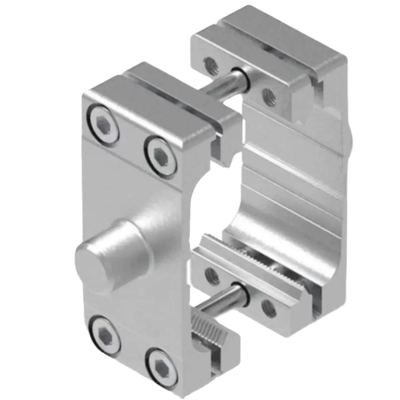

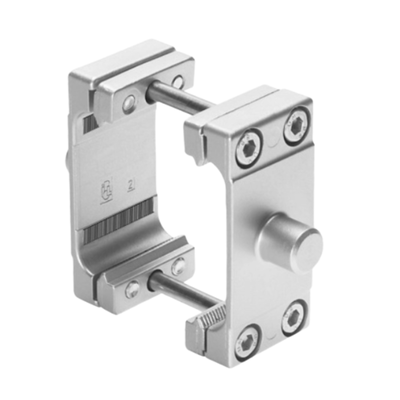

FESTO DAMT-V1-40-A Intermediate Pivot Kit Galvanized Steel Cylinder Accessory for Automotive & Electronic Assembly Production Line

Product Description:

The Festo DAMT-V1-A series trunnion mounting kit is an original accessory specifically designed for standard pneumatic cylinders that conform to the ISO15552 standard. This standard was formerly known as VDMA24562, ISO6431, NF E49003.1, and UNI10290. The kit is compatible with a variety of Festo cylinders, including the DSBC and DNC series, and supports bore sizes ranging from 32mm up to 125mm.

This mounting kit is engineered to enable a swing pivot installation for pneumatic actuators. It allows the cylinder to perform a free rotational swing during operation, which effectively addresses the requirement for multi-angle installations commonly encountered in automated production lines. This feature enhances flexibility and adaptability in various industrial applications.

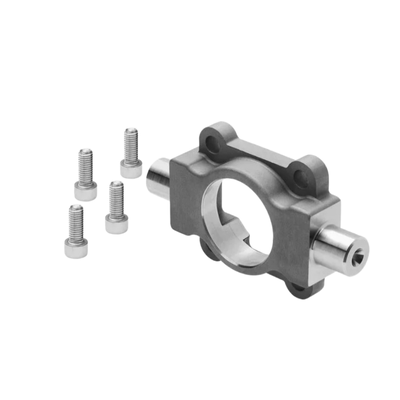

Each kit is supplied complete with all necessary components for installation. These include the trunnion flange, clamping blocks, a pivot pin made from high-alloy stainless steel, and galvanized mounting screws. The comprehensive nature of the kit ensures a straightforward, one-step installation process without the need for any additional spare parts, making it a convenient and reliable choice for users.

Features:

Our cylinders are meticulously manufactured in accordance with the international ISO15552 standard. They are fully compatible and interchangeable with original Festo spare parts, as well as cross-compatible with mainstream ISO standard pneumatic cylinders from various brands.

The trunnion flange, clamping piece, and screws are crafted from galvanized carbon steel for enhanced durability. The pivot shaft is made from high-alloy stainless steel, featuring the CRC1 low corrosion resistance grade. These components are free from copper and PTFE, comply with RoHS and VDMA-PWIS LABS standards, making them suitable for use in lithium battery production equipment.

Our cylinders maintain stable performance across a broad temperature range, from -40℃ up to 150℃. This adaptability makes them ideal for environments such as high-temperature baking lines and low-temperature refrigeration automation systems.

The design allows for rotary trunnion installation of the cylinder, with adjustable assembly clearance. This effectively absorbs lateral forces acting on the cylinder, significantly extending its service life.

We offer a comprehensive one-stop solution with bore sizes ranging from 32mm to 125mm (32/40/50/63/80/100/125mm). This extensive size range covers most industrial standard cylinder installation requirements.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial automation applications. For technical support, please ensure that you have the product model number and specifications ready to facilitate prompt assistance.

We offer comprehensive services including product installation guidance, troubleshooting, maintenance advice, and replacement parts support. Our technical team is equipped to help you optimize the cylinder’s performance and resolve any operational issues you may encounter.

For maintenance, regularly check the cylinder for air leaks, wear, and ensure proper lubrication as specified in the product manual. Proper installation and adherence to operating parameters will extend the product's service life and maintain optimal functionality.

In case of product malfunction, verify the air supply pressure, cylinder alignment, and connection fittings before contacting support. Detailed information about the operating environment and usage conditions will help us provide accurate and efficient solutions.

We also provide training resources and technical documentation to help you get the most out of your Piston Pneumatic Cylinder. Please refer to the product manual for detailed instructions and safety guidelines.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective foam sleeve to prevent scratches and dents. It is then placed inside a sturdy, custom-fitted cardboard box that provides cushioning and stability. Additional packing materials such as bubble wrap or air pillows may be added to fill any empty spaces and minimize movement within the box.

For shipping, we use reliable courier services that guarantee timely and safe delivery. The packages are clearly labeled with handling instructions to ensure careful treatment. Depending on the destination, shipping options include standard, expedited, and overnight delivery. Tracking information is provided to keep customers informed about the status of their shipment from dispatch to arrival.

Bulk orders are palletized and shrink-wrapped to facilitate efficient handling and protection during transportation. We also offer customized packaging solutions upon request to meet specific customer requirements.
