Ambient Temperature Range Minus 20 to Plus 80 Degrees Celsius Double Acting Compact Air Cylinder Designed for Durability

Product Description:

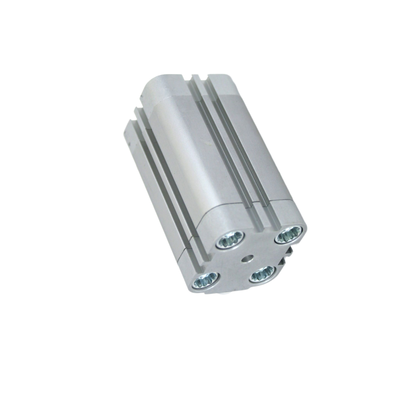

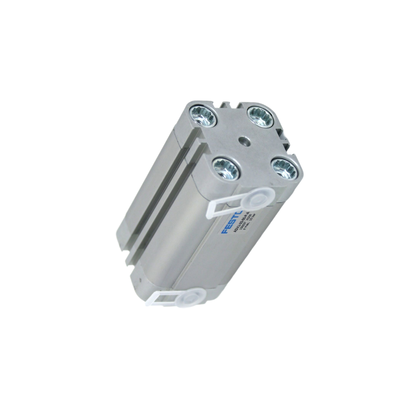

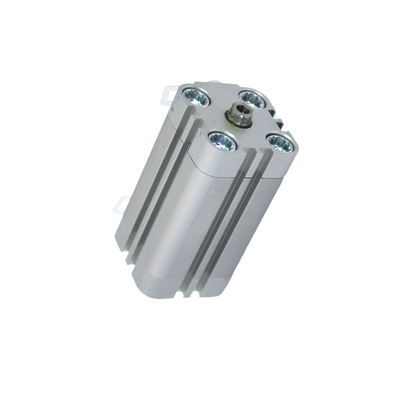

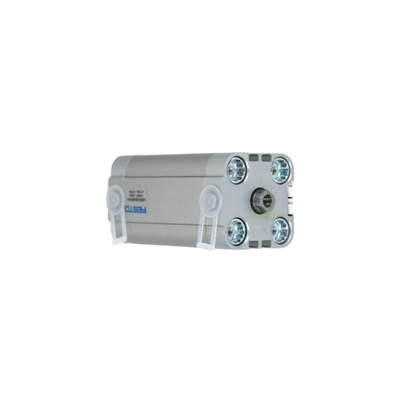

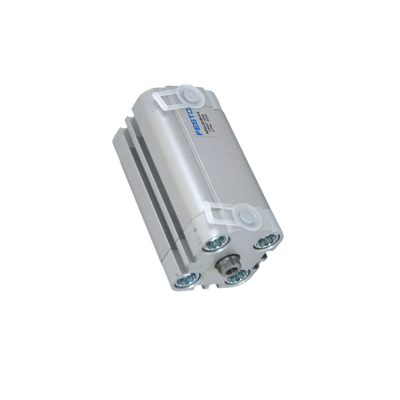

The Festo ADVU-32 series features a double-acting, compact pancake pneumatic cylinder with a bore size of 32mm. This series offers multiple stroke options including 30mm, 40mm, 50mm, 60mm, and 80mm to suit various application requirements.

There are two main configurations available for selection. The P-A standard version comes without a sensor slot and has a piston rod with an internal thread. Meanwhile, the A-P-A sensor version includes an integrated magnetic switch slot and a piston rod equipped with an external thread.

Designed with a compact square aluminum body, these cylinders provide strong output force while minimizing the space needed for installation. Additionally, the series maintains uniform mounting dimensions and interchangeable sealing components throughout, making it an excellent choice for medium and short-stroke automation tasks such as clamping, pushing, and positioning.

Below are the original part numbers for each configuration:

• P-A (internal thread): 156535, 156536, 156537, 156538, 156539
• A-P-A (external thread): 156621, 156622, 156623, 156624, 156625

Features:

The integrated compact square design features a shorter overall length compared to conventional tie rod cylinders, significantly preserving internal installation space within automated machinery. This innovative structure enhances the efficiency and flexibility of equipment layouts.

Equipped with a large 32mm bore, these cylinders deliver a powerful thrust while the double-acting design ensures consistent push and pull forces. Additionally, a low-friction piston enables smooth, high-speed reciprocating motions without the risk of jamming, optimizing performance in demanding applications.

There are two distinct structural variants available to meet diverse assembly requirements:

• P-A model: This version lacks a magnetic sensor slot and features a piston rod with an internal thread, making it suitable for embedded stoppers and integrated tooling connectors.
• A-P-A model: Comes with an integral magnetic switch groove on the cylinder body and a piston rod with an external thread, allowing direct connection to floating joints and external fixtures. It is compatible with magnetic proximity sensors.

The cylinder barrel is crafted from hard anodized aluminum, providing excellent wear resistance as well as oil and corrosion protection. This ensures a long service life even under frequent, high-cycle operational conditions.

Featuring a uniform 32mm bore and a comprehensive medium stroke range of 30, 40, 50, 60, and 80mm, all models come with universal mounting holes. This design facilitates easy replacement without requiring any modifications to the equipment frame.

Utilizing standard Festo original sealing kits and interchangeable spare parts across the entire series reduces maintenance costs and simplifies repairs. This standardization supports reliable, cost-effective upkeep.

The cylinders operate efficiently with standard industrial compressed air pressures ranging from 0.2 to 1.0 MPa, and piston speeds between 50 and 700 mm/s. Their stable performance is maintained even under continuous start-stop cycling conditions.

Standard mounting holes are provided on both the front and side surfaces, allowing support for horizontal, vertical, and side installation orientations. This versatility ensures compatibility with various machine layout structures.

Technical Parameters:

Applications:

Automated assembly lines perform a variety of tasks such as clamping heavy workpieces securely, executing high-thrust ejection movements, feeding materials efficiently, and accurately positioning and locking fixtures to ensure smooth operation.

In packaging machinery, functions include pressing cartridges, pushing stacks, compressing seals, and managing heavy load stops as well as limit controls for conveyor lines to maintain product integrity and workflow.

Stamping auxiliary equipment is responsible for handling sheet feeding, blocking the sides of molds, and operating ejection actuators specifically designed for small stamped parts, enhancing precision in the stamping process.

New energy lithium battery equipment encompasses operations such as clamping cell fixtures, positioning modules, and managing the pushing and shifting of pallets, which are critical for efficient battery manufacturing.

Logistic sorting machines carry out tasks like separating and pushing bins, blocking materials when necessary, and driving lifting limits to streamline sorting and handling procedures.

Plastic injection peripheral machines involve ejector pushing, positioning the sides of molds, and actuating the unloading of finished products to optimize production cycles.

Woodworking machinery utilizes panel clamping and auxiliary feeding mechanisms tailored for wood cutting applications, supporting precise and effective machining.

General automatic testing equipment includes capabilities such as clamping heavy-duty jigs, employing long-stroke limit stops, and supplying power units designed for durability and reciprocating tests.
