Product Description:

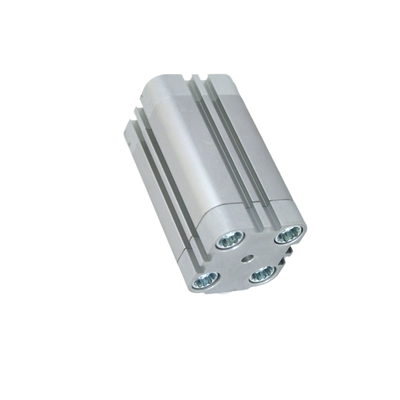

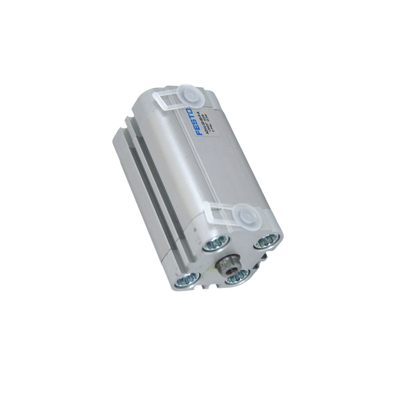

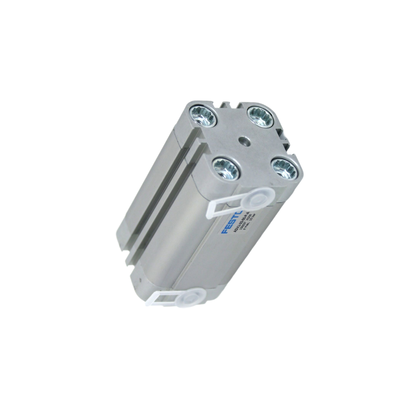

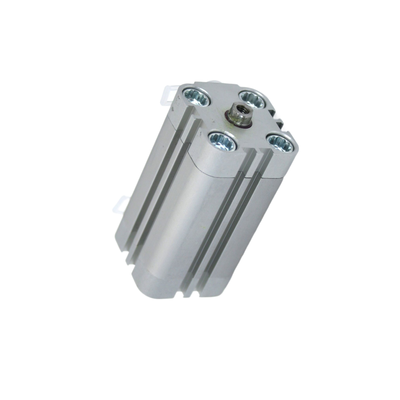

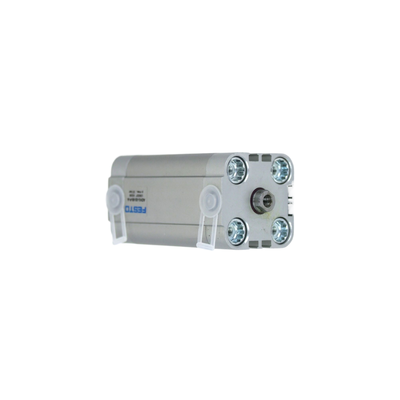

The Festo ADVU-32 series features a double-acting compact pancake pneumatic cylinder with a bore size of 32mm. It offers multiple stroke options including 30mm, 40mm, 50mm, 60mm, and 80mm to suit various application needs.
There are two main configurations available to choose from. The P-A standard version comes without a sensor slot and is designed with a piston rod that has an internal thread. On the other hand, the A-P-A sensor version includes an integrated magnetic switch slot and features a piston rod with an external thread.
Constructed with a compact square aluminum body, this cylinder delivers a strong output force while occupying minimal installation space. Its uniform mounting dimensions and interchangeable sealing parts across the entire series make it an excellent choice for medium and short-stroke automation tasks such as clamping, pushing, and precise positioning.
Below is the list of original part numbers categorized by their configurations:
-
P-A (internal thread):
156535, 156536, 156537, 156538, 156539
-
A-P-A (external thread):
156621, 156622, 156623, 156624, 156625
Features:
This product features an integrated compact square design, resulting in a shorter overall length compared to standard tie rod cylinders. This compactness significantly saves internal installation space within automation machinery.
With a 32mm large bore, it generates a powerful thrust. The double-acting design ensures stable push and pull forces, while a low-friction piston guarantees smooth, high-speed reciprocating motion without any jamming.
Two structural variants are available to meet different assembly requirements:
-
P-A model:
Comes without a magnetic sensor slot and has a piston rod with an internal thread, making it suitable for embedded stoppers and built-in tooling connectors.
-
A-P-A model:
Features an integral magnetic switch groove on the cylinder body and a piston rod with an external thread. It allows direct connection to floating joints and external fixtures and is compatible with magnetic proximity sensors.
The cylinder barrel is made from hard anodized aluminum, offering excellent wear resistance as well as oil and corrosion resistance. This ensures a long service life even under frequent, high-cycle operations.
It maintains a uniform 32mm bore with a full range of stroke options available: 30mm, 40mm, 50mm, 60mm, and 80mm. Universal mounting holes across all models facilitate easy replacement without needing to modify the equipment frame.
Equipped with standard Festo original sealing kits, this series offers interchangeable spare parts that reduce maintenance costs and simplify repairs.
The cylinder operates with standard industrial compressed air at pressures ranging from 0.2 to 1.0 MPa. It achieves piston speeds between 50 and 700 mm/s, delivering stable performance during continuous start-stop cycles.
Standard mounting holes are provided on both front and side surfaces, supporting installation in horizontal, vertical, and side orientations. This flexibility ensures compatibility with various machine layout structures.
Technical Parameters:
|
Product Series
|
Festo ADVU Compact Pneumatic Cylinder (short stroke pneumatic cylinder ADVU series)
|
|
Bore Size
|
32 mm (32mm bore high force compact air cylinder)
|
|
Operation Type
|
Double Acting (Double Acting Compact Air Cylinder)
|
|
Available Standard Strokes
|
30 mm / 40 mm / 50 mm / 60 mm / 80 mm
|
|
Operating Pressure Range
|
0.2 ~ 1.0 MPa
|
|
Ambient Temperature Range
|
-20℃ ~ +80℃
|
Applications:
Automated assembly lines involve various critical operations such as clamping heavy workpieces securely, performing high-thrust ejection, feeding materials efficiently, and managing the precise positioning and locking of fixtures. These processes ensure the smooth and reliable functioning of the assembly system.
In packaging machinery, tasks include pressing cartridges, pushing stacked items, applying sealing compression, as well as managing heavy load stops and limits on conveyor lines. These functions help maintain product integrity and streamline packaging workflows.
Stamping auxiliary equipment performs essential actions like sheet feeding, blocking on the mold side, and actuating ejections for small stamped parts. These operations support accuracy and efficiency in stamping processes.
New energy lithium battery equipment requires specialized handling such as clamping cell fixtures, positioning modules, and pushing or shifting pallets. These steps are crucial for the manufacturing and assembly of advanced battery systems.
Logistic sorting machines utilize mechanisms for separating and pushing bins, blocking materials, and driving lifting limits. These functionalities contribute to effective sorting and material handling in logistics operations.
Plastic injection peripheral machines rely on ejector pushing, mold side positioning, and actuators for unloading finished products, facilitating smooth and continuous production cycles in plastic molding.
Woodworking machinery is designed to clamp panels firmly and provide auxiliary feeding for wood cutting processes. This ensures precision and consistency in woodworking applications.
General automatic testing equipment encompasses heavy-duty jig clamping, long-stroke limit stops, and power units intended for durability reciprocating tests. These components support rigorous and reliable testing procedures across various industries.
