Ambient Temperature Range Minus 20 to Plus 80 Degrees Short Stroke Pneumatic Cylinder ADVU Series Festo ADVU Compact Pneumatic Cylinder

Product Description:

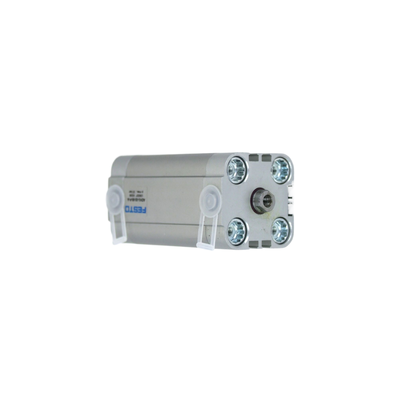

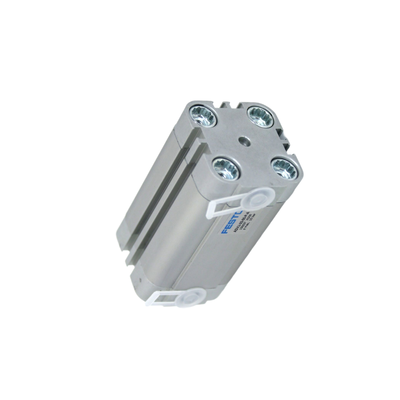

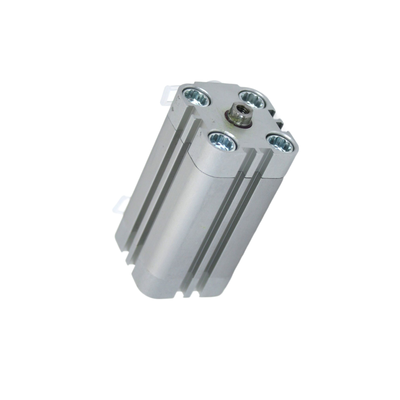

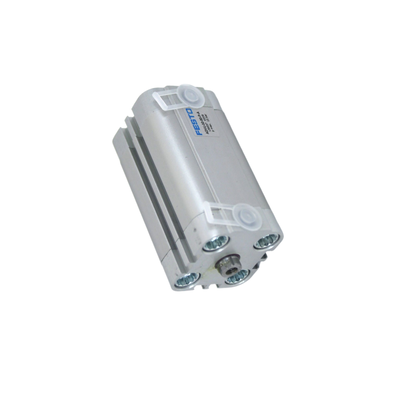

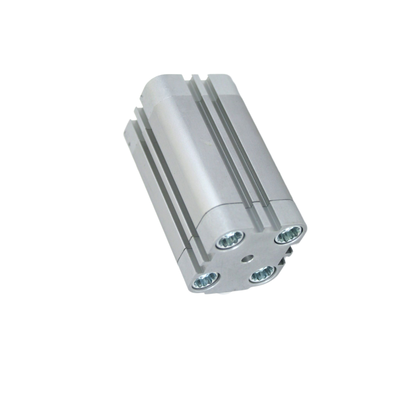

The Festo ADVU-32 series features a double-acting, compact pancake pneumatic cylinder with a bore size of 32mm. It offers multiple stroke options, including 30mm, 40mm, 50mm, 60mm, and 80mm, to suit various application requirements.

There are two main configurations available for selection. The P-A standard version comes without a sensor slot and is designed with a piston rod featuring an internal thread. On the other hand, the A-P-A sensor version includes an integrated magnetic switch slot and has a piston rod with an external thread.

This cylinder boasts a compact square aluminum body that provides a strong output force while occupying minimal installation space. Additionally, the entire series maintains uniform mounting dimensions and uses interchangeable sealing components. These features make it an ideal choice for medium to short-stroke automation tasks such as clamping, pushing, and positioning.

The original part numbers for the P-A version with internal thread are: 156535, 156536, 156537, 156538, and 156539. For the A-P-A sensor version with external thread, the part numbers are: 156621, 156622, 156623, 156624, and 156625.

Features:

The integrated design features a compact square structure that results in a shorter overall length compared to standard tie rod cylinders. This compactness significantly saves internal installation space within automation machinery, enhancing efficiency in system design.

Equipped with a 32mm large bore, the cylinder delivers powerful thrust. Its double-acting configuration provides stable push and pull forces, while the low-friction piston guarantees smooth, high-speed reciprocating movements without the risk of jamming, ensuring reliable operation.

There are two structural variants available to cater to different assembly requirements. The P-A model lacks a magnetic sensor slot and has a piston rod with an internal thread, making it suitable for embedded stoppers and integrating built-in tooling connectors. On the other hand, the A-P-A model includes an integral magnetic switch groove on the cylinder body and features a piston rod with an external thread, enabling direct connection to floating joints and external fixtures, and it is compatible with magnetic proximity sensors.

The cylinder barrel is made of hard anodized aluminum, offering excellent wear resistance, as well as oil and corrosion protection. This construction ensures a long service life even under frequent and high-cycle operation conditions.

This series maintains a consistent 32mm bore size with a full range of medium stroke options including 30mm, 40mm, 50mm, 60mm, and 80mm. Universal mounting holes are standard across all models, allowing for easy replacement without the need to modify the equipment frame, simplifying maintenance and upgrades.

Standard sealing kits from Festo are used throughout the series, ensuring interchangeable spare parts that reduce maintenance costs and facilitate straightforward repairs. The cylinders are compatible with standard industrial compressed air pressure ranging from 0.2 to 1.0 MPa, and support piston speeds between 50 and 700 mm/s, maintaining stable performance even during continuous start-stop cycles.

Lastly, the cylinders feature standard mounting holes on both the front and side surfaces, supporting horizontal, vertical, and side installation orientations. This versatility makes them compatible with various machine layout structures, accommodating diverse application needs.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance for a wide range of industrial automation applications. For technical support, please ensure you have the product model number and specifications available to help expedite your inquiry.

We provide comprehensive services including installation guidance, troubleshooting assistance, maintenance tips, and replacement part information to ensure optimal operation of your pneumatic cylinder.

Our technical support team is equipped to assist with issues such as air leakage, piston seal wear, cylinder stroke adjustments, and mounting configurations.

For maintenance, we recommend regular inspection of seals, lubrication of moving parts, and checking for any signs of corrosion or damage to extend the lifespan of the cylinder.

Replacement parts and accessories are available to keep your pneumatic system running smoothly. Please refer to the product manual for part numbers and compatibility information.

We are committed to providing timely and effective support to minimize downtime and maximize productivity in your operations.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and placed inside a custom-fitted cardboard box to prevent any movement or damage. Additional cushioning materials are added as needed depending on the size and weight of the cylinder.

The packaged product is then sealed securely and labeled with handling instructions to ensure proper care. For bulk orders, multiple units are packed in sturdy outer cartons with clear markings for easy identification.

We ship our Piston Pneumatic Cylinders via reliable courier services that provide tracking and timely delivery. Depending on the destination, products are shipped using air, sea, or land freight to ensure prompt and safe arrival.

Our packaging and shipping process is designed to maintain product integrity and provide a hassle-free experience for our customers worldwide.
