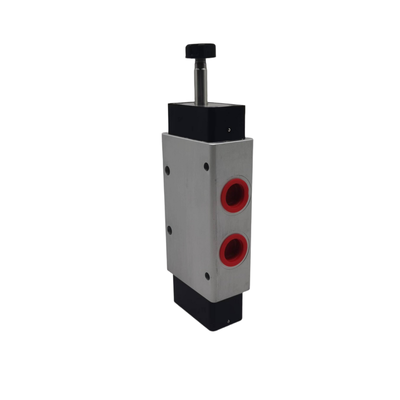

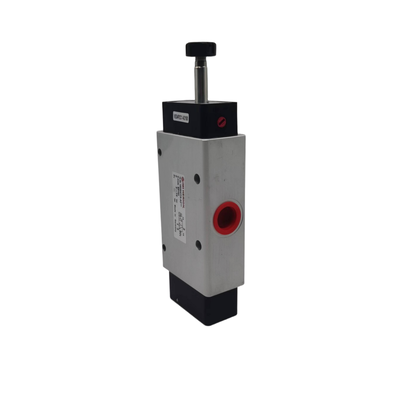

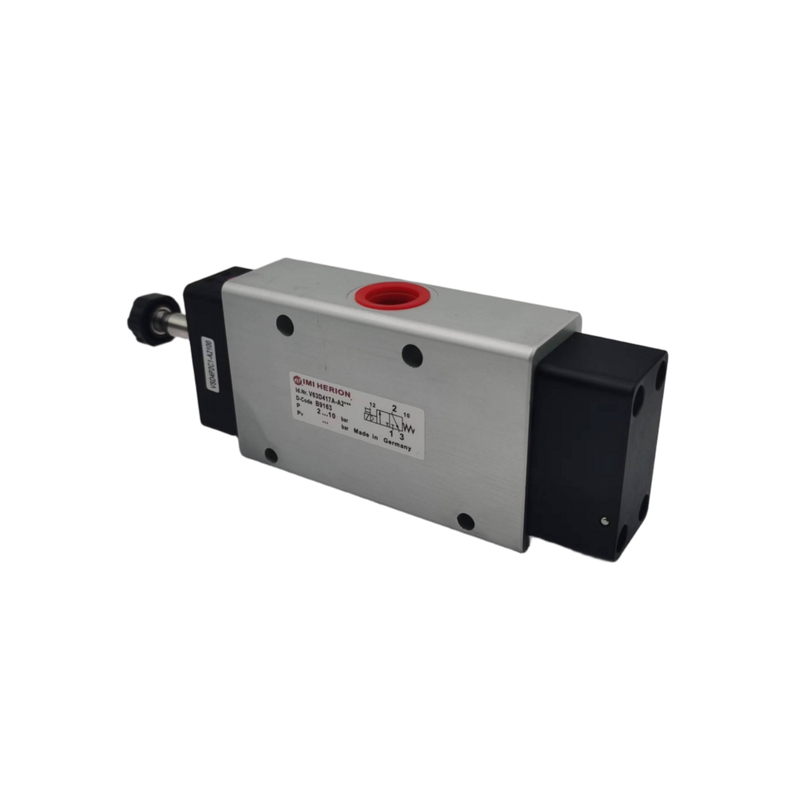

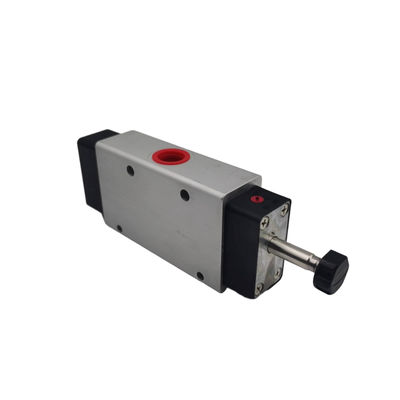

Product Description:
The Norgren V63D series comprises high-performance pilot-operated solenoid valves engineered to provide dependable fluid control in challenging industrial automation and process control scenarios. These valves come in various configurations, including 2/3-way normally closed (NC) and 2/5-way options, featuring single solenoid (spring return) actuation designed to meet diverse control needs.
To enhance flexibility in wiring and system integration, the V63D series offers multiple electrical connector choices such as A212J, A213J, A218J, and A219J. This ensures seamless compatibility with various industrial setups.
Manufactured using premium quality materials, the valves incorporate precisely engineered pilot-operated diaphragm mechanisms. This construction guarantees reliable operation across a broad pressure spectrum and makes them suitable for use with air, inert gases, and other compatible fluids. Within the series, the 2/3-way normally closed variants (D413A, D417A) and 2/5-way single solenoid models (D517A, D513A) provide high flow capacities tailored for demanding applications.
Recognized and trusted by industries globally, Norgren V63D solenoid valves deliver consistent and long-lasting performance while maintaining low power consumption and quick response times. These characteristics make them an excellent choice for rigorous automation environments where high flow rates are essential.
Features:
Pilot-Operated Diaphragm Design
The valve utilizes a pilot-operated diaphragm design, which ensures reliable performance while maintaining low power consumption. This design also contributes to fast response times, making it suitable for various dynamic applications.
Versatile Valve Configurations
It offers comprehensive valve configurations, including 2/3-way normally closed options and 2/5-way single solenoid types. This versatility allows it to meet a wide range of control requirements.
Multiple Connector Options
To facilitate flexible wiring setups, the valve is compatible with multiple connector types such as A212J, A213J, A218J, and A219J. This variety allows for easier integration into existing systems.
Single Solenoid Actuation with Spring Return
Featuring single solenoid actuation combined with a spring return mechanism, the valve provides fail-safe operation. This ensures the valve returns to its default position during power loss or system failure.
High Flow Capacity
The internal design has been optimized to maximize flow efficiency, allowing the valve to handle high flow rates effectively. This makes it ideal for demanding industrial applications where flow capacity is critical.
Wide Voltage Compatibility
Supporting a wide voltage range, the valve operates with 24V DC, 110V AC, 220V AC, and other voltages upon request. This flexibility enhances its applicability across diverse electrical environments.
Robust and Durable Construction
Constructed from high-quality materials, the valve is designed to withstand demanding environments and provide a long service life. Its durable build ensures reliable operation under harsh conditions.
Broad Pressure Range
Suitable for various industrial fluid control applications, the valve supports a wide pressure range. This capacity accommodates different operational requirements across multiple industries.
Standard G1/4 Ports
Equipped with standard G1/4 ports, the valve is compatible with common pneumatic fittings. This standardization simplifies connection and integration into existing pneumatic systems.
Certification and Safety Compliance
The valve is available in ATEX certified variants, making it suitable for use in hazardous environments. Additionally, it carries the CE mark, confirming compliance with European safety standards.
Technical Parameters:
| Function |
2/3-Way NC, 2/5-Way |
| Solenoid Type |
Single |
| Protection Class |
IP65 |
| Ports Size |
G1/4 |
| Valve Type |
Pilot-operated Diaphragm Solenoid Valve |
| Body Material |
Aluminium |
Applications:
Pneumatic actuators are widely used for the direct control of single-acting cylinders, providing precise and reliable motion in various applications. These actuators enable efficient operation by converting compressed air into mechanical movement.
In process automation, pneumatic control plays a crucial role in managing valves within chemical, pharmaceutical, and food processing industries. This ensures smooth and accurate flow regulation, maintaining optimal process conditions.
Industrial machinery often relies on pneumatic systems to control manufacturing equipment. The use of compressed air provides an efficient and clean method for powering machinery movements and enhancing production performance.
Water and wastewater treatment plants utilize pneumatic control systems to manage fluid flow effectively. These systems help regulate processes that are essential for maintaining environmental standards and ensuring safe water quality.
Within power generation facilities, pneumatic devices are employed to control steam, air, and water systems. Their reliable operation is vital for maintaining safe and efficient energy production processes.
The oil and gas industry depends on pneumatic valve actuation and fluid control to manage processing facilities safely and efficiently. Pneumatics offer robust performance in demanding environments with high safety requirements.
Packaging machinery benefits from pneumatic control systems to automate packaging lines, enhancing speed and accuracy. These controls contribute to streamlined operations and higher throughput in packaging processes.
Overall, general industrial automation leverages versatile pneumatic fluid control solutions across a wide range of industries. This adaptability underscores the importance of pneumatic technology in modern automated processes.
Customization:
The Norgren V63 solenoid valve is a high-quality pilot explosion-proof solenoid valve designed to meet diverse industrial needs. Manufactured in CHINA, this CE-certified solenoid valve ensures reliable performance and safety with a protection class of IP65.
Featuring a single solenoid type and a ports size of G1/4, the V63 model offers versatile functions including 2/3-way NC and 2/5-way configurations. Its durable aluminium body material provides excellent strength and corrosion resistance, making it suitable for demanding environments.
We provide customization services for the Norgren pilot explosion-proof solenoid valve, including options tailored to specific applications. Whether you require a standard solenoid valve or a stainless steel pilot explosion-proof solenoid valve variant, we can accommodate your needs with a minimum order quantity of 1 piece.
Packaging is handled securely in cardboard boxes to ensure safe delivery. Our supply ability reaches up to 5000 pieces per month, with a delivery time of 1-7 work days after payment. Payment terms are flexible, accepting T/T, Western Union, and PayPal.
Price is negotiable depending on order volume and customization requirements. Trust Norgren’s V63 solenoid valve for reliable, explosion-proof solutions to enhance your system’s efficiency and safety.
Support and Services:
Norgren offers comprehensive Product Technical Support and Services for their Solenoid Valve range to ensure optimal performance and customer satisfaction. Our expert team provides detailed product information, application guidance, and troubleshooting assistance to help you select and maintain the right solenoid valve for your needs.
We provide support throughout the product lifecycle, including installation advice, configuration assistance, and maintenance recommendations. Our services also include prompt repair and replacement options to minimize downtime and maximize productivity.
Norgren’s technical support is backed by extensive documentation, including datasheets, manuals, and CAD drawings, facilitating seamless integration into your systems. Additionally, we offer training sessions and workshops to equip your team with the necessary knowledge to operate and maintain Norgren solenoid valves effectively.
For any technical inquiries or service requirements related to Norgren solenoid valves, our dedicated support team is ready to assist you in achieving reliable and efficient pneumatic control solutions.
