Product Description:
Norgren air preparation systems offer comprehensive conditioning solutions for compressed air used in industrial pneumatic applications. This extensive product range features filters, pressure regulators, lubricators, and combination units designed in various body sizes. Additionally, these systems are available in modular configurations such as Olympian Plus, Excelon, and Excelon Plus, catering to diverse operational requirements.
The primary function of these components is to remove contaminants like water, oil, and solid particles from compressed air streams. They also help to maintain a consistent downstream pressure while providing precise lubrication to pneumatic tools, cylinders, and other air-powered equipment, thereby enhancing performance and longevity.
The product family supports port sizes ranging from G1/8 up to G1-1/2 and beyond. Filtration options include 5 μm, 25 μm, and 40 μm ratings, suitable for different purity needs. Construction materials feature zinc alloy and aluminium bodies, with bowls made from either polycarbonate or aluminium to suit various durability and visibility requirements.
Thanks to the modular design, users can quickly assemble custom combination units by utilizing plug-in yoke systems alongside Quikclamp connections. These systems typically operate at pressures up to 10 bar when using transparent bowls and can handle pressures up to 17 bar with metal bowls. They are also capable of functioning within an ambient temperature range of -20°C to +80°C. The range caters to multiple sizes, including miniature units (07 series), standard modular units (72/73/74 series), and large-port, high-flow units (17/18 series).
Features:
Complete Air Preparation Solution
Our air preparation system offers a comprehensive range of components including filters, regulators, lubricators, and combination units. All these elements come together in one integrated modular system, ensuring efficient and streamlined air treatment.
Modular Plug-In Design for Easy Assembly
Featuring a modular plug-in design, the system allows for quick assembly and easy maintenance. The use of plug-in yoke systems combined with Quikclamp connections enables fast installation and hassle-free servicing.
Diverse Filtration Ratings
To meet varying air quality requirements, multiple filter element ratings are available, including 5 μm, 25 μm, and 40 μm. This variety ensures the appropriate level of filtration for any application.
Wide Range of Port Sizes
Our products cover a broad spectrum of port sizes, from G1/8 up to G1-1/2 and beyond, making them suitable for different flow capacity needs.
Multiple Bowl Options
Choose between transparent polycarbonate bowls, which allow visual monitoring of fluid levels, and robust metal bowls designed to withstand higher pressure applications.
Stable Pressure Regulation
The balanced valve design reduces the impact of inlet pressure variations on the outlet pressure, providing consistent and stable regulation throughout operation.
Micro-Fog and Oil-Fog Lubrication
Our lubrication options include micro-fog models ideal for multi-point lubrication setups, as well as oil-fog models intended for single tools or devices, enhancing equipment longevity and performance.
High Flow Efficiency with Low Pressure Drop
The internal design is optimized to deliver high flow rates while minimizing pressure drops, ensuring efficient air delivery and better system performance.
Enhanced Safety Features
Safety is prioritized with features such as detent actions that prevent the removal of bowls and units while under pressure. Additionally, tamper-resistant covers are available to secure the system further.
Wide Operating Temperature Range
The system is designed to operate reliably across a broad temperature range: from -20°C to +50°C for transparent bowls, and from -20°C to +80°C for metal bowls, accommodating various environmental conditions.
Multiple Drain Options
To suit different maintenance preferences, manual, semi-automatic, and fully automatic drain options are available, ensuring efficient condensate removal.
Optional Pressure Monitoring Components
Integrated gauge ports and porting block mounted pressure switches provide comprehensive system monitoring, allowing operators to maintain optimal performance.
Large Capacity Units for High-Flow Applications
For demanding high-flow needs, the F17 and F18 series units support flow rates up to 1620 SCFM, delivering robust and reliable air preparation.
Pilot-Operated Regulators for Precision Control
The R18 series pilot-operated regulators offer exceptional precision in regulation, combined with very high relief flow, suitable for applications requiring tight control and reliability.
Technical Parameters:
| Body Materials |
Zinc Alloy, Aluminium |
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
| Drain Options |
Manual, Semi-automatic, Automatic |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Elastomers |
Nitrile Rubber, Neoprene |
| Medium |
Compressed Air Only |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
Applications:
In the realm of process control, maintaining stable pressure and ensuring a clean air supply are essential for the smooth operation of automated equipment. Reliable air quality helps achieve consistent performance and prevents downtime.
For material handling systems, dependable air preparation is crucial. This applies to conveyors, pick-and-place units, and various handling mechanisms where precise and continuous air supply supports efficient movement and positioning of materials.
The food and beverage industry demands exceptionally clean compressed air for packaging, filling, and processing machinery. Proper air treatment safeguards product quality and complies with stringent hygiene standards.
Agricultural equipment depends on well-prepared air for pneumatic controls found in tractors and implements. Effective air supply ensures reliable operation of various farm machinery components, enhancing productivity.
In industrial automation, compressed air drives cylinders, valves, and actuators that form the backbone of modern manufacturing lines. Consistent and clean air supply contributes to optimal equipment performance and longevity.
Pneumatic tools such as air screwdrivers, impact wrenches, and other air-powered instruments require proper lubrication and pressure regulation. This ensures smooth operation, minimizes wear, and extends tool lifespan.
Packaging machinery benefits from a stable air supply to operate form-fill-seal systems and labeling equipment efficiently. Consistent air pressure helps maintain precise and reliable packaging processes.
Textile machinery, including weaving, knitting, and yarn processing equipment, relies on carefully prepared air. Clean and regulated compressed air is vital for maintaining fabric quality and machine efficiency.
The automotive assembly sector uses compressed air extensively, providing an air supply to paint shops, assembly tools, and testing equipment. Proper air conditioning ensures smooth production and high-quality finishes.
Finally, in general pneumatics, any application that demands clean, regulated, and lubricated compressed air can benefit from these principles. Ensuring air quality translates to improved reliability and performance across various industries.
Customization:

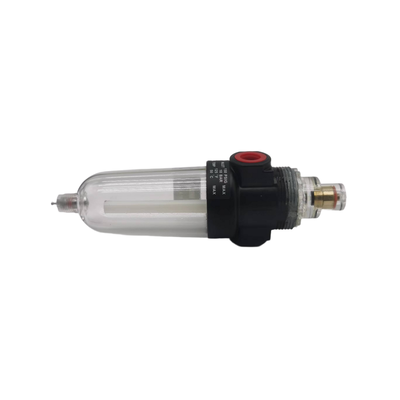

The Norgren Pneumatic Filter Regulator Lubricator, model number L07-100-MPQG, is a high-quality Pressure Reducer designed for efficient air source treatment. Manufactured in CHINA and certified with CE, this product ensures reliable performance in various industrial applications.
We offer product customization services to meet your specific needs. The body materials can be customized using Zinc Alloy or Aluminium, while the bowl materials are available in Polycarbonate (transparent) or Aluminium (metal). You can choose from different drain options including Manual, Semi-automatic, and Automatic to suit your operational requirements.
This unit is compatible with compressed air only and uses elastomers made from Nitrile Rubber or Neoprene to ensure durability and optimal sealing. As a trusted Pressure Reducer and FESTO air source treatment unit alternative, it guarantees efficient air pressure control and filtration.
We accept a minimum order quantity of 1 unit with pricing negotiable based on your order size. Packaging is done in cartons and can be customized as per client requirements. Delivery time ranges from 1 to 7 work days after payment, with flexible payment terms including T/T, Western Union, and Paypal.
With a supply ability of 5000 pieces per month, Norgren ensures timely delivery and consistent availability of this Pneumatic Filter Regulator Lubricator to support your business needs.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrugated cardboard box to ensure protection during transit. Inside the box, the product is cushioned with foam inserts to prevent any movement and potential damage. Each unit is individually wrapped in a plastic bag to protect against dust and moisture. The packaging also includes a user manual and warranty card.
Shipping: The product is shipped using reliable courier services with tracking options available. Standard shipping ensures delivery within 5-7 business days, while expedited shipping options are available for faster delivery. All shipments are carefully handled to maintain product integrity, and customers receive notification and tracking details once their order has been dispatched.
