Product Description:
Norgren air preparation systems are designed to provide comprehensive conditioning of compressed air specifically for industrial pneumatic applications. The extensive product range features essential components such as filters, pressure regulators, lubricators, and combination units. These are available in various body sizes and modular configurations, including the Olympian Plus, Excelon, and Excelon Plus series.
These components play a vital role in ensuring the efficiency and longevity of pneumatic systems by effectively removing contaminants like water, oil, and solid particles from the compressed air. Additionally, they help maintain a stable downstream pressure and supply accurate lubrication to pneumatic tools, cylinders, and other air-driven equipment.
The Norgren product family supports a wide variety of port sizes ranging from G1/8 up to G1-1/2 and even larger. It offers filtration ratings of 5 μm, 25 μm, and 40 μm to suit different operational requirements. The body materials are typically zinc alloy or aluminium, while bowls can be selected from clear polycarbonate or durable aluminium options.
Thanks to their modular design, these systems allow for quick and easy assembly of customized combination units. This is achieved through the use of plug-in yoke systems and Quikclamp connections, which streamline installation and maintenance processes. The typical operating pressure can reach up to 10 bar with transparent bowls and up to 17 bar when using metal bowls. They are also engineered to operate efficiently within an ambient temperature range of -20°C to +80°C.
The product lineup includes miniature models classified as the 07 series, standard modular units identified as the 72, 73, and 74 series, and large-port high-flow units available in the 17 and 18 series. This diversity ensures that Norgren air preparation systems can meet a broad spectrum of industrial pneumatic needs.
Features:
Complete Air Preparation Solution
Our air preparation system offers a comprehensive solution by integrating filters, regulators, lubricators, and combination units into one modular setup. This streamlined approach ensures efficient and reliable air treatment tailored to various industrial needs.
Modular Plug-In Design
Featuring a modular plug-in design, the system allows for quick assembly and easy maintenance. The plug-in yoke systems paired with Quikclamp connections enable users to configure and service the units swiftly without extensive downtime.
Versatile Filtration Options
To meet diverse air quality requirements, multiple filtration ratings are available, including 5 μm, 25 μm, and 40 μm filter elements. This variety ensures that the air is purified according to the specific needs of each application.
Wide Range of Port Sizes
The system supports a broad range of port sizes, from G1/8 up to G1-1/2 and larger. This flexibility accommodates different flow capacities, providing adaptability across various installation environments.
Multiple Bowl Options
Users can choose between transparent polycarbonate bowls, which allow for visual level monitoring, and robust metal bowls that are suitable for higher pressure applications, enhancing safety and durability.
Balanced Valve Regulation
Our balanced valve design minimizes the impact of inlet pressure fluctuations on the outlet pressure, ensuring stable and consistent regulation for reliable system performance.
Lubrication Choices
For lubrication, micro-fog models provide multi-point lubrication, whereas oil-fog models are designed to lubricate a single tool or device efficiently, covering various lubrication requirements.
High Flow Efficiency
The internal structure is optimized for high flow with low pressure drop, ensuring efficient air delivery without compromising system performance.
Safety and Durability
Safety features include a detent action mechanism that prevents the removal of bowls and units under pressure, and tamper-resistant covers are available to enhance security and operational safety.
Wide Operating Temperature Range
The system is adaptable to various environments, with transparent bowls rated for temperatures from -20°C to +50°C, and metal bowls capable of withstanding -20°C to +80°C.
Drainage Options
Multiple drain choices are provided, including manual, semi-automatic, and fully automatic drains, allowing users to select the most convenient and effective option for their setup.
Optional Monitoring Accessories
Optional pressure gauges and switches can be integrated into the system via gauge ports and porting block-mounted pressure switches, facilitating comprehensive system monitoring.
Large Capacity Units
For high-flow applications, the F17 and F18 series units offer capacities up to 1620 SCFM, meeting demanding industrial airflow requirements with ease.
Precision Pilot-Operated Regulators
The R18 series features pilot-operated regulators that deliver high-precision pressure control combined with exceptionally high relief flow, ideal for applications requiring meticulous regulation.
Technical Parameters:
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
| Drain Options |
Manual, Semi-automatic, Automatic |
| Elastomers |
Nitrile Rubber, Neoprene |
| Body Materials |
Zinc Alloy, Aluminium |
| Medium |
Compressed Air Only |
Applications:
Process Control
Ensuring stable pressure and a clean air supply is essential for automated process equipment to operate efficiently and reliably.
Material Handling
Reliable air preparation is crucial for the optimal performance of conveyors, pick-and-place units, and various handling systems used in industrial settings.
Food and Beverage Industry
The food and beverage sector depends on clean compressed air to maintain hygienic standards in packaging, filling, and processing machinery.
Agricultural Equipment
Proper air preparation supports the pneumatic controls found on tractors and farming implements, ensuring smooth and effective operation.
Industrial Automation
Manufacturing lines rely on a steady air supply to power cylinders, valves, and actuators, enabling automated workflows.
Pneumatic Tools
For air tools such as screwdrivers and impact wrenches, essential lubrication and precise pressure regulation are required to enhance performance and longevity.
Packaging Machinery
Consistent and clean air supply is vital for the operation of form-fill-seal machines and labelling equipment in packaging processes.
Textile Machinery
Air preparation plays a significant role in the functionality of weaving, knitting, and yarn processing equipment within the textile industry.
Automotive Assembly
The automotive assembly sector utilizes compressed air for paint shops, assembly tools, and testing devices to maintain production quality.
General Pneumatics
Any application that demands clean, regulated, and lubricated compressed air can benefit from proper air preparation solutions.
Customization:

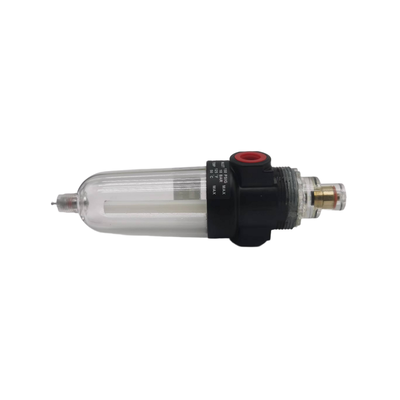

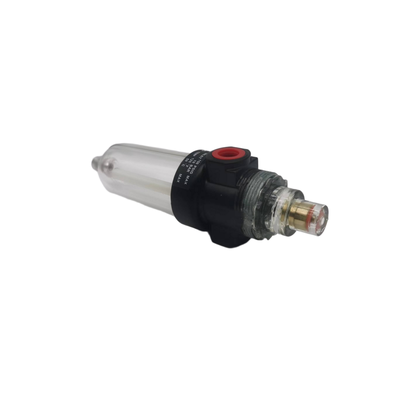

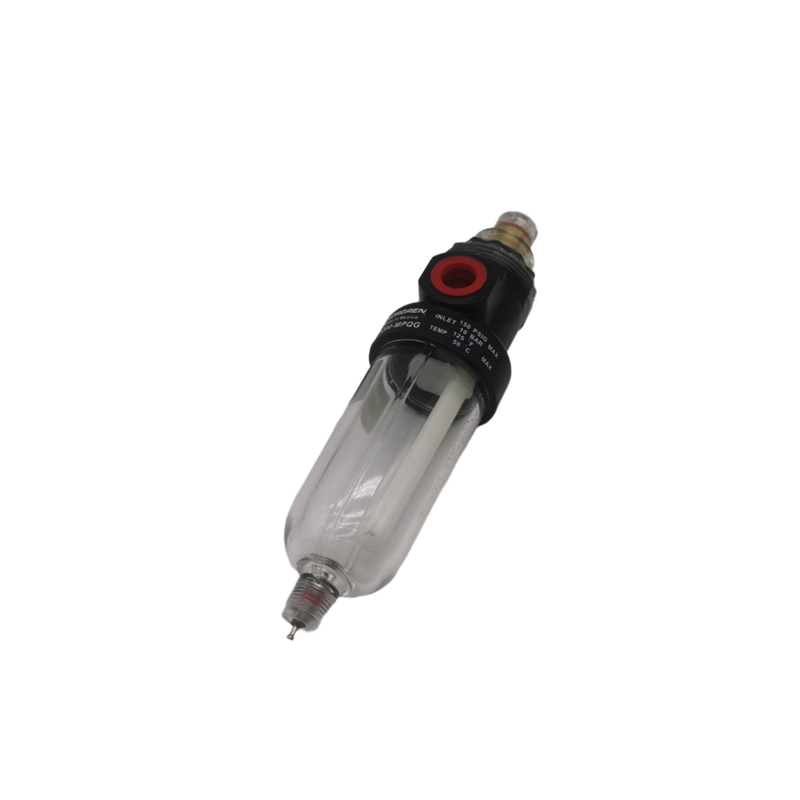

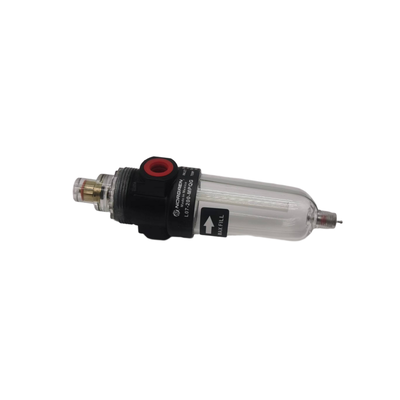

Norgren offers customizable Pneumatic Filter Regulator Lubricator products, model number L07-100-MPQG, designed to meet diverse industrial needs. Our products are manufactured in CHINA and certified with CE, ensuring high quality and reliability.
We support a minimum order quantity of 1 unit, with pricing available through negotiation to best suit your requirements. Packaging is flexible, provided in cartons or as per clients' specific requests.
With a supply ability of 5000 pieces per month, we ensure timely delivery within 1-7 working days after payment. Payment terms include T/T, Western Union, and Paypal for your convenience.
The product features a maximum inlet pressure of 10 Bar for transparent bowls and 17 Bar for metal bowls, accommodating various operational pressures. It operates effectively within an ambient temperature range of -20°C to +50°C for transparent bowls and -20°C to +80°C for metal bowls.
Our Pneumatic Filter Regulator Lubricator utilizes durable elastomers such as Nitrile Rubber and Neoprene, with bowl materials available in Polycarbonate (transparent) and Aluminium (metal) to suit different application environments. Drain options include manual, semi-automatic, and automatic, offering flexibility based on user preference.
This product is an excellent alternative to the FESTO oil mist filter and complements FESTO air source treatment units, providing efficient filtration and lubrication for pneumatic systems.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is carefully packaged to ensure protection during transit. It is securely placed in a sturdy cardboard box with custom foam inserts to prevent movement and damage. Each unit is wrapped in anti-static material to protect sensitive components. The packaging includes an instruction manual, warranty card, and necessary installation accessories.
Shipping: The product is shipped via reliable courier services with tracking options available. Standard shipping ensures delivery within 5-7 business days, while expedited shipping options are offered for faster delivery. All shipments are insured to cover any potential damage or loss during transit. International shipping is available with appropriate customs documentation provided.
