Product Description:
Norgren Air Preparation Systems
Norgren offers comprehensive air preparation systems designed to fully condition compressed air for various industrial pneumatic applications. This extensive product range features essential components such as filters, pressure regulators, lubricators, and combination units. These products come in a variety of body sizes and modular systems, including the Olympian Plus, Excelon, and Excelon Plus series.
The components effectively eliminate contaminants like water, oil, and solid particles from compressed air. They also ensure a consistent and stable downstream pressure while providing accurate lubrication to pneumatic tools, cylinders, and other air-operated devices, enhancing their performance and longevity.
Norgren’s product family supports port sizes ranging from G1/8 up to G1-1/2 and beyond. Filtration options include ratings of 5 μm, 25 μm, and 40 μm to meet different operational requirements. The bodies are available in durable zinc alloy and aluminium, with bowl materials offered in polycarbonate or aluminium to suit varying applications.
The modular architecture of these systems allows for rapid and easy assembly of customized combination units. This is facilitated by plug-in yoke systems and Quikclamp connections, enabling flexible configuration tailored to specific needs. The typical operating pressure can reach up to 10 bar when using transparent bowls, or up to 17 bar with metal bowls, with an ambient temperature tolerance between -20°C and +80°C.
The product lineup includes miniature units such as the 07 series, standard modular units encompassing the 72, 73, and 74 series, as well as large-port, high-flow units represented by the 17 and 18 series, ensuring solutions suitable for a wide range of industrial pneumatic applications.
Features:
Complete Air Preparation Solution
Our system offers a comprehensive solution for air preparation, incorporating filters, regulators, lubricators, and combination units within one integrated modular framework. This design ensures seamless compatibility and efficient performance across all components.
Modular Plug-In Design
The plug-in yoke systems and Quikclamp connections allow for rapid assembly and straightforward maintenance. This modular approach simplifies installation and reduces downtime, making the system highly user-friendly.
Variety of Filtration Options
We provide multiple filtration ratings including 5 μm, 25 μm, and 40 μm filter elements. These options cater to different air quality specifications to meet the unique demands of each application.
Wide Range of Port Sizes
To accommodate various flow capacities, port sizes range from G1/8 to G1-1/2 and beyond. This versatility ensures precise matching with your system requirements.
Multiple Bowl Selections
Transparent polycarbonate bowls are available for easy visual monitoring of fluid levels, while durable metal bowls are designed for applications requiring higher pressure tolerance.
Stable Valve Regulation
The balanced valve design minimizes the impact of inlet pressure fluctuations on the outlet pressure, providing consistent and stable regulation throughout operation.
Advanced Lubrication Options
Choose between micro-fog models tailored for multi-point lubrication and oil-fog models ideal for lubrication of single tools or devices, enhancing equipment longevity and reliability.
High Flow Efficiency
Optimized internal structures deliver high flow rates while maintaining low pressure drops, ensuring efficient air distribution in your system.
Enhanced Safety Features
Detent mechanisms prevent removal of bowls and units when under pressure, and tamper-resistant covers are available to secure the assembly against unauthorized access.
Broad Operating Temperature Range
The system supports a temperature range from -20°C to +50°C for transparent bowls and from -20°C to +80°C for metal bowls, accommodating diverse environmental conditions.
Drainage Flexibility
Manual, semi-automatic, and fully automatic drain options provide adaptable solutions for moisture removal based on specific operational needs.
Integrated Monitoring Accessories
Optional pressure gauges and switches can be incorporated via integrated gauge ports and porting block mounted pressure switches, enabling effective system monitoring and control.
High Capacity Units Available
The F17 and F18 series cater to high-flow applications, delivering capacities up to 1620 SCFM to meet demanding performance requirements.
Precision Pilot-Operated Regulators
The R18 series offers high-precision regulation combined with exceptionally high relief flow, ensuring optimal control in critical applications.
Technical Parameters:
| Medium |
Compressed Air Only |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Drain Options |
Manual, Semi-automatic, Automatic |
| Elastomers |
Nitrile Rubber, Neoprene |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
| Body Materials |
Zinc Alloy, Aluminium |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
Applications:
In the realm of process control , maintaining stable pressure and providing clean air is essential for the efficient operation of automated process equipment. Ensuring a consistent and contaminant-free air supply helps achieve optimal performance and reliability.
When it comes to material handling , dependable air preparation is crucial. This supports the smooth functioning of conveyors, pick-and-place units, and various handling systems, enabling seamless movement and sorting of materials.
The food and beverage industry demands exceptionally clean compressed air to maintain hygiene standards. This clean air is vital for packaging, filling, and processing machines, ensuring product safety and quality throughout the production line.
In agricultural equipment , properly prepared air supplies pneumatic controls for tractors and implements. This guarantees precise and reliable control of various farming operations, enhancing productivity and equipment longevity.
Industrial automation heavily relies on a steady air supply to power cylinders, valves, and actuators within manufacturing lines. This ensures accurate and efficient control of automated processes in industrial environments.
Pneumatic tools such as air tools, screwdrivers, and impact wrenches require consistent lubrication and regulated pressure. Proper air preparation extends tool life and improves operational performance.
For packaging machinery , a reliable and constant air supply is necessary. This supports equipment used for form-fill-seal operations and labelling, helping maintain speed and precision in packaging processes.
Textile machinery benefits from air preparation tailored for weaving, knitting, and yarn processing equipment. Clean and regulated compressed air helps ensure smooth production and high-quality textile outputs.
In the automotive assembly sector, compressed air supports paint shops, assembly tools, and testing equipment. A consistent air supply aids in maintaining productivity and quality across automotive manufacturing operations.
Overall, general pneumatics covers any application that requires compressed air to be clean, regulated, and lubricated. This versatility makes compressed air essential across numerous industries and applications.
Customization:

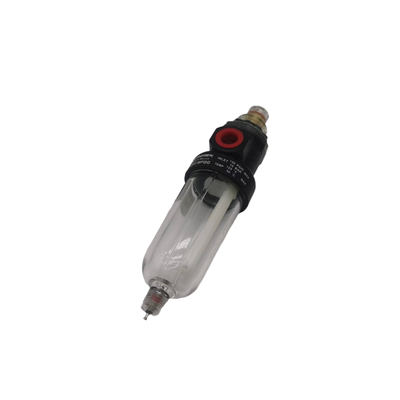

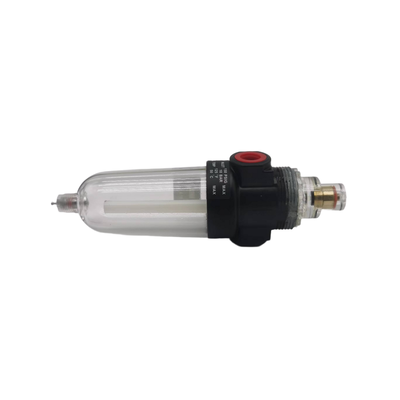

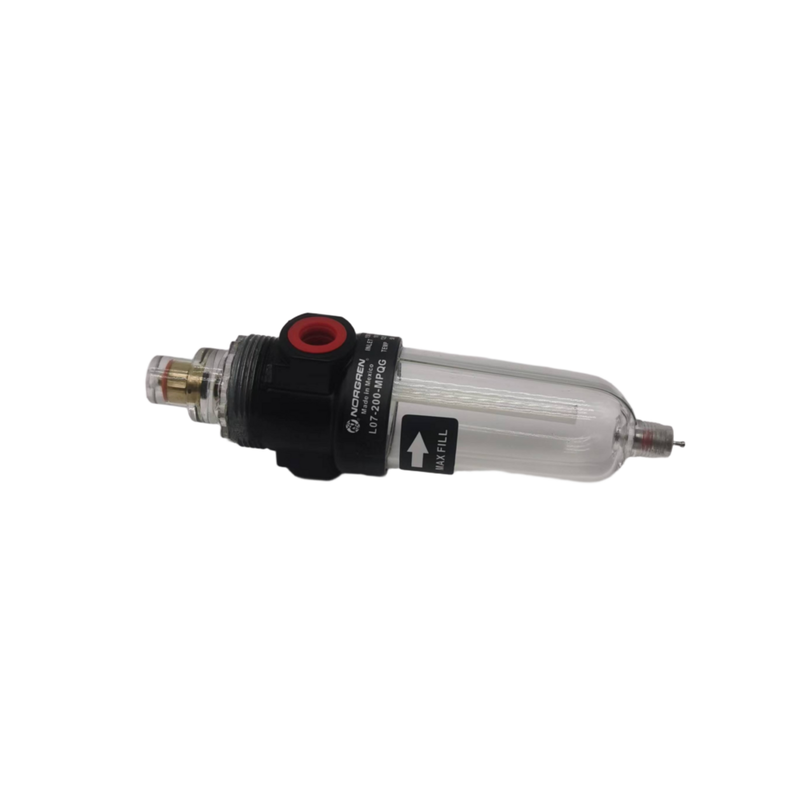

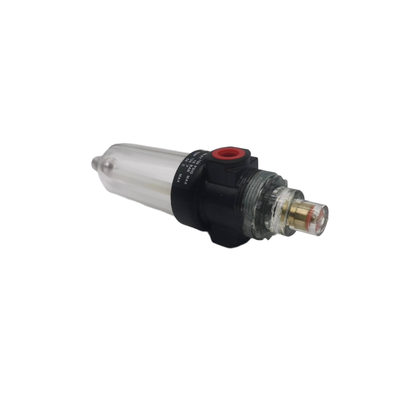

Introducing the Norgren Pneumatic Filter Regulator Lubricator, model number L07-100-MPQG, a reliable pressure reducing air source processor designed to optimize your compressed air systems. Manufactured in China and certified with CE, this product ensures quality and performance for various industrial applications.
Our Pneumatic Filter Regulator Lubricator features a robust body made from zinc alloy and aluminium, providing durability and long-lasting service. The bowl materials are available in polycarbonate (transparent) for easy visual inspection or aluminium (metal) for enhanced strength. It operates efficiently within an ambient temperature range of -20°C to +50°C for the transparent bowl and -20°C to +80°C for the metal bowl.
Designed to handle compressed air only, this unit supports a maximum inlet pressure of 10 Bar with the transparent bowl and 17 Bar with the metal bowl, ensuring optimal regulation and filtration. This product is an excellent alternative to the FESTO oil mist filter, providing effective lubrication and air treatment to maintain your pneumatic tools and equipment.
We offer flexible packaging options, including carton packaging or as per client requirements, with a supply ability of 5000 pieces per month. The minimum order quantity is 1 unit, and pricing is negotiable to meet your budget needs. Delivery time ranges from 1 to 7 working days after payment, with payment terms including T/T, Western Union, and Paypal.
Choose the Norgren L07-100-MPQG Pneumatic Filter Regulator Lubricator for a high-quality, efficient, and customizable solution to your compressed air system needs, comparable to the reliable FESTO oil mist filter.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrosion-resistant cardboard box to ensure protection during transit. Inside, the product is cushioned with foam inserts to prevent any damage from shocks or vibrations. Each unit is individually wrapped in anti-static plastic to protect against moisture and dust. The packaging also includes a user manual, installation guide, and warranty information.
Shipping: The product is shipped via reliable courier services with tracking capabilities to ensure timely and safe delivery. Depending on the destination, shipping options include standard ground, expedited, and express air freight. All shipments are carefully labeled with handling instructions and include necessary customs documentation for international orders. We prioritize secure packaging and prompt dispatch to guarantee customer satisfaction.
