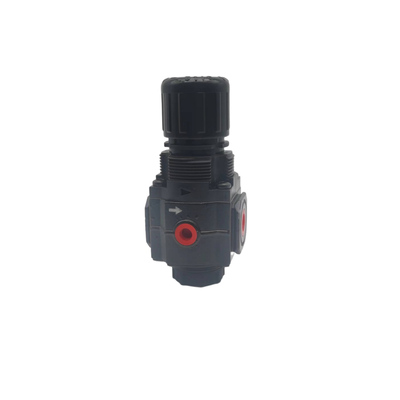

Product Description:
The Norgren pressure regulator series delivers accurate and dependable control of compressed air pressure throughout various industrial pneumatic systems. This comprehensive product lineup includes several options such as miniature regulators from the R07 series, modular Excelon regulators encompassing the R72G, R73G, and R74G series, large-port inline regulators found in the R17 series, and pilot-operated high-flow regulators from the R18 series. These regulators are engineered to maintain a consistent downstream pressure, regardless of fluctuations in inlet pressure or changes in flow demand. This stability helps protect sensitive pneumatic equipment and ensures steady process performance.
Specifically, the R07 series miniature regulators are tailored for compact installation spaces. They feature a zinc body paired with an acetal bonnet, along with a low-torque, non-rising adjusting knob that includes a snap-action lock for precise setting retention. Meanwhile, the Excelon R72G, R73G, and R74G series utilize a balanced valve design that significantly reduces the impact of inlet pressure changes on the outlet pressure. These regulators are versatile; they can either be installed inline or integrated into a modular Excelon air preparation system using convenient Quickclamp connections.
For applications requiring higher flow rates, the R17 series large-port inline regulators are available. They support port sizes up to G1-1/2 and can handle flow rates reaching up to 441 SCFM. The pilot-operated R18 series regulators are intended for systems where pressure regulation is needed at difficult-to-access locations. With the pilot regulator installed remotely, these units provide exceptionally high relief flow, making them ideal for specialized pneumatic setups.
All models within the Norgren regulator range are compatible with compressed air, argon, and nitrogen gases. They accommodate maximum inlet pressures of up to 31 bar (450 psi), depending on the specific model. Furthermore, their relieving design feature enables a controlled reduction of downstream pressure in scenarios where the system becomes dead-ended, enhancing safety and operational efficiency.
Features:
Comprehensive Sizes and Flexible Options
Our product line offers a complete range of sizes, from the miniature G1/8 (R07) to the large port G2 (R18). This wide selection ensures compatibility with virtually any pneumatic system requirement, providing solutions for both compact and high-capacity applications.
Innovative Valve Design for Optimal Performance
The balanced valve design featured in the R72G, R73G, and R74G series significantly minimizes the impact of inlet pressure fluctuations on the outlet pressure. This results in stable and consistent regulation, enhancing the reliability of your pneumatic system.
Safe and Controlled Pressure Management
Equipped with relieving operation, these valves allow the reduction of downstream pressure even when the system is dead-ended. This safety feature provides a controlled method for pressure release, helping to avoid potential system damage.
Modular Excelon System for Convenience
The R72G, R73G, and R74G regulators can be easily connected to various components such as filters, oilers, soft-start valves, and pipe adapters using Quickclamp connections. This modular setup facilitates quick assembly and maintenance.
Compact and User-Friendly Design
The R07 series stands out with its miniature design, featuring a compact zinc body paired with an acetal bonnet, ideal for installations with limited space. Both the R07 and Excelon series include a low torque, non-rising adjusting knob with a snap-action that locks the pressure setting securely when pushed in.
Ease of Maintenance and Advanced Features
Maintenance is straightforward thanks to tool-free disassembly, enabling servicing without removing the valve from the air line. Additionally, the R18 series offers a pilot-operated option for pressure regulation in inaccessible locations through remote pilot installation.
High Flow Capacities and Wide Operating Ranges
The R18 series provides exceptionally high relief flow for rapid downstream pressure reduction, with flow rates reaching up to 2000 SCFM. Meanwhile, the R17 series supports flow rates up to 441 SCFM. Pressure ranges vary from 0.16 bar up to 17 bar depending on the model, accommodating diverse system requirements.
Durability and Material Options
These valves are available in multiple body materials, including zinc (R07, R72G) and aluminium (R73G, R74G, R17, R18), ensuring durability and corrosion resistance. Standard nitrile (NBR) elastomers are used for reliable sealing performance with compressed air and inert gases.
Monitoring and Gauging Capabilities
Full flow gauge ports allow pressure monitoring without impeding airflow. Depending on the model, optional pressure gauges can be included or omitted to suit specific application needs.
Technical Parameters:
| Max Inlet Pressure |
20 Bar (290 Psi) |
| Bonnet Material |
Acetal, Aluminium or Zinc |
| Media |
Compressed Air, Argon, Nitrogen |
| Gauge Port |
1/8" PTF, 1/4" PTF, 1/4" ISO G |
| Elastomers |
Nitrile Rubber (NBR) |
| Body Material |
Zinc Alloy, Aluminium, Aluminium Alloy |
Applications:
Industrial Automation
In manufacturing lines, precise pressure control is crucial for pneumatic actuators, cylinders, and valves. This ensures smooth and efficient operation across various automated processes.
Pneumatic Tools
Regulated air supply plays a key role in powering air tools such as screwdrivers, impact wrenches, and spray guns, providing consistent performance and reliability.
Packaging Machinery
Maintaining consistent air pressure is essential for equipment involved in form-fill-seal, labeling, and cartoning processes, helping to achieve high-quality packaging results.
Food and Beverage Processing
Clean and regulated air ensures that packaging and processing equipment operates hygienically and efficiently, meeting the strict standards of the food and beverage industry.
Material Handling
Effective pressure control is utilized in conveyors, pick-and-place systems, and vacuum handling equipment to guarantee smooth and precise material movement.
Textile Machinery
Air regulation is important for weaving, knitting, and yarn processing machines, allowing for consistent fabric quality and operational stability.
Automotive Assembly
Supplying regulated air to paint shops, assembly tools, and testing equipment supports the automotive assembly process by enhancing accuracy and productivity.
Remote and Inaccessible Locations
The R18 pilot-operated regulators provide reliable pressure control in areas that are difficult to access, ensuring system performance without constant manual intervention.
Multi-Pressure Systems
With Excelon modular regulators, it is possible to obtain several regulated pressures from a single air supply, offering flexibility for complex pneumatic setups.
General Pneumatics
For any application that demands precise and stable regulation of compressed air or inert gases, reliable pressure control systems are essential to maintain optimal operation.
Support and Services:
The Pneumatic Filter Regulator Lubricator (FRL) unit is designed to prepare compressed air for use in pneumatic systems by filtering, regulating, and lubricating the air flow. Proper maintenance and servicing of the FRL unit are essential to ensure optimal performance and longevity of your pneumatic equipment.
Technical Support: For technical assistance, please refer to the product manual for detailed installation, operation, and troubleshooting guidelines. Ensure that the FRL unit is installed according to the recommended flow direction and pressure specifications. If you experience any issues such as pressure drops, air leaks, or inadequate lubrication, verify that the filter element is clean and replaced if necessary, the regulator is correctly set, and the lubricator has sufficient oil.
Maintenance and Servicing: Regular maintenance is crucial for reliable operation. Check and drain the filter bowl periodically to remove accumulated water and contaminants. Replace filter elements as per the recommended intervals or when visibly dirty. Adjust the regulator to maintain the desired outlet pressure. Refill the lubricator with the appropriate pneumatic oil to ensure proper lubrication of downstream components. Use only manufacturer-approved replacement parts to maintain system integrity.
Safety Precautions: Always depressurize the system before performing any maintenance on the FRL unit. Wear appropriate personal protective equipment and follow standard safety procedures to avoid injury or equipment damage.
By adhering to these technical support and maintenance guidelines, you can maximize the efficiency and durability of your Pneumatic Filter Regulator Lubricator unit.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged using high-quality, durable materials to ensure protection during transit. Each unit is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The packaging includes clear labeling with product specifications, handling instructions, and safety warnings to facilitate easy identification and safe handling.
Shipping: We offer reliable shipping options to deliver the Pneumatic Filter Regulator Lubricator safely and promptly to your location. Products are shipped via trusted carriers with tracking information provided for each order. We ensure that all shipments comply with international shipping regulations and are handled with care to prevent damage. Expedited shipping options are available for urgent orders.
