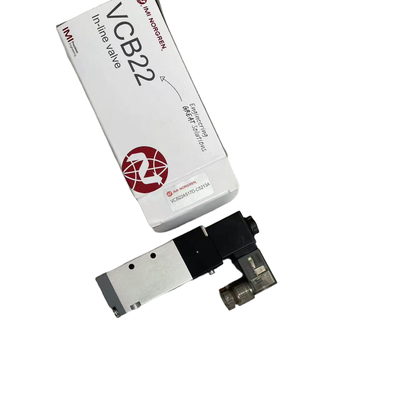

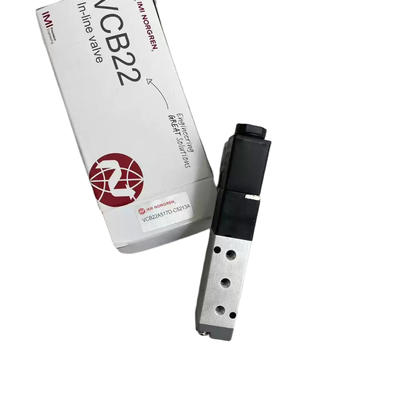

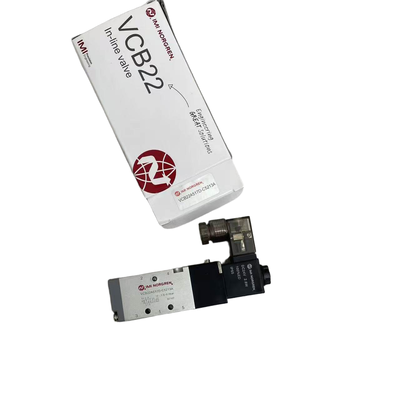

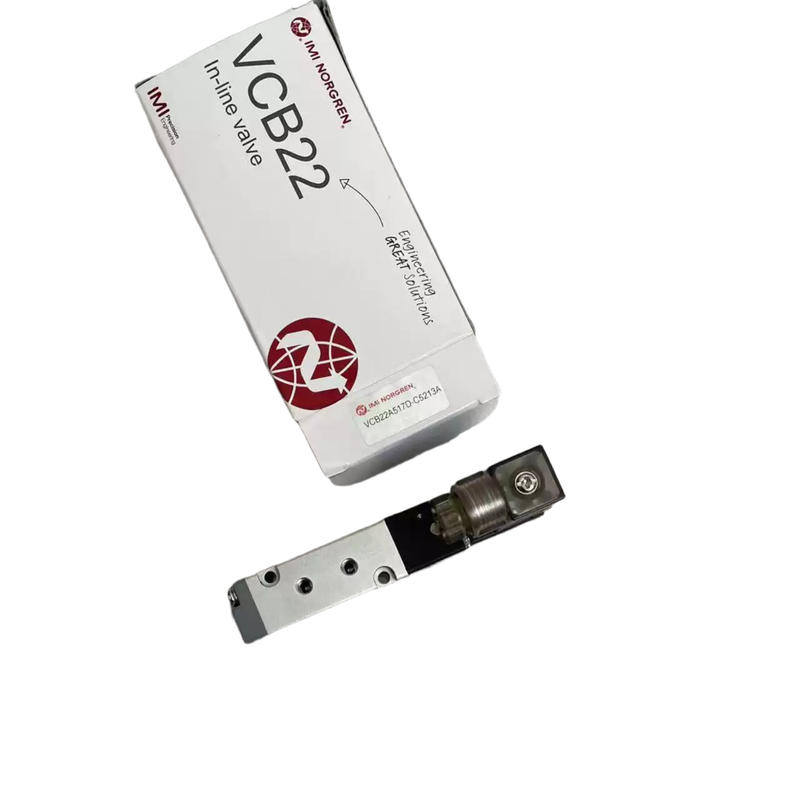

M5 Mini Port Solenoid Valve IMI Norgren VCB22A517D-C5213A 24VDC 5/2 Pneumatic Directional Valve for Precision Electronics Compact Size with LED Indicator

The IMI Norgren VCB22 Series represents a high-performance solenoid-operated spool valve designed to deliver precise directional control. This series offers versatile configurations including 3/2, 5/2, and 5/3 valve functions, making it suitable for an extensive range of industrial pneumatic automation tasks.

Encased in a compact aluminum housing, the VCB22 valves come equipped with standard LED indicator lights for easy status monitoring. They incorporate an internal pilot air supply and support flow rates varying from 245 up to 3350 liters per minute. Such features ensure that the VCB22 series can meet pneumatic circuit demands from small-scale applications to those requiring high flow capacities.

The series is available in four different valve widths—18mm, 22mm, 27mm, and 34mm—offering a variety of port sizes including M5, G1/8, G1/4, G3/8, and G1/2. Additionally, NAMUR mounting options are provided. A sub-base system supports easy manifold assembly and simplifies maintenance processes.

Owing to its flexibility and robust design, the VCB22 series finds broad application across multiple industries. It is commonly employed in packaging machinery, automotive production, food and beverage processing, textile manufacturing, chemical industries, as well as general industrial automation systems.

Experience reliable performance with Genuine IMI Norgren industrial solenoid valves, a trusted name known for superior quality. These valves cater to a variety of applications, offering dependable operation and precision control in demanding industrial environments.

The valves come in multiple directional control configurations, including 3/2, 5/2, and 5/3 options. This range ensures flexibility to meet diverse pneumatic system requirements. Additionally, there are four valve widths available—18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D)—allowing for adaptable installation in different system sizes.

Porting options are comprehensive to suit various connection needs, featuring M5, G1/8, G1/4, G3/8, G1/2 , as well as NAMUR G1/4 and G3/8 . These options enable seamless integration with existing pneumatic setups. The valves also provide high flow capacities , ranging from 245 up to 3350 liters per minute at 6 bar inlet pressure with a 1 bar pressure drop, ensuring efficient system performance.

For user convenience, each valve includes an LED indicator light as standard to visibly show power status. Maintenance and commissioning are simplified through a push and turn to lock manual override mechanism. This feature enables easy manual operation when needed.

Designed for continuous industrial use, these solenoid valves boast a 100% duty rating , allowing for long-duration operation without risk of overheating. The robust construction is complemented by an IP65 protection class , making the valves resistant to dust and water ingress, perfect for harsh environments. The lightweight yet durable aluminum housing ensures longevity and ease of handling.

Sealing is accomplished using NBR seals , optimized for compressed air service. The sub-base mounting system simplifies piping tasks and supports manifold assemblies, enhancing installation flexibility. The valves operate with an internal pilot air supply , eliminating the need for any external pilot devices.

Electrical characteristics include a voltage tolerance of ±10% , accommodating typical industrial power fluctuations. Customers can choose between single solenoid (spring return) or double solenoid models depending on their actuation preferences. For 5/3 valve models, three center functions are offered: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , providing versatility to suit various control strategies.
