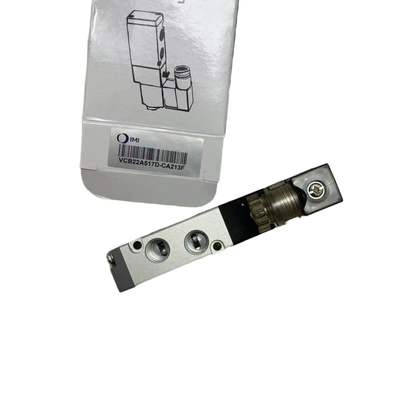

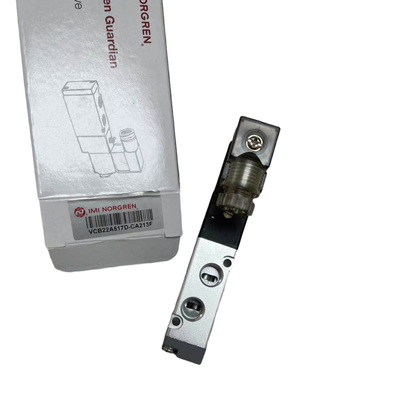

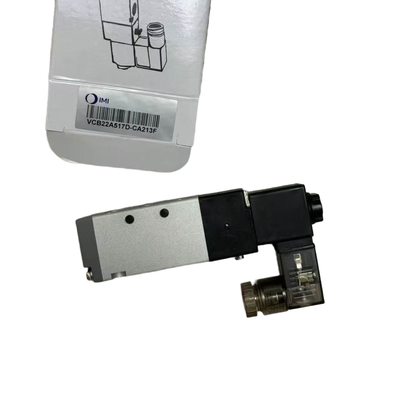

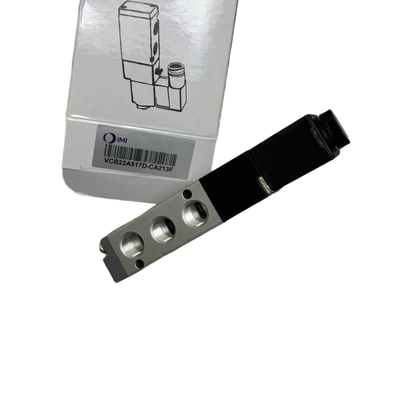

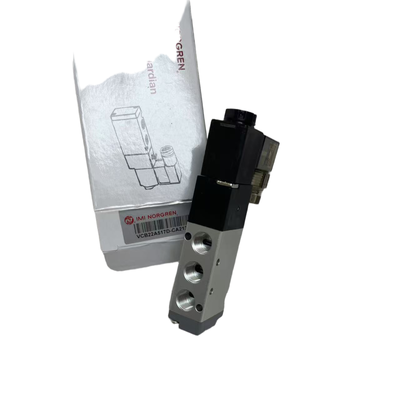

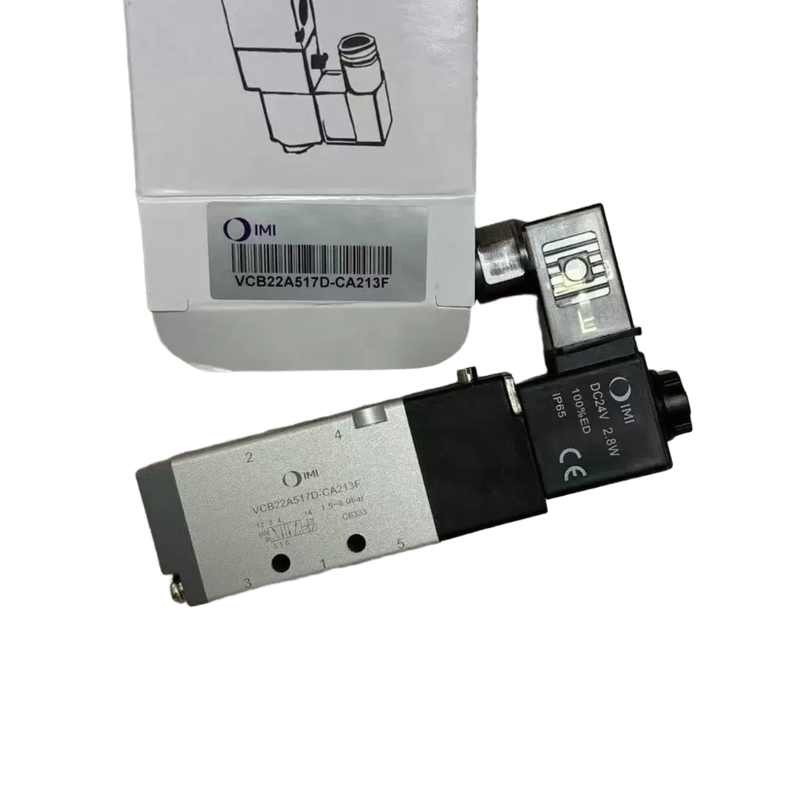

Product Description:
The IMI Norgren VCB22 Series represents a versatile line of high-performance solenoid actuated spool valves. Designed to provide 3/2, 5/2, and 5/3 directional control functionalities, these valves cater to a broad spectrum of industrial pneumatic automation needs. Encased in a compact aluminum body, the series incorporates standard LED indicator lights and an internal pilot air supply, ensuring reliable operation. It supports flow rates ranging from 245 up to 3350 liters per minute, making it suitable for applications that demand everything from small-scale to high-flow pneumatic control.
This series is offered in four different valve widths: 18mm, 22mm, 27mm, and 34mm. Port sizes vary from M5, G1/8, G1/4, G3/8 to G1/2, allowing for flexible integration based on specific system requirements. Additionally, the inclusion of NAMUR mounting options facilitates compatibility with a wide range of actuator designs. The VCB22 valves feature a sub-base system that simplifies manifold assembly and eases maintenance procedures, enhancing overall system efficiency.
Thanks to their robust design and flexibility, the VCB22 Series valves have found widespread use across multiple industries. Common applications include packaging machinery, automotive manufacturing, food and beverage production, textile machinery, chemical processing, and general industrial automation. Their ability to meet diverse pneumatic circuit demands makes them a reliable choice for enhancing operational control and efficiency in various industrial environments.
Features:
IMI Norgren Industrial Solenoid Valves
These are authentic IMI Norgren solenoid valves, renowned for their reliable brand quality in industrial applications. They come in various directional control configurations including 3/2, 5/2, and 5/3 types to suit a wide range of system requirements.
The valves are offered in four distinct sizes to match different installation needs: 18mm (Type A), 22mm (Type B), 27mm (Type C), and 34mm (Type D). Additionally, users can choose from a variety of port options such as M5, G1/8, G1/4, G3/8, and G1/2, along with NAMUR standards G1/4 and G3/8.
With a high flow capacity ranging from 245 to 3350 liters per minute at 6 bar inlet pressure and a 1 bar pressure drop, these valves ensure efficient fluid control. An LED indicator light is integrated as standard to clearly display power status for ease of operation.
The valves feature a convenient push and turn manual override that allows simple locking during commissioning or maintenance. Designed for continuous operation, they have a 100% duty cycle rating , making them suitable for prolonged usage in demanding environments.
Protection against harsh conditions is provided by an IP65 rated enclosure , combined with a robust yet lightweight aluminum housing. The sealing system uses NBR seals , optimized for compressed air service to ensure reliable performance.
Installation is streamlined by a sub-base mounting system which simplifies piping and supports easy manifold assembly. These valves require internal pilot air supply eliminating the need for external pilot lines. Additionally, the devices tolerate voltage fluctuations within ±10%, adapting well to typical industrial power variations.
Available options include single solenoid valves with spring return as well as double solenoid configurations . For the 5/3 valve type, three center functions are offered: All Ports Blocked (APB) , Center Open Exhaust (COE) , and Center Open Pressure (COP) , providing versatile control according to application demands.
Technical Parameters:
| Series |
VCB22 |
| Brand |
IMI Norgren |
| Medium |
Compressed Air, Filtered To 40 μm, Lubricated Or Non-lubricated |
| Voltage Options |
24VDC, 24VAC, 110VAC, 220VAC, 240VAC |
| Functions |
3/2 NO, 3/2 NC, 5/2, 5/3 APB, 5/3 COE, 5/3 COP |
| Ambient/Media Temperature |
-5°C To +70°C |
| Flow Rate |
245 To 3350 L/min |
| Valve Type |
Solenoid Actuated Spool Valve |
| Pilot Supply |
Internal |
| Operating Pressure |
1.5 To 8 Bar |
Applications:
The Norgren VCB22 series solenoid valves are extensively utilized across a variety of industrial sectors due to their reliable performance and versatility. These valves play a critical role in pneumatic control and automation applications.
In the packaging machinery industry, these valves are employed for pneumatic actuation control in food packaging, carton forming, as well as filling line operations. Their ability to provide precise control ensures high efficiency in packaging processes.
Within automotive manufacturing , the VCB22 series facilitates air circuit switching essential for welding fixtures, assembly line operations, and robotic workcells, contributing to streamlined production workflows.
The food and beverage sector benefits from automated control using these solenoid valves in equipment such as filling machines, labeling devices, and sorting systems, enhancing accuracy and product safety.
In textile machinery , the valves support pneumatic drives that operate looms, dyeing equipment, and fabric handling lines, helping to maintain consistent operational performance.
For the chemical and pharmaceutical industries, the VCB22 series provides pneumatic isolation in process control fluid circuits, although it is important to verify media compatibility to ensure safe and effective operation.
The electronics and semiconductor industries utilize these valves for precision pneumatic control in cleanroom equipment, printed circuit board (PCB) assembly, and inspection systems, where accuracy is paramount.
In general industrial automation , these solenoid valves offer directional control capabilities used in machine loading and unloading, conveyors, lifts, and rotary tables, supporting efficient material handling and processing.
The VCB22 series is also suitable for NAMUR applications , allowing direct mounting on pneumatic actuators such as cylinders and control valves according to the NAMUR standard, simplifying installation and maintenance.
Lastly, for manifold systems , these valves enable multi-valve centralized installation through sub-bases, which facilitates integrated piping and compact system design.
Support and Services:
Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our experienced technical team is available to assist with product selection, installation guidance, troubleshooting, and maintenance advice.
We offer detailed product documentation including datasheets, installation manuals, and maintenance guides to help users understand the specifications and proper handling of our solenoid valves. For more complex applications, our specialists can provide customized solutions and technical consultations tailored to your specific requirements.
Norgren also provides repair and refurbishment services to extend the life of your solenoid valves, minimizing downtime and supporting sustainable operations. Regular training sessions and webinars are available to keep customers up-to-date with the latest product features and industry best practices.
Our commitment to quality and service excellence ensures that you receive prompt and effective support throughout the lifecycle of your Norgren solenoid valve products.
Packing and Shipping:
The Norgren solenoid valve is carefully packaged to ensure protection during transit. Each valve is individually sealed in anti-static, moisture-resistant packaging to prevent damage and corrosion. The product is then placed in a sturdy, cushioned box designed to absorb shocks and vibrations.
For larger orders, multiple units are securely packed in reinforced cartons with additional padding to maintain product integrity. All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth delivery.
Shipping is carried out through reliable carriers with tracking options available to monitor the shipment status. Special care is taken to comply with international shipping regulations, ensuring timely and safe delivery of the Norgren solenoid valve to customers worldwide.
