Airtac 4V410-15 Large Flow Sliding Spool Air Control Valve Aluminum Alloy Body No Lubrication Required Manual Override For Heavy Duty Cylinder Drive Circuit

Product Description:

The 4V series offers a comprehensive selection of pilot-operated 5/2-way pneumatic solenoid valves. This range includes individual replacement coils as well as pre-assembled multi-station manifold kits, all designed to ensure dependable directional control of compressed air in industrial automation applications. Valve port sizes vary from 1/8″ up to 1/2″, with flow capacities (Cv) ranging from approximately 0.56 to 2.80. This variety accommodates different actuator sizes and speed requirements efficiently.

The valves are available in several configurations: complete single or double solenoid assemblies, valve bodies only for manifold integration or replacements, and individual replacement coils in AC220V or DC24V for on-site servicing. Multi-station manifold kits come pre-arranged with 2 to 10 stations for models such as the 4V210-08 and 4V110-06. Additionally, specific kits are offered for the 4V310-08 and 4V310-10 series. The manifold design centralizes the P (inlet) and R/S (exhaust) ports, significantly reducing external fittings and cutting down potential leak points by more than 70% compared to piping each valve individually. Furthermore, independent station wiring enables the combination of AC and DC voltages on one manifold block, enhancing flexibility for systems integrating PLC controls and manual safety switches.

Constructed from aluminum alloy, the valve body features a sliding column structure that delivers a sensitive response with minimal friction. These valves do not require oil lubrication; however, if lubricated air is used, it must be supplied continuously, with ISO VG32 or its equivalent recommended. A manual override is included as standard, allowing installation and debugging to proceed without electrical power. The coils have an IP65 rating and consume roughly 3 VA (AC) or 3 W (DC) depending on the model. The valves operate within a standard pressure range of 0.15 to 0.8 MPa (21 to 114 psi), with proof pressures falling between 1.2 and 1.5 MPa depending on the specific source.

Features:

The port sizes range from 1/8″ to 1/2″, accommodating several models including the 4V110-M5, 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15. This flexibility ensures compatibility across a wide variety of applications.

These valves utilize a 5/2-way pilot-operated directional control design, providing reliable switching capabilities for double-acting cylinders and pneumatic actuators. This makes them a dependable choice for precise pneumatic control.

Options are available for both single and double solenoids. The double solenoid variants include a memory function that helps maintain the valve's position, enhancing operational reliability in complex systems.

For situations where coils and wiring are already installed, a valve body only option is offered. This is ideal for manifold integration or as a replacement part, reducing downtime and simplifying maintenance.

Individual replacement coils come in AC220V and DC24V versions, allowing field servicing without the need to replace the entire valve assembly. This feature supports cost-effective maintenance and minimizes system interruptions.

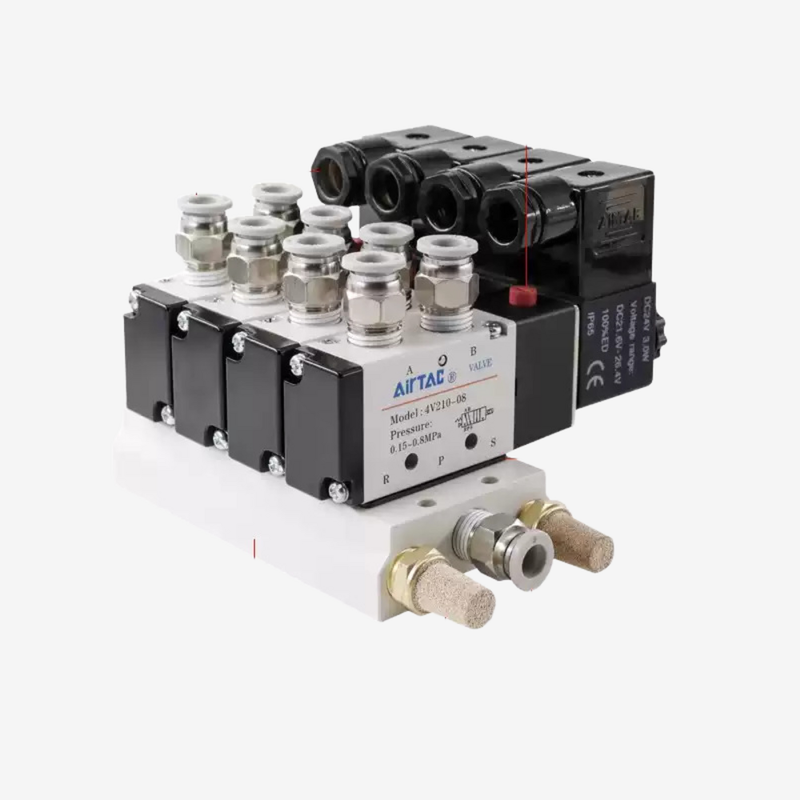

Multi-station manifold kits are available in pre-assembled configurations ranging from 2 to 10 stations for the 4V210-08 and 4V110-06 models. Additional kits for the 4V310-08 and 4V310-10 models are also offered. These kits help to reduce installation space requirements and assembly time significantly.

Centralized air logistics are achieved through unified large-diameter P and R/S ports, which reduce external fittings and potential leakage points by over 70%. This improves system reliability and lowers maintenance efforts.

The design supports voltage blending on a single manifold, as independent wiring at each station permits mixing AC and DC voltages within a compact block. This enhances flexibility in system configurations.

Modular expansion is facilitated by the use of blank plates for sealing unused stations. This allows for easy future upgrades without the need for re-plumbing the main air supply, supporting scalable system development.

Constructed from aluminum alloy, the valve body offers a lightweight yet durable solution suitable for demanding industrial environments. The sliding column structure ensures excellent sealing and a sensitive response with minimal friction.

The valves operate without the need for lubrication, simplifying maintenance and preventing oil-mist contamination, which is particularly beneficial in food processing or electronics assembly applications.

A manual override is included as a standard feature, enabling easier installation, troubleshooting, and emergency operation when necessary.

The coils are protected to an IP65 rating, making them dust-tight and resistant to water jets, suitable for use in harsh and challenging environments.

These valves operate effectively within a pressure range of 0.15 to 0.8 MPa, ensuring compatibility with a broad spectrum of industrial pneumatic systems. Additionally, their proof pressure rating of 1.2 to 1.5 MPa provides a safety margin to accommodate potential pressure surges.

Technical Parameters:

Applications:

The double-acting cylinder control utilizes a 5/2-way valve function to manage the extension and retraction of pneumatic actuators efficiently. This setup ensures precise and reliable operation in various industrial applications.

Multi-cylinder automation panels come equipped with manifold kits that centralize both the air supply and electrical wiring. This design supports the creation of compact control cabinets that can accommodate up to 10 valve stations, optimizing space and organization.

With mixed-voltage control systems, a single manifold is capable of hosting valve stations operating on different voltage levels. This includes DC 24V stations driven by PLCs as well as AC 220V manual safety stations, offering flexible integration options within the same control setup.

Directional control valves play a critical role in various sectors such as manufacturing, assembly, and packaging machinery. They enable smooth and accurate motion control essential for high-performance industrial automation.

In material handling, the control of grippers, clamps, and positioning actuators is vital. These components ensure secure handling and precise placement during different stages of production and logistics.

The use of lube-free operation technology in assembly lines for food and electronics prevents oil contamination, maintaining hygiene standards and protecting sensitive components throughout the manufacturing process.

For field maintenance and retrofit purposes, replacement options are available that include coils and valve bodies only. This targeted repair approach eliminates the need to replace the entire manifold assembly, reducing downtime and maintenance costs.

Customization:

Our AirTac 4V110-M5 pneumatic solenoid valve offers customizable solutions to meet your specific needs. As a 5/2-way pilot-operated directional control valve, it is designed for reliable performance with an operating pressure range of 0.15–0.8 MPa (21–114 Psi) and is suitable for filtered air (40 μm) applications.

We provide customization options including seal material, with the standard being NBR, and coil protection rated at IP65 to ensure durability in various environments. Each pneumatic valve is CE certified and manufactured in China, guaranteeing quality and compliance.

Our minimum order quantity is just 1 piece, with pricing available upon negotiation to accommodate your budget. Packaging is done securely in cartons to protect the solenoid valve during transit.

With a supply ability of 5000 pieces per month, we can fulfill orders promptly with a delivery time of 1-7 work days after payment. Payment terms are flexible, supporting T/T, Western Union, and Paypal for your convenience.

Choose our pneumatic valve customization services for reliable, efficient solenoid valve solutions tailored to your requirements.
