YW DKE TRADING COMPANY
 |
| Place of Origin: | China |
| Brand Name: | Mecair |
| Certification: | CE |
| Model Number: | DB120 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Diaphragm Material: | NBR/ | Heating Range: | −30°C/+200°C |
|---|---|---|---|
| NBR Heating Range: | −20°C/+80°C | Working Pressure: | 0.15~0.85MPa |
| Colour: | Black | Size: | 2 1/2" |
| Highlight: | DB120/C Typediaphragm Membrane,VNP420 Typediaphragm Membrane,3" Typediaphragm Membrane |
||
Mecair DB120 DB120/C Typediaphragm Membrane For 2.5" 3"
VNP220 VEM220 VNP420

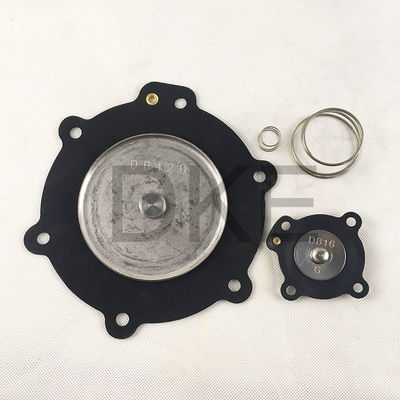

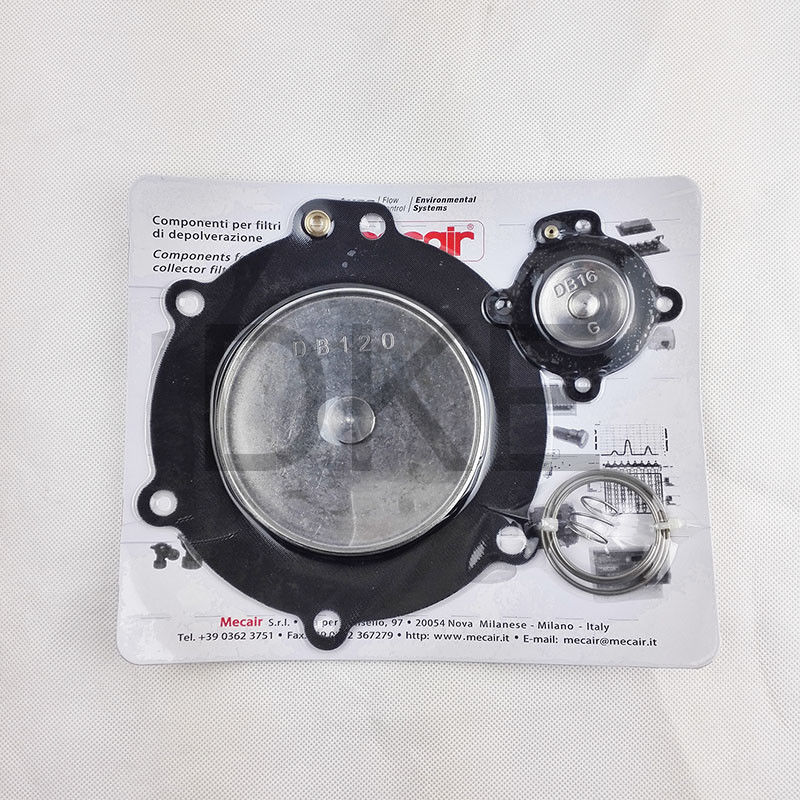

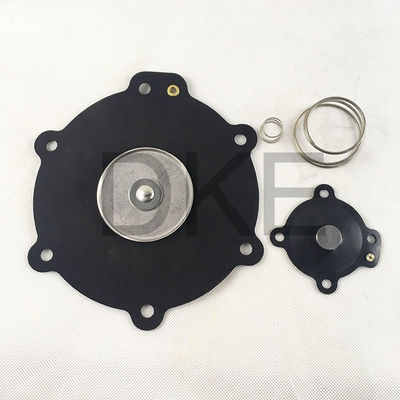

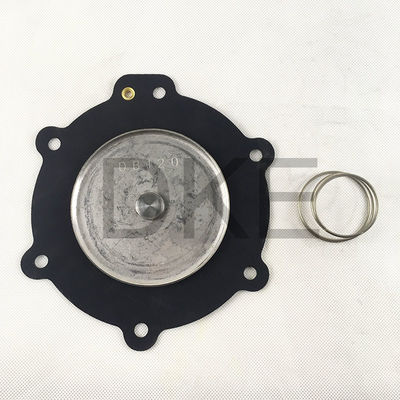

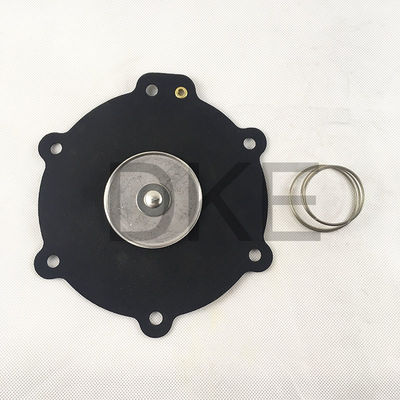

DB 120/C Mecair Type Diaphragm Valve Repair Kit
The DB 120/C + DB 16/G diaphragm repair kit is used to repair and replace Mecair 2 1/2'' VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720 Diaphragm Valves. The repair kit comes with a diaphragm assembly, and 1 spring. The diaphragms body is made of rubber, which is corrosion resistant and gives you a product with a life of about 1 million cycles. Our high-quality material increases your products efficiency by reducing energy loss.
The 200 SERIES is a range of diaphragm valve suitable for Dust collector applications,in particular for reverse pulse jet filter cleaning of filter bags cartridges envelope filters,ceramic filters and sintered metal fibre filters. The 200Series valve has the inlet port at 900 to the outlet port. The 200Series range comprises 7 models from 3/4" to 3", all with threaded female gas connections.
The 200 Series is available in the following versions:
• VNP,with integrated solenoid pilot
• VEM,with remote pneumatic connection.
| Cover | Die-cast aluminium (Anodised) |
| Body | Die-cast aluminium (Anodised) |
| Pilot Base | Brass (Chromed) |
| Pilot | Stainless Steel |
| Diaphragm | NBR |
| Bolts and screws | Stainless Steel |
| Diaphragm backing disk | Stainless Steel |
| Diaphragm spring | Stainless Steel |
Overall Dimension of DB 120/C Diaphragm Repair Kit For 2.5'' Mecair Pulse Valve:
Details of VNP/VEM220 VNP/VEM420 VNP/VEM424 Diaphragm Repair Kit:
Packing & shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
