Name: Precision Filter Elements 0030-R-003-BH3HC Metal High Fatigue Resistance
Brand: YW DKE TRADING COMPANY
SKU: 0030-R-003-BH3HC
Availability: InStock

Home Products Hydraulic Filter Element

Precision Filter Elements 0030-R-003-BH3HC Metal High Fatigue Resistance

Product Details:

Place of Origin:	China
Brand Name:	HYDAC
Certification:	CE
Model Number:	0030-R-003-BH3HC

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negociation
Packaging Details:	Carton /According To Client Requirements
Delivery Time:	1-7 Work Days After Payment
Payment Terms:	Western Union, T/T,paypal
Supply Ability:	5000 Pieces Per Month

Contact Now

Detailed Product Description

Temperature Range:	-30~100℃	Material:	Stainless Steel
Media:	Air Or Liquid	Filterability:	99%
Application:	Industrial	Connection:	Threaded
Filtration Grade:	Precision Filtration	Structure:	Cartridge Filter
Surface Treatment:	Polishing
Highlight:	Metal Precision Filter Elements , Metal HYDAC Filter Elements , High Fatigue Resistance Precision Filter Elements

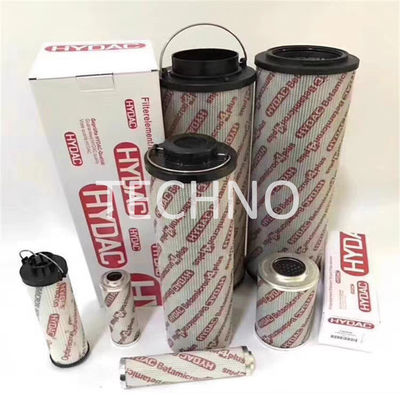

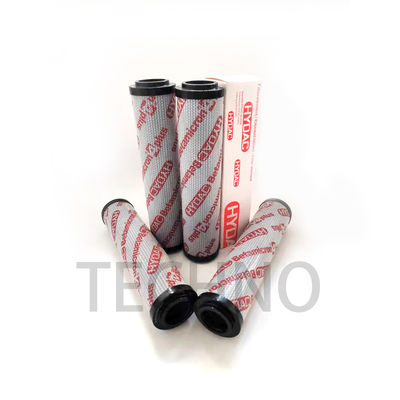

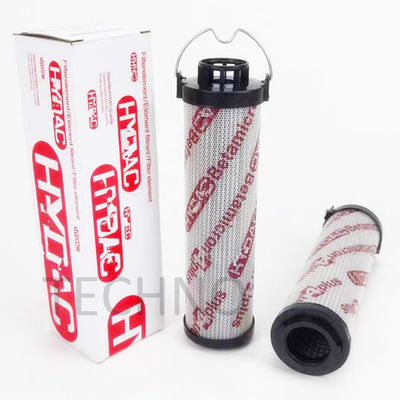

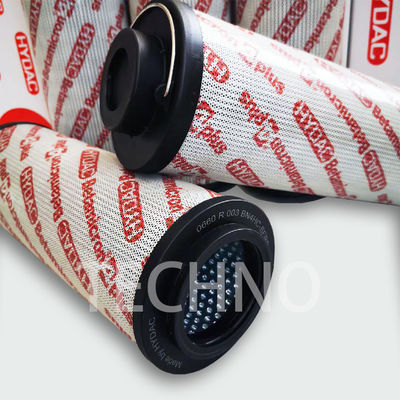

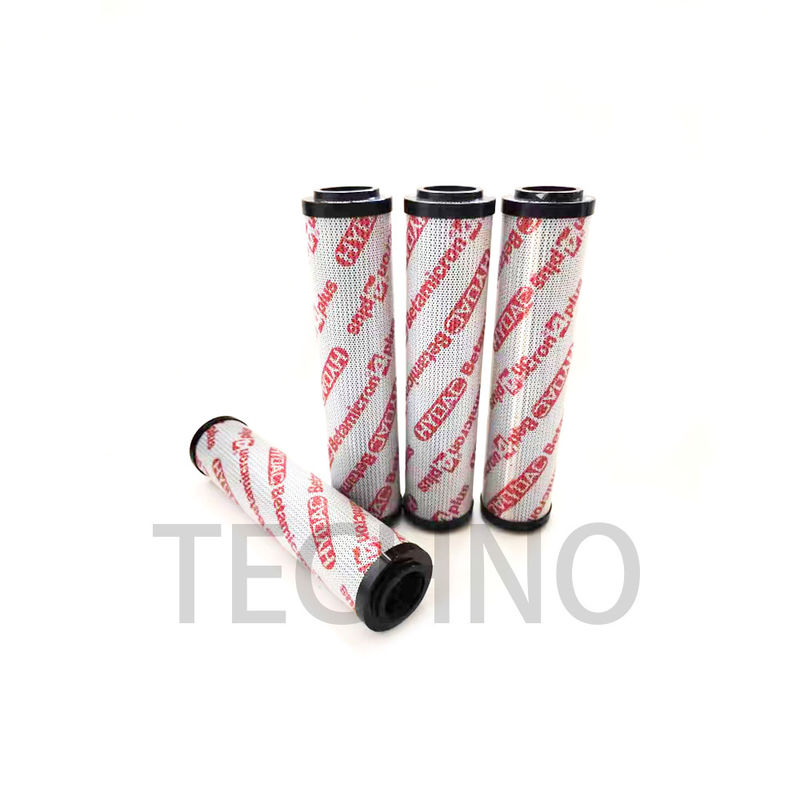

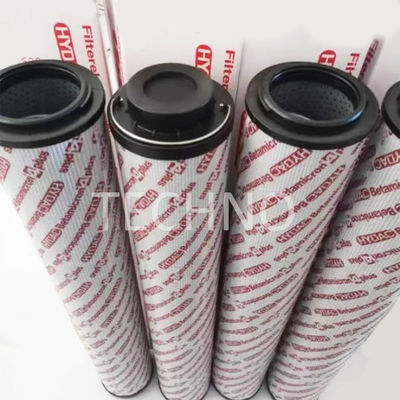

HYDAC Filter Elements 0030-R-003-BH3HC

HYDAC Filter Elements 0030-R-003-BH3HC High Fatigue Resistance Superb Adsorption Automation

With Precise Filtration

Contamination retention capacity to ISO 4572 for Betamicron® elements

BH3HC					BN3HC
Size	3 µm	5 µm	10 µm	20 µm	Size	3 µm	5 µm	10 µm	20 µm
30	2.2	2.4	2.8	3.3	30	3.9	4.1	4.7	5.2
60	3.8	4.1	4.8	5.8	60	5.3	5.7	6.4	7.1
110	8.2	8.9	10.4	12.6	110	11.1	11.9	13.3	15.4
140	10.7	11.7	13.6	16.6	140	14.6	15.6	17.6	19.5
160	11.0	12.0	14.0	17.0	160	15.0	16.0	18.0	20.0
240	18.2	19.9	23.2	28.2	240	25.8	27.5	31.0	34.4
280	40.3	44.0	51.3	62.3	280	56.5	60.3	67.8	75.3
330	28.6	31.2	36.4	44.1	330	36.9	39.4	44.3	49.2
500	47.2	51.5	60.1	72.9	500	60.7	64.8	72.9	81.0
660	62.9	68.6	80.1	97.2	660	80.4	85.7	96.4	107.2
990	91.5	99.8	116.5	141.3	990	117.3	125.1	140.7	156.4
1320	125.8	137.2	160.2	194.4	1320	160.8	171.4	192.8	214.4

Approx. filter surface area (cm²) for ...D... V, W, W/HC

Size	V	W	W/HC
30	268	256	–
60	318	330	418
110	648	672	910
140	852	884	1200
160	1082	857	1144
240	1702	1348	1911
280	3615	2862	4264
330	2260	1795	3133
500	3640	2891	5207
660	4770	3795	6958
990	–	–	10091
1320	–	–	13916

About Material

Disposable Betamicron® element based on inorganic fibre with patented seam shaping

Superb adsorption of finest particles over a wide differential pressure range
Exemplary beta value stability over a wide differential pressure range
High contamination retention capacity
Good fluid compatibility due to the use of epoxy resins for impregnation and bonding
Element protection due to high collapse burst pressure resistance
Excellent flow fatigue stability due to solid filter material supports
Filtration ratings: 3µm, 5µm, 10µm, 20µm absolute

Metal fibre element

Safeguards high filtration efficiency even at extreme dynamic loads
High contamination retention capacity due to deep filtering which results in a longer service life
High retention rate
Low flow resistance with small size
Corrosion protection due to stainless steel filter material and tin-plated steel parts
High differential pressure
Economical due to cleanability
High temperature range
Filtration ratings: 3µm, 5µm, 10µm, 20µm, nominal

Wire mesh element

High temperature range
Corrosion protection due to stainless steel filter mesh and tin-plated steel parts
Cleanable
High differential pressure
Filtration ratings: 25µm, 50µm, 100µm, 200µm nomina
