Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy < 1% of the set pressure

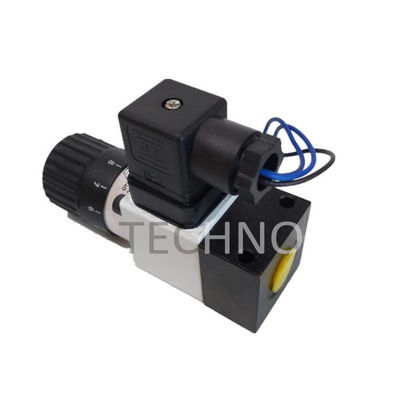

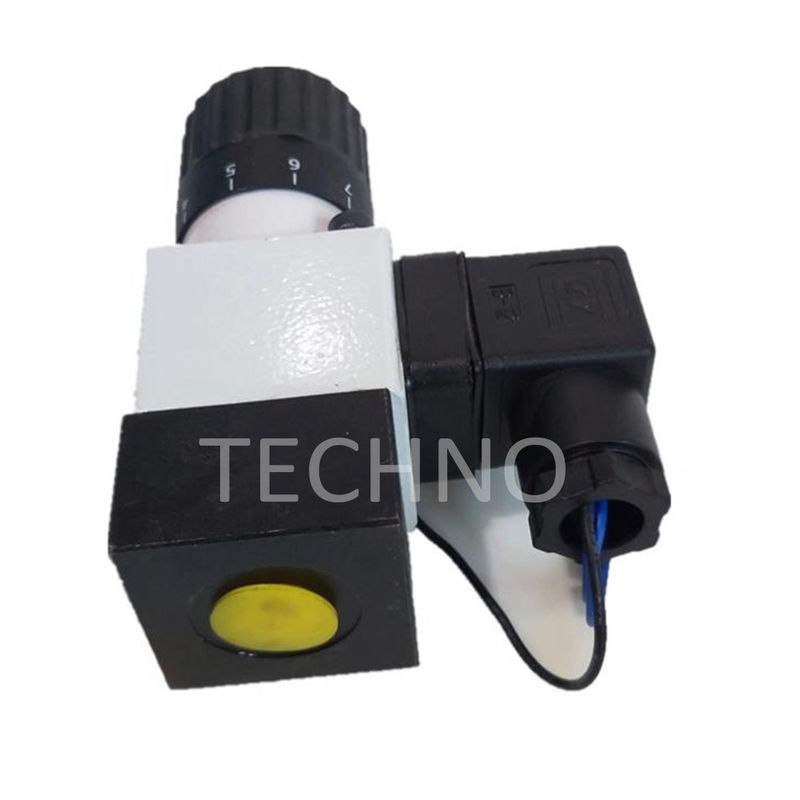

- Piston type pressure switch
- Micro switch with NC contact/NO contact function
- Subplate mounting
- Adjustment type: Spindle with internal hexagon, without scale, without protective cap
- Without mating connector, connector DIN EN 175301-803
- With NBR seals
Technical Parameters:
| Product attributes |
|
| Connection diagram |
Subplate mounting |
| Max. pressure [bar] |
350 |
| Type of connection |
Subplate mounting |
| Output signal |
Micro switch with NC contact/NO contact function |
| Supply voltage |
12 bis 250 V AC/DC |
| Electrical connector |
Connector 4-pole (3 + PE) |
| Electrical connection description |
Connector 4-pole (3 + PE) according to EN 175301-803 |
| Conformity description |
CE – according to Low-Voltage Directive 2014/35/EU |
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD |
| Seals |
NBR |
| Weight [kg] |
0.8 |
Installation instructions
For subplate mounting/pipeline installation For flange connection according to ISO 16873 As vertical stacking element in connection with sandwich plates according to ISO 4401 5 pressure ratings 4 adjustment types:– Spindle with/without protective cap– Spindle with scale, with/without protective cap– Rotary knob with scale– Lockable rotary knob with scale Electrical connection– with valve plug-in connector design A (large cubic connector)– with M12 x 1 connector Micro switch with NC/NO contact function Potential-free switching of currents from 1 mA to 2 A UL approval for pressure ranges up to 350 bar
