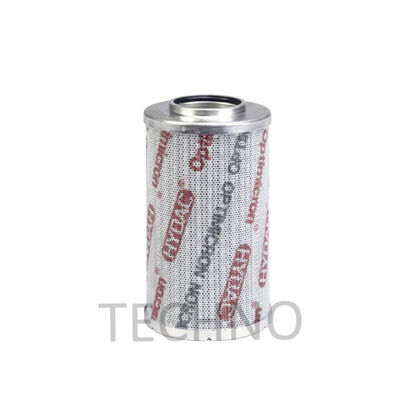

0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System

0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System

0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System
0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System
0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System
Product Details:
Place of Origin: China
Brand Name: HYDAC
Certification: CE
Model Number: 0280-D-003-BH3HC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000PCs per month
Contact Now
Detailed Product Description
Pression Difference Range: 30~200 Bar Operating Temperature: -30~100℃
Filter Element Core: Wire Mesh Filter Type: Cartridge
Filter Medium: Air Or Liquid Filter Element Diameter: 160mm
Filterability: 99.99% Filter Rating: 25 μm
Highlight:

HYDAC Filtration Precision Filter Elements

,

Wire Mesh Precision Filter Elements

,

Wire Mesh Filter Element



HYDAC Filtration System 0280-D-003-BH3HC



Filterability 99.99% Pressure Difference Range






Product Description:

Precision Filter Elements provide an accurate and reliable filtration system for air and liquid filtration, with a precision filtration mechanism that allows it to accurately remove particles down to 20μm in size. It has a wide pressure range and its filter efficiency is up to 99.99%. Its filter element end cap is a clip-on type, making installation and maintenance easy. Precision Filter Elements is the perfect choice for high-precision filtration unit






Features:

HYDAC Filter Elements are of a high quality, enabling them to safeguard the performance and service life of essential and expensive hydraulic components. The benefits include:

  1. High contamination retention capacity.
  2. The availability of both disposable elements and cleanable elements.
  3. Filtration of mineral oils, non-flam fluids and rapidly biodegradable fluids.
  4. Superb adsorption of finest particles over a wide differential pressure range.
  5. Exemplary beta value stability over a wide differential pressure range.
  6. Good fluid compatibility due to the use of epoxy resins for impregnation and bonding.
  7. Feature element protection due to high collapse burst pressure resistance (during cold startand differential pressure surges).
  8. Excellent flow fatigue stability due to solid filter material supports.
  9. Filtration ratings: 3µm, 5µm, 10µm, 20µm absolute.






Technical Parameters:

Contamination retention capacity to ISO 4572 for
Betamicron® elements
BH3HC
Size 3 µm 5 µm 10 µm 20 µm
30 2.2 2.4 2.8 3.3
60 3.8 4.1 4.8 5.8
110 8.2 8.9 10.4 12.6
140 10.7 11.7 13.6 16.6
160 11.0 12.0 14.0 17.0
240 18.2 19.9 23.2 28.2
280 40.3 44.0 51.3 62.3
330 28.6 31.2 36.4 44.1
500 47.2 51.5 60.1 72.9
660 62.9 68.6 80.1 97.2
990 91.5 99.8 116.5 141.3
1320 125.8 137.2 160.2 194.4



0280-D-003-BH3HC Precision Filter Elements Wire Mesh HYDAC Filtration System 0




Applications:

Our products feature compatibility with hydraulic media, making them suitable for use with mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils. For use with water, please reach out to our technical sales department.

Furthermore, high fatigue resistance is ensured by solid filter material supports on both sides as well as the high inherent stability of the filter materials. These qualities meet the requirements of ISO 3724.






Packing and Shipping:

Packaging and Shipping for Precision Filter Elements

Precision filter elements are packaged and shipped with the utmost care and attention to detail. We use the highest quality materials to ensure the filter elements reach their destination in pristine condition.

Each filter element is placed in a protective plastic sleeve, which is then placed in a further protective cardboard container. This ensures that the filter element will be adequately protected in transit.

We ship all filter elements via a reputable courier service, such as FedEx, UPS or DHL, and the cost of shipping is calculated based on the destination and the size and weight of the package.

We are committed to providing a safe and secure delivery service, and have stringent quality control measures in place to ensure that all filter elements arrive in perfect condition.




FAQ:

Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
