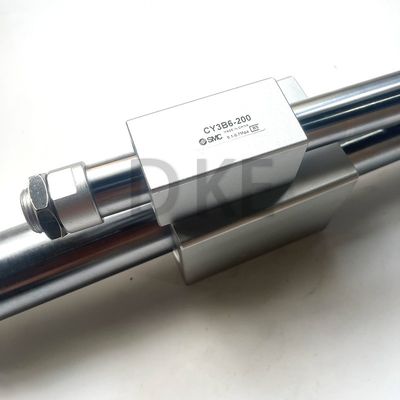

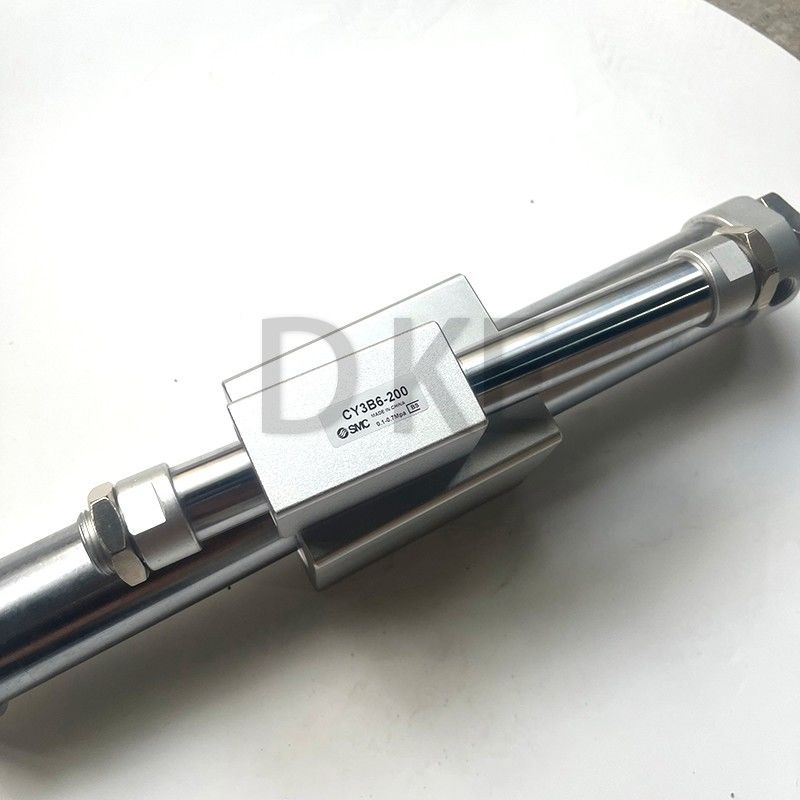

SMC Air Cylinder CY3B6-200
6mm*200mm Precision High-Strength Piston Rod
Product Description:
The SMC rodless cylinder applies industrial strength magnets in the piston and external carriage, forming a single unit which can be actuated with air pressure. The weight of the product has been significantly diminished by re-shaping the body and head cover and employing magnetic coupling.
Given that there is no leakage, the CY series can be used in different environments. Magnetically coupled cylinders have a broad array of applications, and additionally save mounting space. Furthermore, loads and moments can be achieved with the help of integrated guides. Guides of different types could be adopted to meet the accuracy required or allowable moment needed for the application.
The CY is available in sizes ranging from 6mm to 63mm with standard stroke of 1000mm. It comprises of five different models, granting great versatility. To make matters more convenient, auto switches are integrated as standard.
Technical Parameters:
| Specifications |
| Bore size [mm] |
6 |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
63 |
| Fluid |
Air |
| Proof pressure |
1.05 MPa |
| Max. operating pressure∗1 |
0.7 MPa |
| Min. operating pressure |
0.16 |
0.16 |
0.16 |
0.16 |
0.15 |
0.14 |
0.12 |
0.12 |
0.12 |
| Ambient and fluid temperatures |
−10 to 60°C (No freezing) |
| Piston speed |
50 to 500 mm/s |
| Cushion |
Rubber bumper |
| Lubrication |
Not required (Non-lube) |
| Mounting orientation |
Horizontal, Inclined, Vertical |
| Mounting nut (2 pcs.) |
Standard equipment (Accessory) |
| Magnet holding force [N] |
19.6 |
53.9 |
137 |
231 |
363 |
588 |
922 |
1471 |
2256 |
| Vertical Operation |
Bore size
[mm] |
Model |
Allowable
load mass
(Wv) [kg] |
Max. operating
pressure (Pv)
[MPa] |
| 6 |
CY3B6 |
1 |
0.55 |
| 10 |
CY3B10 |
2.7 |
0.55 |
| 15 |
CY3B15 |
7 |
0.65 |
| 20 |
CY3B20 |
11 |
0.65 |
| 25 |
CY3B25 |
18.5 |
0.65 |
| 32 |
CY3B32 |
30 |
0.65 |
| 40 |
CY3B40 |
47 |
0.65 |
| 50 |
CY3B50 |
75 |
0.65 |
| 63 |
CY3B63 |
115 |
0.65 |
