Product Details:
|
| Color: | Blue,black,orange And Clear | Weight Per 100 M (kg): | 0.94 |
|---|---|---|---|
| Tube ID (mm): | 2.5 | Working Medium: | Air |
| Temperature (℃): | -20~70 | Burst Pressure At 23℃(bar): | 35 |
| Tube Surface: | Smooth | Material: | PU |
| High Light: | Flexible Air Hose Pipe CE,Air Hose Pipe CE |
||
Air Tac US98A040025
Pneumatic PU Tube 0.94kg Per 100M Tube ID 2.5mm

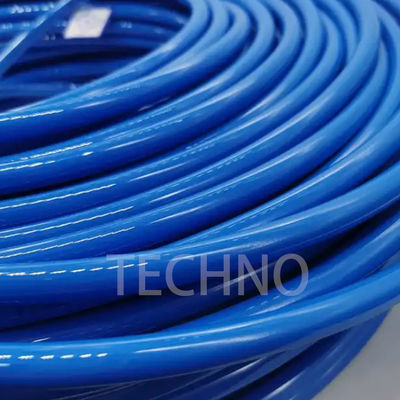

Pneumatic PU Tube is a high-quality product made of plastic polyurethane material. It features high elasticity, excellent flexibility, and superior durability. It is available in blue, black, orange and clear colors, and the tube surface is smooth. Its temperature range is -20 to 70 degrees Celsius, and its tube OD is 4.0mm. It has a burst pressure of up to 35 bar at 23 degrees Celsius. It is the perfect choice for various pneumatic applications, and its polyurethane tubing ensures high performance and reliability.
This product is made with plastic polyurethane material, which conforms to the ROHS environmental protection requirements. Its small bend radius makes it easier to pass through small spaces commonly found in homes and buildings. It is also capable of withstanding difficult environments better than other plastic tubes due to its excellent anti-knot effects. Additionally, the tube features incredible flexibility that allows it to be repeatedly expanded, while its anti-abrasion property ensures a long working life.
Furthermore, it has a great low gas permeability, meaning it is incredibly resistant to both leakage and pollution. In addition, the tube’s low solubility property ensures that it will not pollute the environment, and its low compression rate is the product of its excellent physical characteristics. Finally, this product also features reliable resistance to common compounds like chemicals, water, fuel, oil, and bacteria, so you can use it for all kinds of applications.
| Parameter | Value |
|---|---|
| Working Medium | Air |
| Package Length (m) | 200 |
| Tube OD (mm) | 4.0 |
| Burst Pressure At 23℃(bar) | 35 |
| Color | Blue,black,orange And Clear |
| Temperature (℃) | -20~70 |
| Tube ID (mm) | 2.5 |
| Weight Per 100 M (kg) | 0.94 |
| Material | PU |
| Tube Surface | Smooth |
| Special Features | Anti-knot, Anti-knot, Plastic polyurethane material, Smooth, Flexible |
| Number ① | Tube OD (mm) | Tube ID (mm) | Wall Thiknes (mm) | Package Length (m) | Working Pressure At 23℃ (bar)② | Burst Pressure At 23℃(bar) | Bend Radius (mm) | Weight Per 100 M (kg) | Temperature (℃) |
| US98A040025□□ | 4.0 | 2.5 | 0.75 | 200 | 8.0 | 35 | 10 | 0.94 | |
| US98A060040□□ | 6.0 | 4.0 | 1.00 | 200 | 7.5 | 30 | 15 | 1.93 | |
| US98A080050□□ | 8.0 | 5.0 | 1.50 | 100 | 8.0 | 35 | 20 | 3.66 | |
| US98A080055□□ | 8.0 | 5.5 | 125 | 100 | 6.0 | 24 | 20 | 3.25 | |
| US98A08 006□□ | 8.0 | 6.0 | 1.00 | 100 | 4.0 | 16 | 25 | 2.70 | -20~70 |
| US98A100065□□ | 10.0 | 6.5 | 1.75 | 100 | 8.0 | 32 | 25 | 5.44 | |
| US98A100080□□ | 10.0 | 8.0 | 1.00 | 100 | 2.5 | 10 | 40 | 3.47 | |
| US98A120080□□ | 12.0 | 8.0 | 2.00 | 100 | 7.5 | 30 | 35 | 7.56 | |
| US98A120100□□ | 12.0 | 10.0 | 1.00 | 100 | 2.0 | 8 | 60 | 4.24 | |
| US98A160120□□ | 16.0 | 12.0 | 2.00 | 100 | 7.5 | 30 | 80 | 8.32 |
Note:
①: The first square of “□□”in the type column is for ordering code "unit" and the second is for "color'. Blue,black,orange
and clear are standardd colors. Individual orders shall be placed for other colors.
② : Working pressure:3to 1 safety factor.
Hoses are widely used in automation industries, such as automobiles, mechanical manufacturing, metallurgy, electronic technology, light industry textiles, ceramics and medical devices, food packaging, etc.
However, it might not be suitable to use hoses under acidic and alkaline environments, chemicals, organic solvents, seawater, corrosive gases, and other media, as well as prolonged exposure to sunlight or heat, which may cause cracking, damage, and other phenomena.
Therefore, it is better to avoid using hoses under such working conditions as much as possible.
We provide technical support and service for pneumatic PU tube products. Our dedicated team of technicians is available to provide troubleshooting, maintenance, and repairs to ensure that your product is working properly.
Our technicians are highly trained and certified in the latest technologies, and they are committed to providing the best possible service for our customers. We offer comprehensive support plans that include:
We are committed to providing the highest level of customer service and technical support for our products. If you have any questions about our services or products, please contact us today.

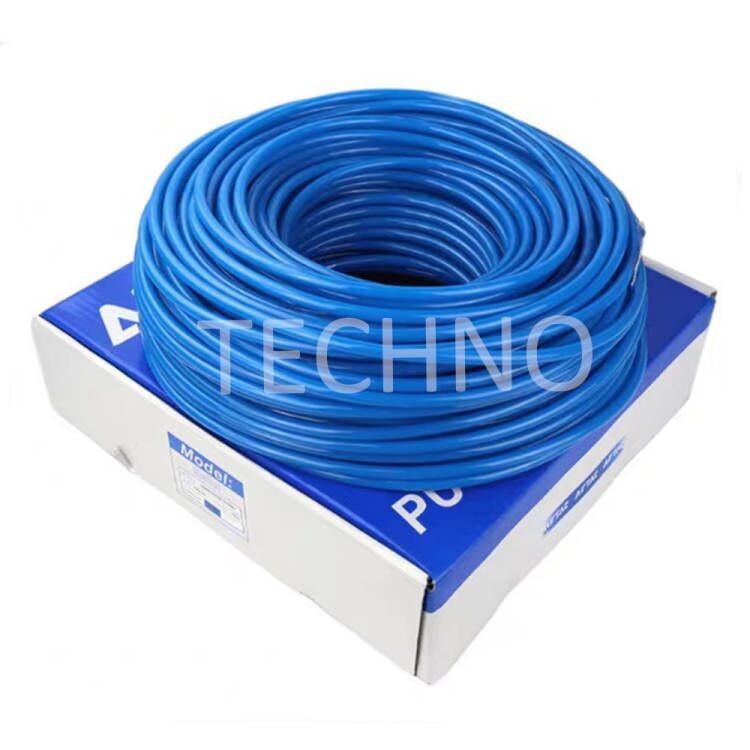

The Pneumatic PU Tube is packaged in a strong cardboard box to ensure it arrives in perfect condition. The cardboard box is then wrapped in a plastic bubble wrap and sealed with adhesive tape. This ensures the product is protected during shipping.
The Pneumatic PU Tube is usually shipped by air or by sea. It is important to ensure the shipping method is chosen carefully to avoid any damage to the product. In addition, the product should be insured to ensure the customer is covered should the product get lost or damaged during transportation.
Q1: What is the brand name of the Pneumatic PU Tube?
A1: The brand name of the Pneumatic PU Tube is Air Tac.
Q2: What is the Model Number of the Pneumatic PU Tube?
A2: The Model Number of the Pneumatic PU Tube is US98A040025.
Q3: Where is the Pneumatic PU Tube manufactured?
A3: The Pneumatic PU Tube is manufactured in China.
Q4: What certification does the Pneumatic PU Tube have?
A4: The Pneumatic PU Tube has CE certification.
Q5: What is the minimum order quantity for the Pneumatic PU Tube?
A5: The minimum order quantity for the Pneumatic PU Tube is 1meter.
