YW DKE TRADING COMPANY

|
| Place of Origin: | China |
| Brand Name: | ASCO |
| Certification: | CE |
| Model Number: | C113684 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Differential Pressure: | 0,35 - 8,5 Bar [1 Bar = 100kPa] | Ambient Temperature Range (°C): | -20 To +85℃ |
|---|---|---|---|
| Material Quality: | Nitrile/ | Medium: | Air |
| Colour: | Black | Size: | 2",2 1/2" |

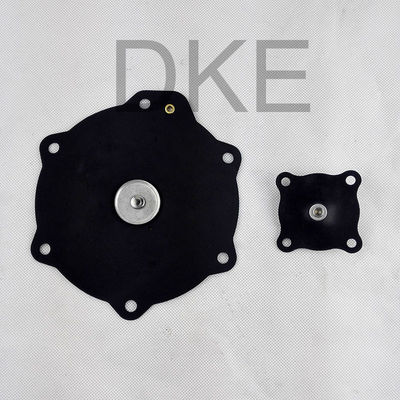

C113684 Diaphragm Membrane Repair Kits For
2"&2.5"G353A048 G353A049 Pulse Valves
The 200 SERIES is a range of diaphragm valve suitable for Dust collector applications,in particular for reverse pulse jet filter cleaning of filter bags cartridges envelope filters,ceramic filters and sintered metal fibre filters. The 200Series valve has the inlet port at 900 to the outlet port. The 200Series range comprises 7 models from 3/4" to 3"
all with threaded female gas connections.
The 200 Series is available in the following versions:
• VNP,with integrated solenoid pilot
• VEM,with remote pneumatic connection.
C113684 Diaphragm For ASCO Pulse Valve G353A048 G353A049
The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.
| Cover | Die-cast aluminium (Anodised) |
| Body | Die-cast aluminium (Anodised) |
| Pilot Base | Brass (Chromed) |
| Pilot | Stainless Steel |
| Diaphragm | NBR |
| Bolts and screws | Stainless Steel |
| Diaphragm backing disk | Stainless Steel |
| Diaphragm spring | Stainless Steel |
Ordering Code of Diaphragm For ASCO Pulse Valve:
|
Pulse Valve
Port Size
|
Pulse Valve
Model No
|
Diaphragm
Model No
|
Diaphragm Material
|
|
3/4''
|
SCG353A043
SCG353G043
SGG353A043
|
C113444
|
TPE, NBR, FKM
|
|
1''
|
SCG353A044
SCG353G044
SGG353A044
|
||
|
3/4''
|
SCG353-052
SCG353G052
SGG353-052
|
||
|
1''
|
SCG353-053
SCG353G053
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
SCG353G047
SGG353A047
|
C113827
|
NBR, FKM
|
|
SCG353A065
SCG353G065
SGG353A065
|
|||
|
2''
|
SCG353A050
SCG353G050
SGG353A050
|
C113685, C113686
|
|
|
2 1/2''
|
SCG353A051
SCG353G051
SGG353A051
|
||
|
3''
|
SCG353D060
SCG353G060
|
C123432, C123433
|
|
|
3''
|
SCXE353.060
SCR353G060
|
C113928
|
|
|
3/4''
|
G353A041
|
C113443
|
TPE, NBR, FKM
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR, FKM
|
|
G353-066
|
|||
|
G353A046
|
C113826
|
||
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
|
|
2 1/2''
|
G353A049
|
Our Pulse Valve Diaphragm is carefully packaged to ensure safe delivery to our customers. Each diaphragm is individually wrapped in protective material and then placed in a sturdy cardboard box. The box is then sealed with tape and labeled with the product name and specifications.
We offer both domestic and international shipping options for our customers. For domestic orders, we use reliable courier services such as UPS, FedEx, and USPS. For international orders, we work with trusted freight forwarders to ensure prompt and secure delivery.
We take great care in ensuring that our products are delivered in excellent condition. However, in the rare case that a product arrives damaged, we offer a hassle-free return and replacement policy. Our customer service team is always available to assist with any shipping or delivery inquiries.
Thank you for choosing our Pulse Valve Diaphragm. We look forward to providing you with a high-quality product and a smooth shipping experience.
