ITV1050-312L Electro-Pneumatic Regulator ITV1000/2000/3000 Series

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	ITV1050-312L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Sensitivity:

0.2 KPa (100 KPa Specification)

Linearity:

Within ±1% (F.S.)

Hysteresis:

Within 0.5% (F.S.)

Protective Structure:

IP65

Highlight:

ITV1050-312L Regulator

ITV1000 Series Regulator

Electro-Pneumatic Regulator

Regulator (ITV1050-312L)

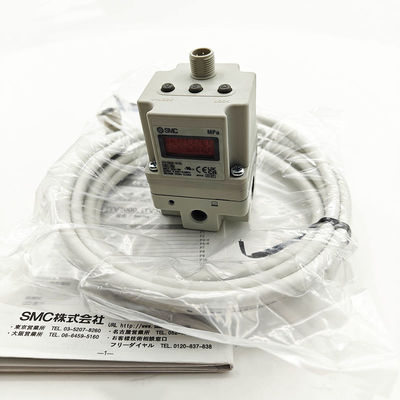

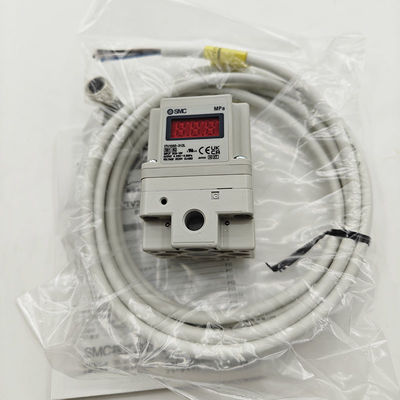

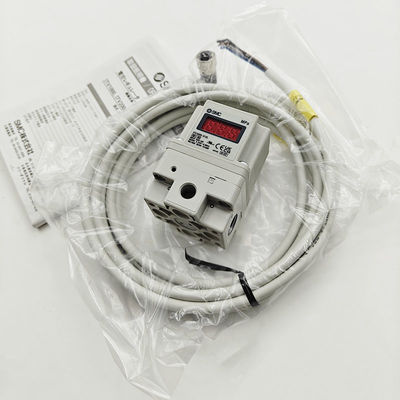

Name: ITV1050-312L Electro-Pneumatic Regulator ITV1000/2000/3000 Series
Brand: YW DKE TRADING COMPANY
SKU: ITV1050-312L
Availability: InStock

Electro-Pneumatic, ITV1000/2000/3000 Series

Part Number: ITV1050-312L

Electro-Pneumatic Regulator ITV1000/2000/3000 Series with 2 possible directions of cable entry. Features · Stepless control of air pressure in proportion to an electric signal. · Sensitivity: 0.2 kPa (100 kPa specification). · Linearity: within ±1% (F.S.) · Hysteresis: within 0.5% (F.S.) · Protective structure: IP65. · 2 possible directions of cable entry. · Grease-free specification (ITV1000 Series)

Configured Specifications

Regulator, Pressure Boosting Valve	Regulator	Regulator Type	Electropneumatic
Shape	Standard	Operating Environment	Standard
Compatible Fluid	Air	Exhaust Mechanism (Air Bleed)	[Not Provided] No
Reverse Flow Function (Relief)	No	Supply Side Connection Type	Rc
Supply Side, Connection Diameter	1/4	Control Side Connection Type	Rc
Control Side, Connection Diameter	1/4	Pressure Gauge	[Not Provided] No
Input Signal	[DC0-10V] Voltage Source Type DC 0~10V	Accessory	None
Pressure Unit	MPa	Custom-made Specifications	None
Specification	1000 Type	Power Supply Voltage	24 V DC
Monitor Output	Analog output 1 to 5 V DC	Cable Connector Type	Right-angle type 2 m
Pressure Range	0.9 MPa	-	-

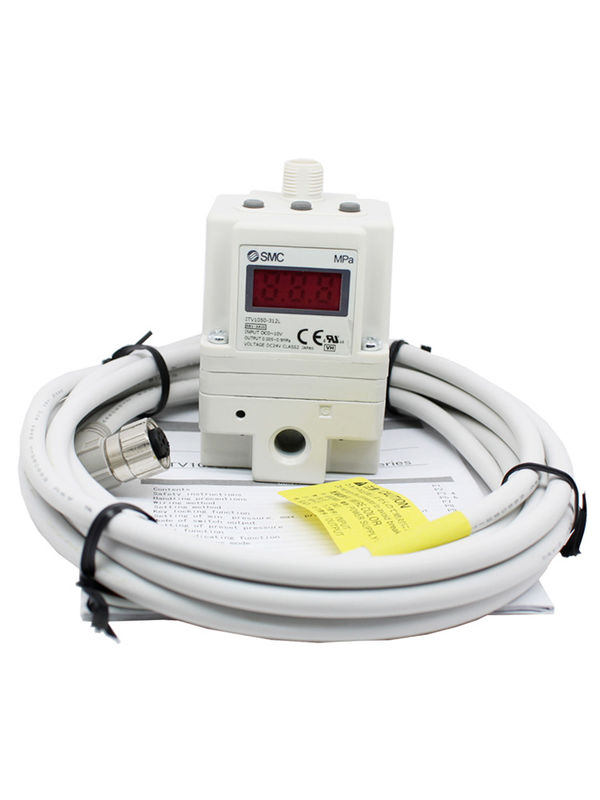

ITV1050-312L Electro-Pneumatic Regulator ITV1000/2000/3000 Series 4

Packaging and Shipping

The Pneumatic Filter Regulator Lubricator is securely packaged in a shock-proof container.
We use reliable carriers to ship the product to customers.
We provide tracking information for customers to check the shipment progress.

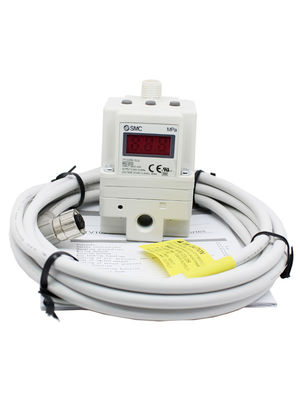

ITV1050-312L Electro-Pneumatic Regulator ITV1000/2000/3000 Series 6
