Name: GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V
Brand: YW DKE TRADING COMPANY
SKU: CA45DD
Availability: InStock

Home Products Pulse Jet Valves

GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V

Product Details:

Place of Origin:	China
Brand Name:	GOYEN
Certification:	CE
Model Number:	CA45DD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Port Size:	1 1/2"	Supply Voltages:	DC24V, AC24V, AC110V, AC220V
Series:	DD	Pressure Range:	0.3 To 0.8 MPa
Operating Temperature:	-5 To +55 ℃	Connection Type:	Dresser Nut
Diaphragm Material:	Nitrile (Buna)	Number Of Diaphragm::	2
Highlight:	AC220V Goyen Replacement Diaphragm Valve , 1/2" Goyen Replacement Diaphragm Valve , CA45DD Goyen Replacement Diaphragm Valve

Product Attributes

Model No.: CA45DD

Brand: GOYEN

Port Size: 1 1/2''

Number Of Diaphragm: 2

Pilot Type: Integral Pilot

Diaphragm Material: Nitrile (Buna)

Supply Voltages: DC24V, AC24V, AC110V, AC220V

Name: CA45DD Goyen Replacement Pulse Jet Valve

Series: DD

Connection Type: Dresser Nut

Operating Pressure Range: 0.3 To 0.8 MPa

Operating Temperature Range: -5 To +55 ℃

1 1/2'' CA45DD Goyen Replacement Diaphragm Valve AC220V

CA45DD dresser nut pulse jet valve is the heart of pulse jet dust collector. It plays an important role in the pulse jet dust collector. When the CA45DD Pulse Jet Valve is blocked, the resistance of the dust collector will increase and the value of the differential pressure gauge will increase. This will easily cause the dust bag to wear and fall off, which will affect the normal operation of the dust collector.

Overall dimension of CA45DD Goyen Replacement Diaphragm Valve:

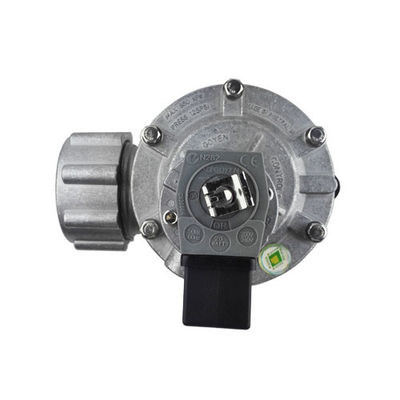

GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V 0

Details show of CA45DD Double Dresser Nut Dust Collector Valve:

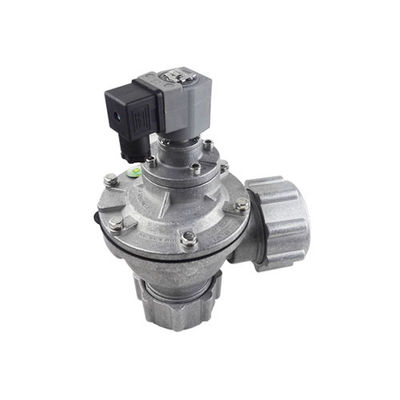

GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V 1

Technical data of Goyen Type DD Series Dust Collector Valves:

Model No		CA20DD	CA25DD	CA45DD
Nominal Size		20	25	45
Port Size	mm	20	25	40
Port Size	in	3/4	1	1 1/2
No of Diaphragms		1	1	2
Flow	Kv	12	20	44
Flow	Cv	14	23	51
Pressure (Psi)		5 to 125	5 to 125	5 to 125
Temperature℃	NBR	-40 to 82	-40 to 82	-40 to 82
Temperature℃		-29 to 232	-29 to 232	-29 to 232

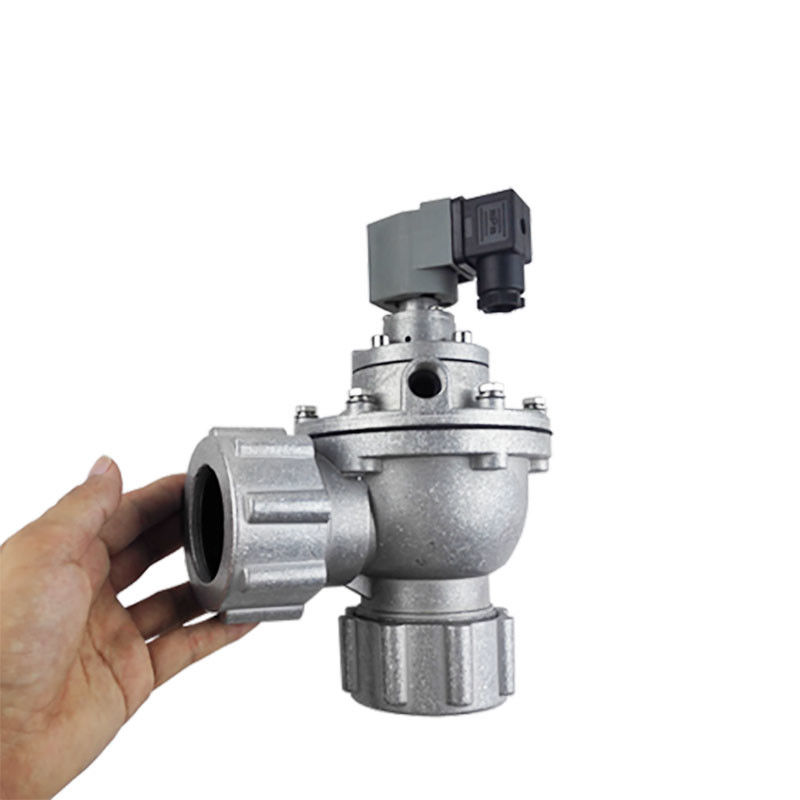

GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V 2

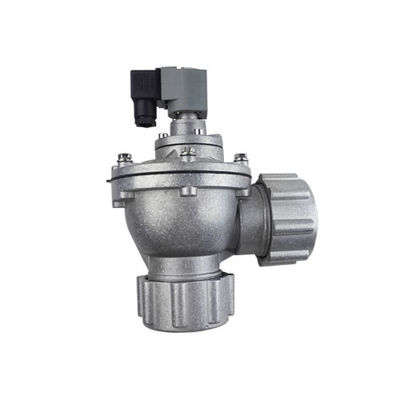

GOYEN1 1/2" CA45DD Goyen Replacement Diaphragm Valve AC220V 3

Installation instructions of Dresser Nut Pulse Jet Valves:

The correct use of CA45DD pulse jet valve:

1. The pulse jet valve is a diaphragm valve that is combined with a Solenoid Valve, a pilot valve and a pulse valve, and is directly controlled by an electric signal.

2. The pulse jet valve should not be too loose or too tight, too loose and easy to dust, too tight and easy to pull.

3. The pulse jet valve is preferably installed perpendicular to the horizontal pipe and the coil is upward. Allow ±30° tilt when conditions do not allow. Otherwise, normal use is not guaranteed.

4. The arrow on the valve body of the pulse jet valve should be consistent with the flow direction of the medium.
