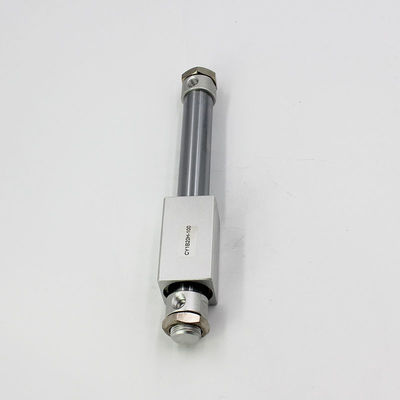

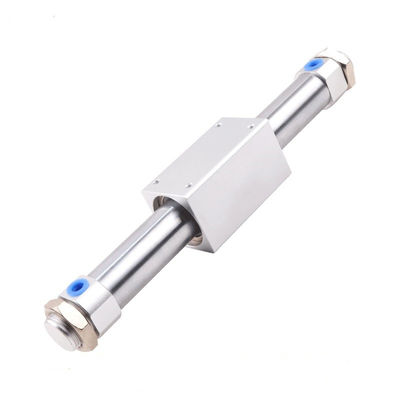

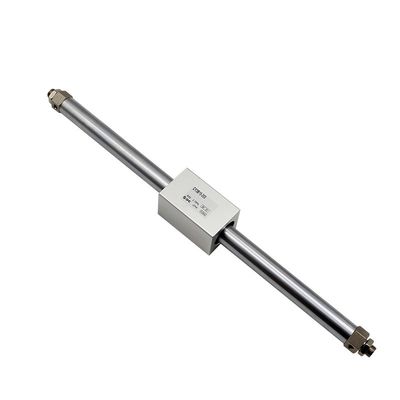

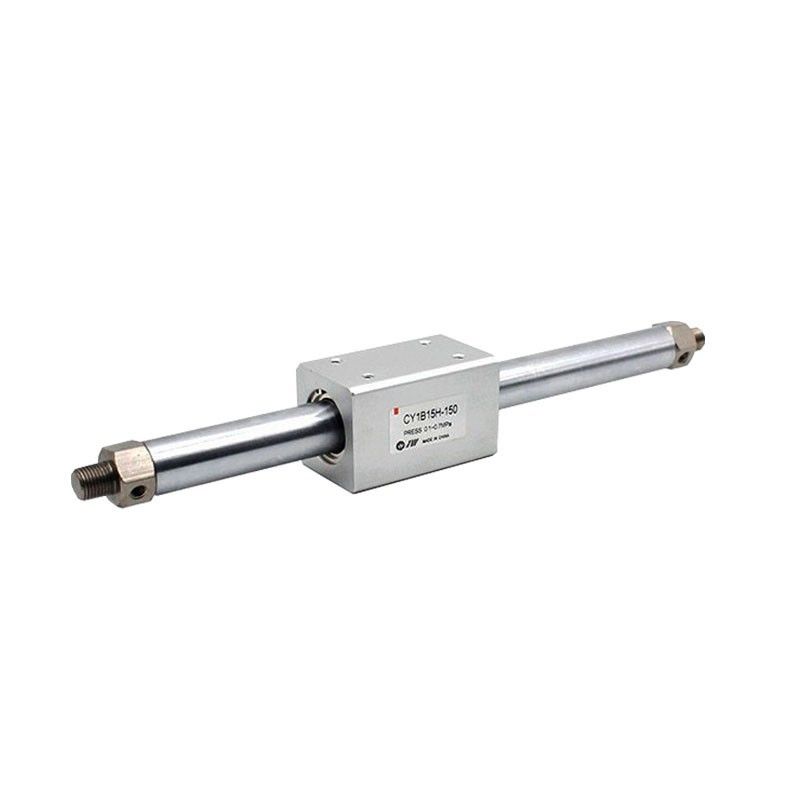

Place of Origin: | China |
Brand Name: | SMC |
Certification: | CE |
Model Number: | CY1B6H-100 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bag, Box, Carton, Pallet |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Double-Acting Cylinder Type: | Adjustable Cushioning Cylinder | Combination Cylinder Type: | Pressurized Cylinder |
---|---|---|---|
Working Medium: | Clean Air | Working Pressure: | 0.1~1.0MPa |
Guaranteed Pressure: | 1.35MPa | Cushion Stroke: | 20mm/32mm |
Port Size: | G1/8 G1/4 G3/8 G1/2 | Keywords: | Pneumatic Rodless Air Cylinder |
Model: | Cy1b Cylinder,Cy3b Cylinder | Trademark: | VPC Pneumatic |
Highlight: | CY1B6H-100 SMC Rodless cylinder,SMC Rodless Cylinder CY1B Series |
Standard Stroke
Bore size(mm) | Standard stroke(mm) | Manufacturable Note) maximum stroke (mm) |
6 | 50,100,150,200 | 300 |
10 | 50, 100, 150, 200, 250, 300 | 500 |
50 | 100, 150, 200, 250, 300, 350, 400, 450 500, 600, 700, 800, 900, 1000 | 6000 |
63 |
1.CY3B series rodless pneumatic cylinder are very wide used in automationline
2.Normally bore size: 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm,63mm
3.Use rubber cushion standard type to keep the cylinder operatingsoomthly, safely and quietly.
4.Easier and various mounting.
5.Slide bearing type.
CY3B magnetic coupling rodless cylinder,the range of travel options is large, the stroke is larger than that of ordinary cylinder; the use of ball bearings makes the cylinder bear eccentric load and can move smoothly; the piston has no mechanical connection between sliders, and the sealing performance is excellent; it can install buffer, and the reversing action is smooth and impact-free.
Bore size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 63 |
Working medium | Air | ||||||||
Proof pressure | 1.05Mpa | ||||||||
Min pressure | 0.16 | 0.16 | 0.16 | 0.16 | 0.15 | 0.14 | 0.12 | 0.12 | 0.12 |
Max pressure | 0.7Mpa | ||||||||
Working temperature | -10~60ºC | ||||||||
Piston speed | 50-500 mm/s |
||||||||
Cushion | Rubber bumper | ||||||||
Lubrication | NOT required | ||||||||
Magnet holding force(N) | 19.6 | 53.9 | 137 | 231 | 363 | 588 | 922 | 1471 | 2256 |
CY3B Series Basic Magnetic Coupling Rodless Cylinder Product features
Product features | 1.The wear-resistant ring is 70% more than the CYl B series, so the bearing capacity of the shaft is improved. |
2The wear-resistant ring of special resin is used to improve the lubrication and durability. | |
3.The pedal dust-proof ring reduced the minimum working pressure by 30%. | |
4.The installation dimensions are the same as CY1B/R series. |

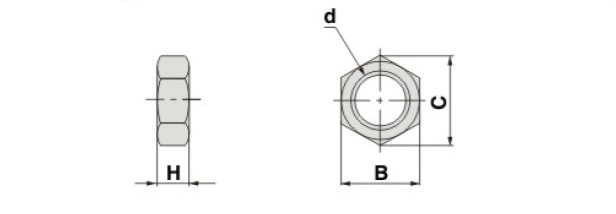

Component | Bore size (mm) |
d | H | B | C |
SNJ-006B | 6 | M6X1.0 | 4 | 8 | 92 |
SNJ-016B | 10,15 | M10X1.0 | 4 | 14 | 16.2 |
SNJ-020B | 20 | M20X1.5 | 8 | 26 | 30 |
SNJ-032B | 25,32 | M26X1.5 | 8 | 32 | 37 |
SNJ-040B | 40 | M32X2.0 | 10 | 41 | 47.3 |
Installation and instruction
Installation and instruction |
1.Must clean up the dirt in the pipeLine before cylinder is connected, in order to keep the inside cleanness of cylinders. |
2.The medium used by cylinder sha[ be filtered by filter element(greater than 40um) before use. | |
3.Anti-freezing measures sha[ be taken under low temperature environment in order to prevent moisture from freezing in the system. | |
4.If cytinder was leaved unused for long time, watch out to the rusty surface and install dust plug at inlet and outlet |
