R65 Pneumatic Roller Vibrator 10000 To 36000 RPM Frequency 1070-12500 N Centrifugal Force

Product Description:

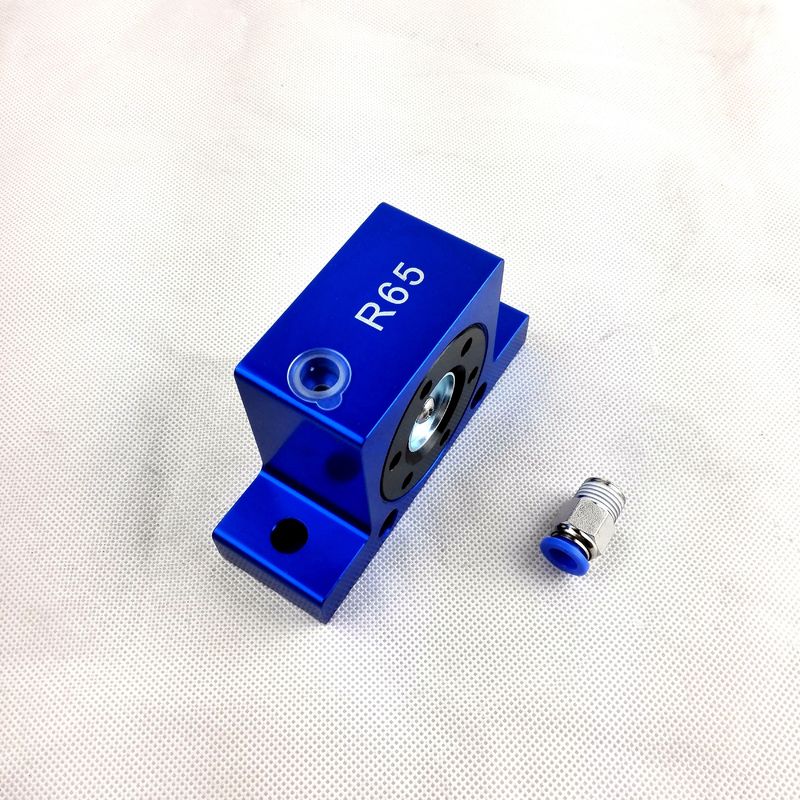

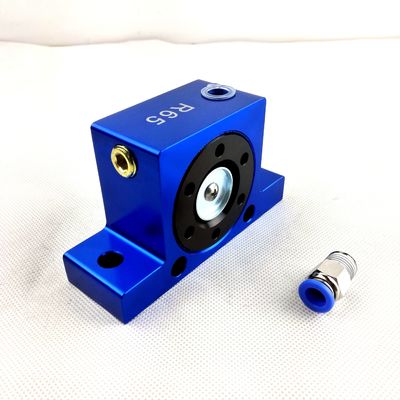

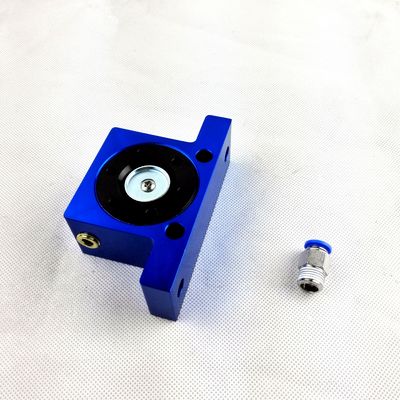

The R series products are known for their simple design but high vibration force capabilities. The shell is crafted from an extruded aluminum part while the precision steel roller inside is supported by two high-impact resistant plastic cover plates.

For convenient installation, the housing comes with four mounting holes, two of which are horizontal while the other two are vertical. Air enters from either of the two inlet holes on the shell, drives the roller and generates centrifugal force. The generated force then produces the desired vibration throughout the body. The impact resistant plastic cover plate equipped with a silencer discharges air after the device works.

The R series high-frequency pneumatic roller vibrator is ideal for vibrating, filling, and transporting flowable powders. Its pneumatic transmission feature also enables the coming in of control over vibration frequency through air pressure adjustments.

The R series high-frequency pneumatic roller vibrator finds widespread uses, including:

• Unloading from hoppers
• Mixing of powder
• Transportation of powdered materials
• Compaction treatment of plastic and concrete inside the mold

Features:

The machine body is made of high-quality aluminium, providing strength and durability during operation. This ensures long-lasting performance that will stand up to heavy use and daily wear and tear.

The rotary vibrator is a key component of the machine, providing powerful and efficient vibration. This technology ensures that the machine can operate at high speeds and with high precision, making it ideal for a wide range of applications.

The machine includes an air pressure system that enables you to adjust the frequency and force of the vibrations to meet your specific needs. This provides incredible versatility and allows you to use the machine in a range of different settings and for a variety of tasks.

The machine is designed to operate efficiently and safely at temperatures up to 140 ℃, allowing you to use it for a range of different applications and in different environments. This means that you can rely on the machine to perform consistently and effectively in any situation.

The machine is capable of delivering a force range from 1070 N to 12500 N, depending on your needs and requirements. This ensures that the machine is powerful enough to tackle even the toughest tasks, while still providing the precision and accuracy you need for your work.

Technical Parameters:

Applications:

The R series pneumatic vibrators have a range of useful application examples. These include:

1. Funnel emptying
2. Small particle excitation
3. Fine powder movement
4. Compaction of plastic and cement in molds

The R series pneumatic vibrators have proven to be an asset in a variety of industrial settings. For example, they are useful in the emptying of funnels by providing powerful vibrations that aid in the release of material. Additionally, they are effective in the excitation of small particles, which makes them ideal for use in particle analysis or sieving applications.

In addition to their usefulness in particle-based applications, R series pneumatic vibrators are also well-suited for moving fine powders. This is due to the fact that they are able to deliver precise, high-frequency vibrations that facilitate the movement of even the smallest particles. Furthermore, these vibrators are also ideal for the compaction of plastic and cement in molds, as they can provide the necessary force and movement required to ensure a flawless final product.

Support and Services:

Pneumatic Vibrators are designed to provide reliable and efficient performance in a variety of industrial applications. Our technical support team is available to assist with installation, troubleshooting, and maintenance to ensure optimal product performance. Services offered include:

• On-site installation and testing
• Remote technical support
• Training and education on product operation and maintenance
• Repair and replacement services
• Customized solutions to meet specific application requirements

Contact us today to learn more about how our technical support and services can benefit your operation.

Packing and Shipping:

Product Packaging:

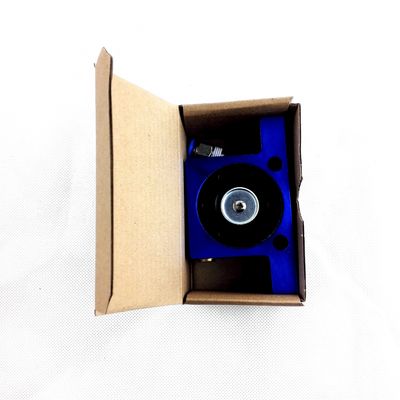

The pneumatic vibrators are carefully packed in a sturdy cardboard box with sufficient padding to ensure safe transportation. The product is also wrapped in plastic to protect it from any moisture or damage during shipping.
