Product Description:

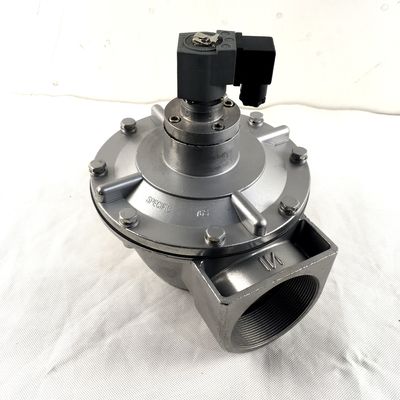

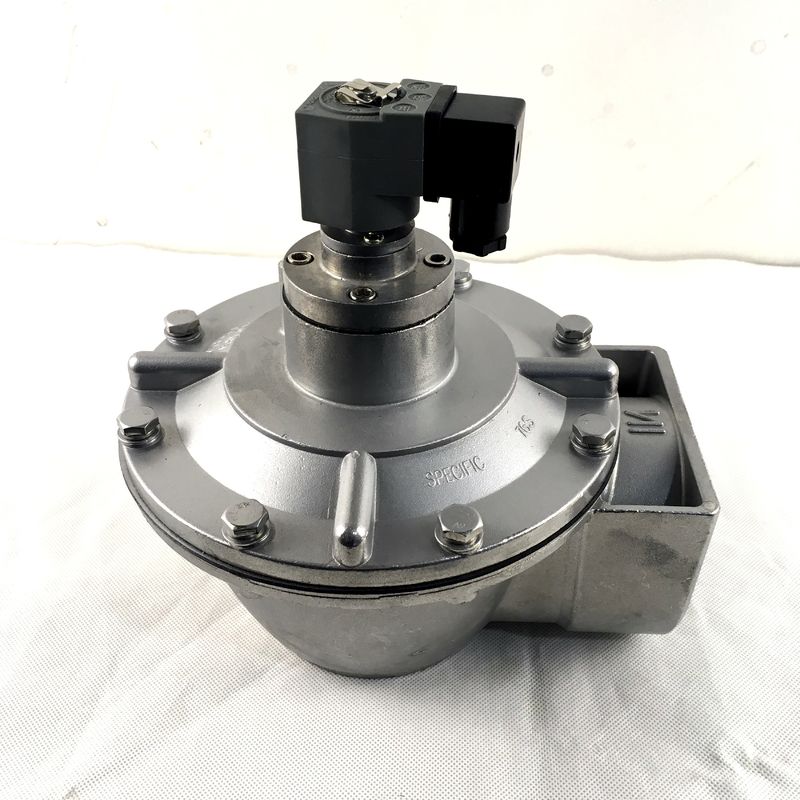

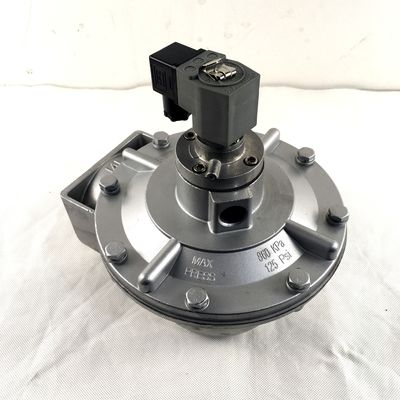

Introducing our high-performance diaphragm valve equipped with threaded ports. This top-of-the-line valve comes in two variations - one with an integral pilot and the other remotely piloted.
Our diaphragm valve offers superior performance, providing users with optimal control and precision. The outlet is conveniently positioned at 90 degrees to the inlet for ease of use and accessibility.
Technical Parameters:
| Parameter |
Value |
| Product |
Pulse Jet Valves |
| Port Size |
G3'' |
| Pressure Range |
5 To 125 Psi |
| Orifice Size |
76mm |
| Temp. Range |
-5℃ - 55℃ |
| Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
| Body Material |
Aluminum (Diecast) |
Applications:
Product Application and Installation
This product is suitable for use in dust collector applications, particularly for reverse pulse jet filter cleaning which includes bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Installation Process:
Follow the below steps for a successful installation:
- Prepare the supply and blowtube pipes according to the valve specification. Avoid installing valves underneath the tank.
- Ensure that the tank and pipes are free of dirt, rust, or other particulates.
- Make sure the supply air is clean and dry.
- Mount the valves to the inlet pipes and the blowtube to the valves. Ensure that no excess thread sealant enters the valve itself.
- Make electrical connections to the solenoid or connect the RCA pilot port to the pilot valve (RCA valves only).
- Apply moderate pressure to the system and check for any installation leaks.
- Fully pressurise the system.
- Test fire the system and listen for proper actuation and crisp pulse noise.
Support and Services:
Packing and Shipping:
The Pulse Jet Valves product will be packaged securely in a sturdy cardboard box to ensure that the product arrives in good condition. The box will be sealed with packing tape to prevent it from opening during shipping.
The product will be shipped using a reliable shipping service to ensure that it arrives at the destination on time. The shipping cost will be calculated based on the shipping address and the weight of the package.
If you have any questions or concerns about the packaging or shipping of the Pulse Jet Valves product, please feel free to contact us.
FAQ:
Q1: What is the brand name of the Pulse Jet Valve product?
A1: The brand name of the Pulse Jet Valve product is GOYEN.
Q2: What is the model number of the Pulse Jet Valve product?
A2: The model number of the Pulse Jet Valve product is CA76T.
Q3: Where is the Pulse Jet Valve product manufactured?
A3: The Pulse Jet Valve product is manufactured in China.
Q4: What certification does the Pulse Jet Valve product have?
A4: The Pulse Jet Valve product has CE certification.
Q5: What is the minimum order quantity for the Pulse Jet Valve product?
A5: The minimum order quantity for the Pulse Jet Valve product is 1.
Q6: What is the price of the Pulse Jet Valve product?
A6: The price of the Pulse Jet Valve product is negotiable. Please contact us for a quote.
Q7: What are the packaging details for the Pulse Jet Valve product?
A7: The Pulse Jet Valve product is packaged in cartons or as per the client's requirements.
Q8: What is the delivery time for the Pulse Jet Valve product?
A8: The delivery time for the Pulse Jet Valve product is 1-7 work days after payment.
Q9: What payment terms are accepted for the Pulse Jet Valve product?
A9: The Pulse Jet Valve product can be paid for using T/T, Western Union, or Paypal.
Q10: What is the supply ability of the Pulse Jet Valve product?
A10: The supply ability of the Pulse Jet Valve product is 5000 pieces per month.
