Product Description:
Description:

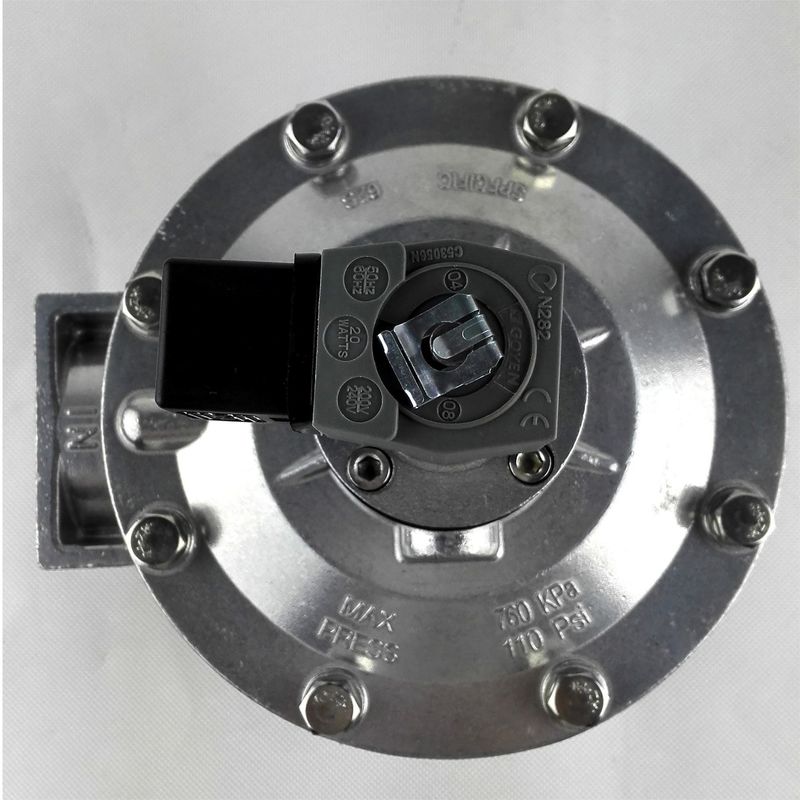

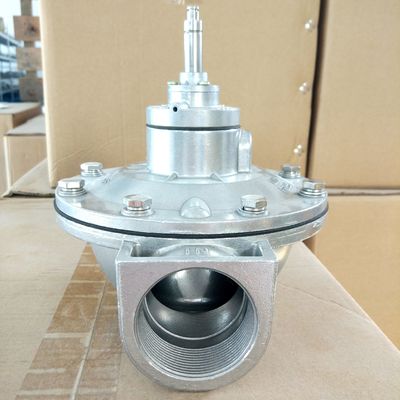

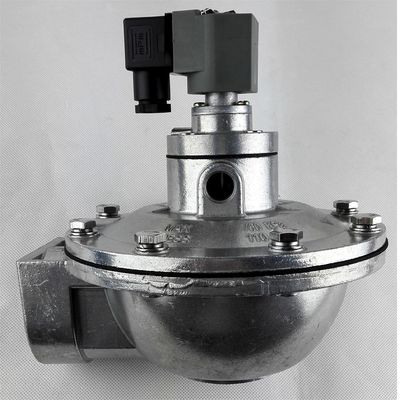

Looking for a high-performance diaphragm valve? We have just what you need! Our diaphragm valve boasts of threaded ports that ensure ease of installation and maintenance. Additionally, you can choose between getting it with an integral pilot or as a remotely piloted valve.

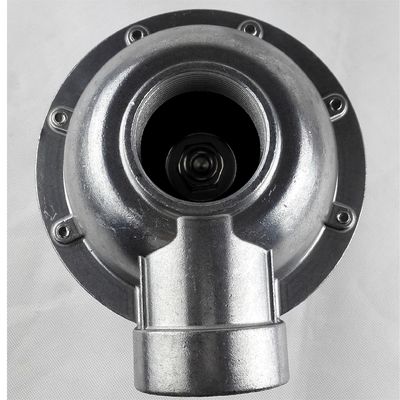

Our diaphragm valve is designed to operate flawlessly, with a 90° outlet to the inlet. This design is both effective and efficient, ensuring that your valve operates at its best.
Dust Collector Diaphragm Valve, Pulse Valves, Pulse Jet Valves
Technical Parameters:
| Port Size |
G2'' |
| Voltage |
24VDC, 24VAC, 110VAC, 220VAC |
| Body Material |
Aluminum (Diecast) |
| Temp. Range |
-5℃ - 55℃ |
| Pressure Range |
5 To 125 Psi |
| Orifice Size |
50mm |
Applications:
Suitable For
The product is ideal for use in dust collector applications, specifically in reverse pulse jet filter cleaning. It can efficiently clean various types of filters, including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Installation
- Prepare the supply and blowtube pipes based on the valve specification. Ensure that the valves are not installed underneath the tank.
- Make sure that the tank and pipes are free from dirt, rust, or any other particulate that can affect the performance of the product.
- Ensure that the supply air is clean and dry before installing the product.
- Mount the valves to inlet pipes and blowtube to valves, and check whether excess thread sealant can enter the valve itself.
- Either connect RCA pilot port to pilot valve or make electrical connections to solenoid, depending on the valve type.
- Apply moderate pressure to the system and check for any installation leaks.
- Fully pressurize the system before testing fire.
- Test fire and listen carefully for proper actuation and crisp pulse noise to ensure that the product functions effectively.
Support and Services:
The Pulse Jet Valves product technical support and services include:
- Expert assistance with product selection and application
- Installation guidance and troubleshooting
- On-site maintenance and repair services
- Replacement parts and accessories
- Training and education resources for customers and distributors
Packing and Shipping:
Product Packaging:
- Each valve is packed in an individual box with foam padding to ensure safe transportation and storage.
- Boxes are labeled with product information and handling instructions for easy identification.
- Multiple boxes can be combined into a larger shipping container for bulk orders.
Shipping:
- Orders are typically processed and shipped within 2-3 business days.
- Shipping options include standard ground, expedited, and international shipping.
- Shipping costs are calculated based on the destination and weight of the order.
- Customers will receive a tracking number once the order has shipped for easy monitoring of delivery status.
FAQ:
Q: What is the brand name of this pulse jet valve?
A: The brand name of this pulse jet valve is GOYEN.
Q: What is the model number of this pulse jet valve?
A: The model number of this pulse jet valve is CA50T.
Q: What is the minimum order quantity for this pulse jet valve?
A: The minimum order quantity for this pulse jet valve is 1.
Q: What is the certification of this pulse jet valve?
A: This pulse jet valve is certified by CE.
Q: What are the payment terms for this pulse jet valve?
A: The payment terms for this pulse jet valve are T/T, Western Union, and Paypal.
