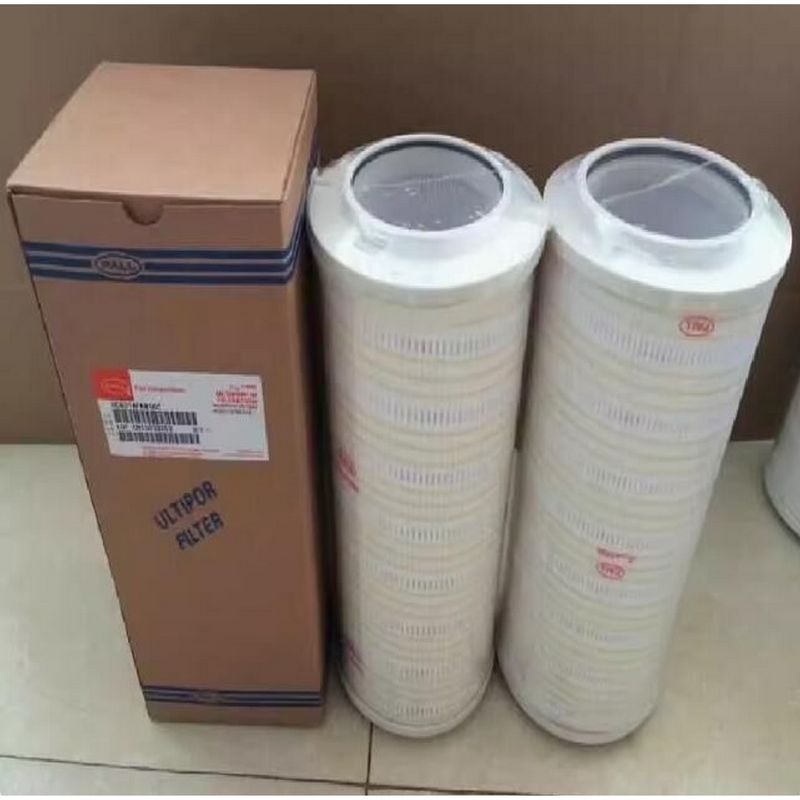

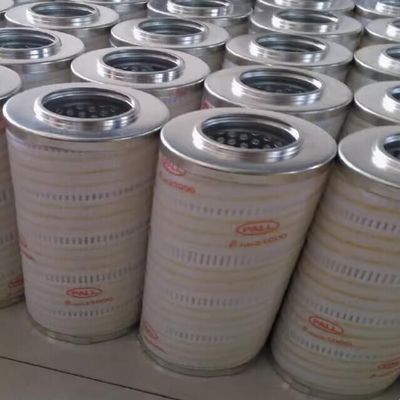

HC8400FCS8H PALL Precision Hydraulic Oil Filter Element Folding Filter Cartridge

HC8400FCS8H PALL Precision Hydraulic Oil Filter

Product Description:

Installation of PALL Filter Element

The filtration system in a hydraulic system is crucial to ensuring the smooth functioning of its various components. The installation of the PALL filter element is one such way of providing clean oil to the system.

Suction Path of Pump

One important installation point for the PALL filter element is at the suction port of the pump. A surface type oil filter is used to filter out larger impurities and particles and protect the hydraulic pump from damage. It is crucial to select an oil filter with a filtering capacity of at least twice the pump flow rate and a pressure loss of less than 0.02 MPa.

Outlet Oil Circuit of Pump

Another important installation point for the PALL filter element is on the outlet oil circuit of the pump. This filter is installed to filter out pollutants that may enter components such as valves. The oil filter should have a filtration accuracy of 10-15 μm, be able to withstand the working and impact pressures on the oil circuit, and have a pressure drop of less than 0.35 MPa. Additionally, a safety valve should be installed to prevent oil filter blockage.

Return Oil Line

The PALL filter element is often installed on the system's return oil line, acting as an indirect filter. A back pressure valve is usually installed in parallel with the filter to open when the filter becomes clogged and reaches a certain pressure value.

Branch Oil Circuit

The PALL filter element can also be installed on the system branch oil circuit to provide clean oil to the components serviced by that particular circuit.

Separate Filtration System

For large hydraulic systems, a dedicated hydraulic pump and oil filter can be used to form an independent filtration circuit. In addition to the oil filter required for the entire system, a dedicated fine oil filter is often installed in front of some critical components such as servo valves and precision throttle valves to ensure their normal operation in the PALL filter hydraulic system.

Features:

The lubrication filter serves various important functions. One of its primary roles is to protect critical system components against damage caused by pollutant particles of a certain size. These particles can enter component gaps, leading to wear and potential component failure.

The filter also controls the level of cleanliness within the system, ensuring the attainment of maximum component lifespan. This control level is crucial to ensure that all pollutant particles in the system are at or below the critical size. Failure to achieve the necessary control can lead to an increase of generated particles in the system, causing greater damage to the components through wear mechanisms.

Moreover, the lubrication filter must allow fluid to pass through at a given flow rate with a minimum pressure drop (Δ P). If the filter is unable to provide the necessary control over destructive particles in the system, an increase in the number of generated particles will ensue, which will adversely affect the system's overall efficiency. Therefore, the filter must capture these particles and maintain the required cleanliness of the system.

In addition, effective lubricating oil filtration is crucial to the maintenance plan of the lubrication system. Advanced filtration technology is now commonly specified for most lubricating oil applications to ensure high performance and long life filters. These filters maintain consistent performance throughout their lifespan, enabling industrial operations to achieve optimal fluid cleanliness for consistent operational efficiency and cost reduction.

Applications:

The following are the different applications of the product:

• Separation and recovery of products and intermediate products in refining and chemical production processes.
• Purification of liquids.
• Purification of magnetic tapes, optical discs, and photographic films in manufacturing.
• Filtration of oil field well water and natural gas for particle removal.

• Purification and uniform filtration of polyester melt during wire drawing process.
• Protective filtration of air compressor.
• Removal of oil and water from compressed gas.

• Pre-treatment and filtration of reverse osmosis water and deionized water.
• Pre-treatment and filtration of cleaning solution and glucose.

• Purification of oil for lubrication systems, speed control systems, bypass control systems of gas turbines and boilers.
• Purification of feed pumps, fans, and dust removal systems.

• Lubrication systems and compressed air purification for paper making machinery, mining machinery, injection molding machines, and large precision machinery.
• Dust recovery and filtration for tobacco processing equipment and spraying equipment.

• Filtration of lubricating oil and engine oil.

• Air filters, oil filters, fuel filters for internal combustion engines.
• Various hydraulic oil filters, diesel filters, and water filters for construction machinery, ships, and heavy-duty vehicles.

Support and Services:

The Hydraulic Filter Element product technical support and services include:

• Expert technical advice on product selection and usage
• Assistance with installation and maintenance
• Troubleshooting and problem-solving
• Product documentation and manuals
• Training and education for customers and partners
• Warranty and repair services

Packing and Shipping:

Product Packaging:

The hydraulic filter element will be securely packaged in a cardboard box to prevent any damage during transportation. The box will be labeled with the product name, specifications, and handling instructions.

Shipping:

The product will be shipped via standard ground shipping within 1-2 business days of receiving the order. Shipping times may vary depending on the destination. Customers will be provided with a tracking number to monitor the status of their order. Expedited shipping options are available upon request for an additional fee.

FAQ:

Q1: What is the brand name of the hydraulic filter element?

A1: The brand name of the hydraulic filter element is PALL.

Q2: What is the model number of the hydraulic filter element?

A2: The model number of the hydraulic filter element is HC8400FCS8H.

Q3: Where is the hydraulic filter element made?

A3: The hydraulic filter element is made in China.

Q4: Does the hydraulic filter element have any certification?

A4: Yes, the hydraulic filter element has CE certification.

Q5: What is the minimum order quantity for the hydraulic filter element?

A5: The minimum order quantity for the hydraulic filter element is 1.

Q6: What payment terms are accepted for the hydraulic filter element?

A6: The accepted payment terms for the hydraulic filter element are T/T, Western Union, and Paypal.

Q7: What is the packaging detail for the hydraulic filter element?

A7: The packaging detail for the hydraulic filter element is a carton or as the clients require.

Q8: What is the delivery time for the hydraulic filter element?

A8: The delivery time for the hydraulic filter element is 1-7 work days after payment.

Q9: What is the supply ability of the hydraulic filter element?

A9: The supply ability of the hydraulic filter element is 5000PCs per month.

Q10: Is the price of the hydraulic filter element negotiable?

A10: Yes, the price of the hydraulic filter element is negotiable.
