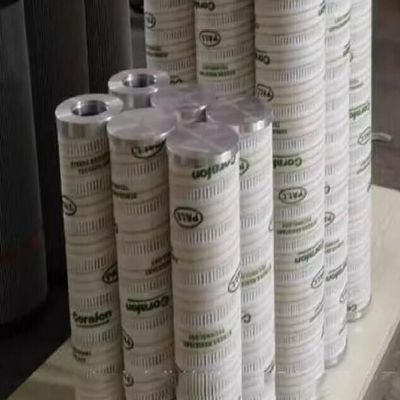

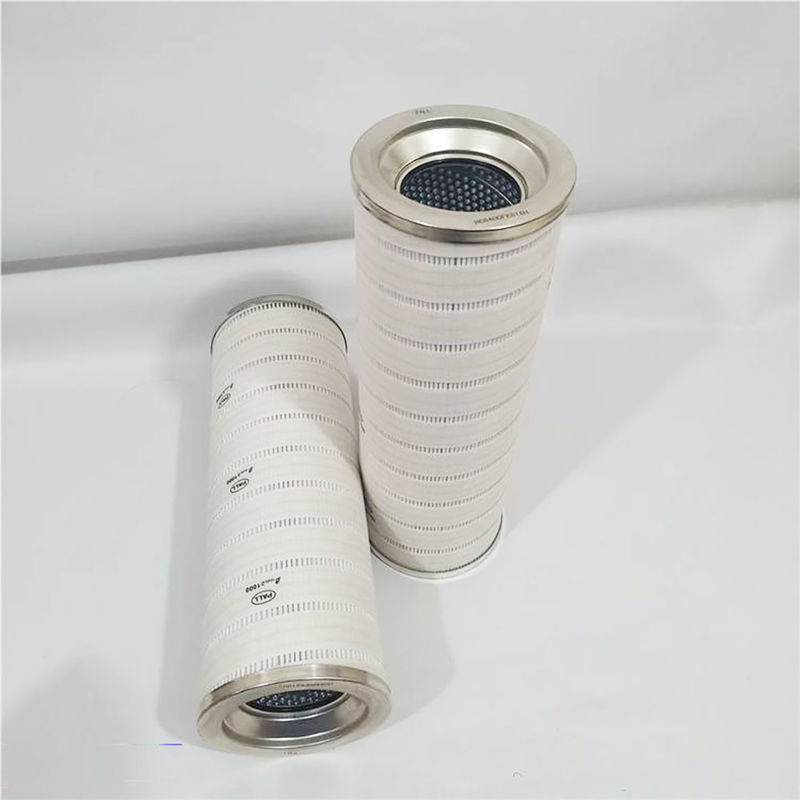

HC9700FCT27H Pall Foldable Stainless Steel Filter Cartridge

The Pall filter element is a standard filtration water filter that uses a sintered filter element and plastic material. It is a highly versatile component that is widely used in various industries such as petroleum, chemical, metallurgical, aviation, and many others. It is known for effectively filtering out solid particles and gel like substances in hydraulic systems, controlling the pollution level, and ensuring normal operation.

The filtering materials used in the Pall filter element are of high-quality and include glass fiber, oil filter paper, stainless steel, sintered felt, and more. Its filtering accuracy ranges from 1, 3, 6, 12, 25 μ m, and other specifications. The structural strength and filter rupture resistance have been tested and verified to comply with standards, making it ideal for different applications, including being installed at the pump's suction port, pump outlet oil circuit, system return oil circuit, system branch oil circuit, or used as a standalone filtration system.

The Pall filter has a wide range of performance indicators that include material type, filtration accuracy, working pressure, working medium, and working temperature. The installation and use of the filter helps to optimize filtration efficiency and service life while maintaining low-pressure differentials and high strength, providing maximum protection for the system.

Series number: The PALL filter element is identified by a series number or letter combination, such as HC8304, which denotes its basic series and specifications. If two filter elements have the same serial number, it means that their inner and outer diameters are the same.

Filtration accuracy: The filtration accuracy of a PALL filter element is represented by the letter N, followed by a number. For instance, the HC2207FKP6H filter element has a filtration accuracy of 6um. Different letters represent different levels of filtration accuracy for PALL filters. For example, Z = 1μm, N = 6 μm, S = 12μm, T = 25μm, and R = 40μm.

Filter height: The height of a PALL filter is represented by a number, such as 39 which indicates that the filter element is 39 inches tall, or 891mm in millimeters. This number refers to the length of the filter element.

Seal material: The seal material of a PALL filter is represented by a letter, such as H for nitrile rubber. PALL filters use different letters to represent different sealing materials. For instance, J for ethylene or propylene, P for chloroprene rubber, and Z for fluororubber.

By understanding the different components of a PALL filter, you can have a better understanding of its specific specifications and applications. For instance, the HC2207FKP6H filter element uses high-quality glass fiber filter material and metal mesh to provide a filtration accuracy of 6um, making it suitable for specific industrial applications. This filter ensures the cleanliness of the fluid and the safety of the system operation.
