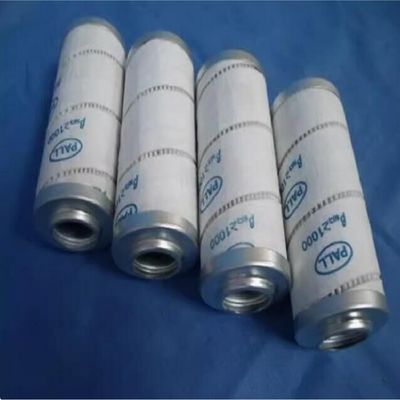

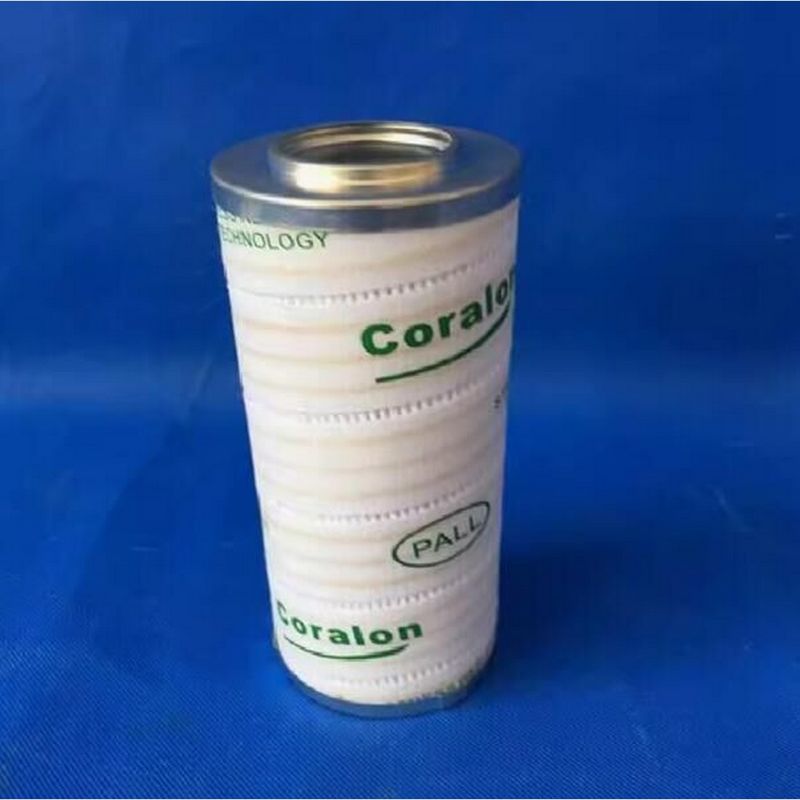

HC7400SCP4H Hydraulic Oil Filter Element With 1~100μm Filtering Accuracy

Product Description:

(1) The PALL filter element should be installed at the suction port of the pump:

A surface type oil filter is usually installed on the suction path of the pump to filter out larger impurities and particles to protect the hydraulic pump. In addition, the filtering capacity of the oil filter should be more than twice the pump flow rate, and the pressure loss should be less than 0.02 MPa.

(2) The PALL filter element is installed on the outlet oil circuit of the pump:

The purpose of installing an oil filter here is to filter out pollutants that may enter components such as valves. Its filtration accuracy should be 10-15 μ m, and it should be able to withstand the working pressure and impact pressure on the oil circuit, with a pressure drop of less than 0.35 MPa. At the same time, it should be installed safety valve to prevent oil filter blockage.

(3) The PALL filter element is installed on the system's return oil line:

This installation serves as an indirect filter. Usually, a back pressure valve is installed in parallel with the filter. When the filter becomes clogged and reaches a certain pressure value, the back pressure valve opens.

(4) The PALL filter element is installed on the system branch oil circuit.

(5) PALL filter element separate filtration system:

Large hydraulic systems can be equipped with a dedicated hydraulic pump and oil filter to form an independent filtration circuit. In addition to the oil filter required for the entire system, a dedicated fine oil filter is often installed in front of some important components (such as servo valves, precision throttle valves, etc.) to ensure their normal operation in the PALL filter hydraulic system.

Features:

Applications:

Petrochemicals: Petrochemicals are produced through refining and chemical production processes. During these processes, products and intermediate products are separated and recovered. In addition, liquids are purified, and particles are removed from oil field well water and natural gas through filtration. The optical and electronic industries also use separation and purification processes, such as the purification of magnetic tapes, optical discs, and photographic films in manufacturing.

Textile: In the textile industry, polyester is melted and filtered through a wire drawing process. Uniform filtration of the polyester melt is necessary for the production of high-quality textiles. Air compressors also require protective filtration to remove impurities, and compressed gas must undergo oil and water removal through filtration.

Electronics and pharmaceuticals: In the electronics and pharmaceutical industries, reverse osmosis water and deionized water are essential. Pre-treatment and filtration processes are necessary to ensure these waters meet the required standards. Cleaning solutions and glucose used in pharmaceutical production must also undergo pre-treatment and filtration procedures.

Thermal power and nuclear power: Thermal power and nuclear power plants require purified oil for their various systems, including lubrication systems, speed control systems, bypass control systems of gas turbines, and boilers. Dust removal systems, feed pumps, and fans must also undergo purification processes.

Mechanical processing equipment: Various types of equipment require filtration for optimum performance. Paper making machinery, mining machinery, injection molding machines, and large precision machinery require lubrication systems and compressed air purification. Tobacco processing equipment and spraying equipment require dust recovery and filtration.

Railway internal combustion engines and generators: Lubricating oil and engine oil used in railway internal combustion engines and generators require filtration to remove impurities and maintain optimum performance.

Automotive engines and construction machinery: Internal combustion engines require air filters, oil filters, and fuel filters. Construction machinery, ships, and heavy-duty vehicles require different types of hydraulic oil filters, diesel filters, and water filters to ensure proper functioning.

Support and Services:

Our Hydraulic Filter Element product comes with comprehensive technical support and services to ensure that our customers can fully utilize the product's capabilities. Our team of experienced technicians and engineers are readily available to assist with any product-related inquiries or issues that may arise.

We offer product training and education to ensure that our customers have a thorough understanding of the product and its applications. We also provide product maintenance and repair services to ensure that the product is functioning optimally.

Additionally, we offer customization services to tailor the product to our customers' specific needs and requirements. Our goal is to provide exceptional support and services to our customers and ensure their satisfaction with our product.

Packing and Shipping:

Product Packaging:

• The hydraulic filter element will be packaged in a sturdy cardboard box to ensure safe transport.
• The filter element will be wrapped in protective material to prevent any damage during shipping.
• The packaging will also include installation instructions and safety precautions for the customer's convenience.

Shipping:

• The hydraulic filter element will be shipped via a reliable courier service.
• The shipping cost will be calculated based on the destination and weight of the product.
• The estimated delivery time will be provided to the customer upon checkout.
• The customer will receive a tracking number to track the shipment's progress.
