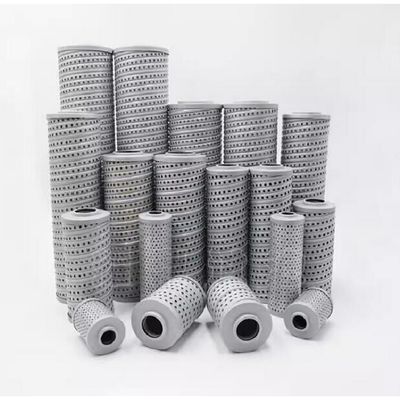

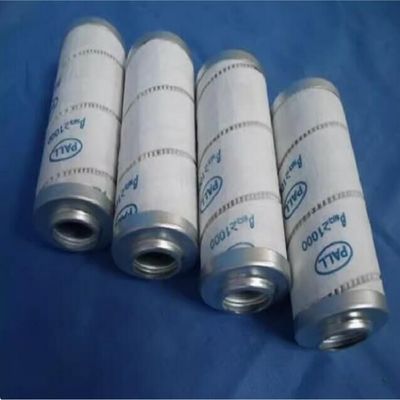

PALL Fluorine Ding Qing Rubber Accuracy Hydraulic Filter Elements HC2206FCZ3Z

Product Description:

As one of Pall's main products, PALL filters have been widely applied in various industries including biopharmaceuticals, food and beverage, chemical, electronics and aerospace. PALL filters come in different models to meet the diverse application scenarios and requirements.

PALL filter cartridges are commonly used in hydraulic systems, either as standalone filtration system or installed at different positions within the system, such as at the pump's suction port, outlet oil circuit, return oil circuit and branch oil circuit. The main function of PALL filters is to protect hydraulic pumps from larger impurities and particles, filter out pollutants that could potentially enter valve components, and ensure the smooth running of important parts like servo valves and precision throttle valves.

Furthermore, the model specifications of PALL filter cartridges include filtration accuracy and size, which are significant parameters to ensure the optimal performance of the system. The selection of filtration accuracy depends on the specific requirements and working conditions of the system, while the height of the filter element is also an important dimension. For example, some models have a filter element height of 8 inches (203.2mm in millimeters).

In summary, the technical specifications and application guidelines of PALL filter cartridge include information on its application field, filter material, filtration accuracy, size and other relevant aspects.

Features:

PALL filter cartridge has various model attributes, which are necessary for identifying different filter cartridge models. The different model attributes include:

The PALL filter cartridge model starts with HC and is followed by a series of numbers and letters such as HC2207FKP6H and HC8314KFF11H. The combination of numbers and letters is used to identify different filter cartridge models. For example, 8314 in HC8314KFF11H represents the serial number of the filter element, while 2207FKP6H in HC2207FKP6H is a specific model of the filter element.

The filtration ratio of PALL filter element is β ≥ 200, and it comes equipped with a metal mesh inside to enhance the filtration effect and protect the filter element.

The height of the filter element is usually expressed in inches, for example, an 8-inch height is 203.2mm in millimeters. This number is also reflected in the model and is used to indicate the specific size of the filter element.

The seal of PALL filter element can use different rubber materials, such as nitrile rubber (H mark), ethylene or propylene (J), chloroprene rubber (P), fluororubber (Z), etc., to meet different working conditions and medium requirements.

In addition to the above attributes, the performance indicators of PALL filter include filtration accuracy, working pressure, working medium, and working temperature. These indicators cover a wide range and are suitable for various hydraulic oils, phosphate hydraulic oils, emulsions, and water ethylene glycol media. The working temperature range is from -30℃ to+110℃.

Technical Parameters:

Applications:

These Hydraulic Filter Elements are suitable for a wide range of applications and scenarios, including industrial machinery, hydraulic systems, and heavy-duty equipment. They are particularly useful in applications where high levels of cleanliness are required, such as in the manufacturing of semiconductors, pharmaceuticals, and food and beverage products.

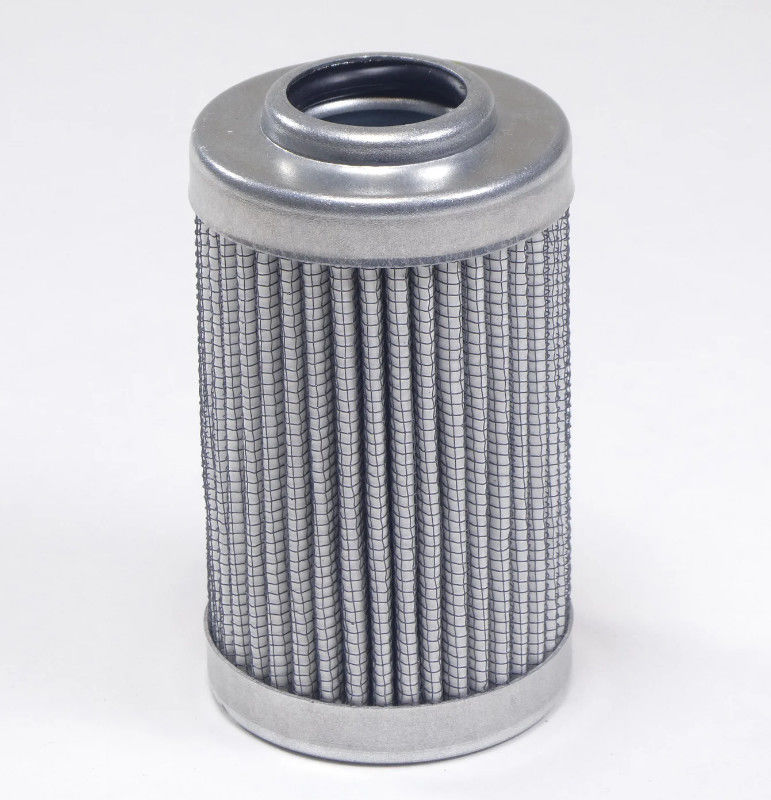

The HC8314FCP39H filter element is a folding filter cartridge that is highly efficient at removing contaminants and impurities from hydraulic fluids. With a filtering accuracy of 1 μ~100 μ M, it is capable of capturing even the smallest particles and preventing them from causing damage to hydraulic components. The filter element can withstand work pressures ranging from 21bar-210bar, and it has a working temperature range of -30 ℃~+110 ℃.

The sealing material used in these filter elements is Fluorine Ring Ding Qing Rubber, which provides excellent resistance to high temperatures and chemicals. This makes these filter elements suitable for use in harsh environments where other materials may not be able to withstand the conditions. With a supply ability of 5000PCs per month, these filter elements are readily available to meet the needs of various industries and applications.

In summary, PALL Hydraulic Filter Elements, specifically the HC8314FCP39H model, are precision filtration products that provide exceptional accuracy and efficiency in removing contaminants from hydraulic fluids. Their applications and scenarios are vast, and they are particularly useful in industries where high levels of cleanliness and precision are required. With a wide range of supply, packaging, and pricing options, these filter elements are an excellent choice for anyone looking for high-quality filtration solutions.

Key Features:

• Precision filter element with exceptional filtration accuracy
• Folding filter cartridge design for high efficiency
• Can withstand high work pressures and temperatures
• Fluorine Ring Ding Qing Rubber sealing material for chemical and heat resistance
• Wide range of applications and scenarios
• CE certified and made in China
• Minimum order quantity of 1 with negotiable pricing and packaging options
• Supply ability of 5000PCs per month

Product Application Occasions and Scenarios:

• Industrial machinery
• Hydraulic systems
• Heavy-duty equipment
• Semiconductor manufacturing
• Pharmaceuticals manufacturing
• Food and beverage manufacturing
• Harsh environments with high temperatures and chemicals

Technical Specifications:

• Brand Name: PALL
• Model Number: HC8314FCP39H
• Place of Origin: China
• Certification: CE
• Minimum Order Quantity: 1
• Price: Negotiation
• Packaging Details: Carton /As The Clients Require
• Delivery Time: 1-7Work Days After Payment
• Payment Terms: T/T, Western Union,Paypal
• Supply Ability: 5000PCs per month
• Accuracy: Z-1 μ M, P-3 μ M, N-6 μ M, S-10 μ M, T-25 μ M
• Work pressure: 21bar-210bar
• Sealing material: Fluorine Ring Ding Qing Rubber
• Working temperature: -30 ℃~+110 ℃
• Filtering accuracy: 1 μ~100 μ M

Packing and Shipping:

Product Packaging:

• Hydraulic Filter Element
• Protective packaging

Shipping:

• Ships within 1-2 business days
• Free standard shipping within the United States
• International shipping available
• Tracking information provided
