Place of Origin: | China |
Brand Name: | DKE |
Certification: | CE |
Model Number: | 2W500-50 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Material Of Oil Seal: | NBR, EPDM Or VITON | Voltage Range: | ±10% |
---|---|---|---|
Working Medium: | Air, Water, Oil, Gas ,Fuel | Motion Pattern: | Direct Drive Type |
Operating Temperature Range: | -5~+80℃ | Operation Fluid Viscosity: | 20 CST Below |
Highlight: | Water Vapor Control Switch Solenoid Valve,2 Inch Solenoid Valve,2W500-50 Solenoid Valve |

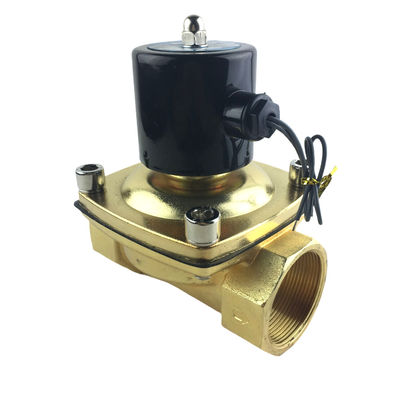

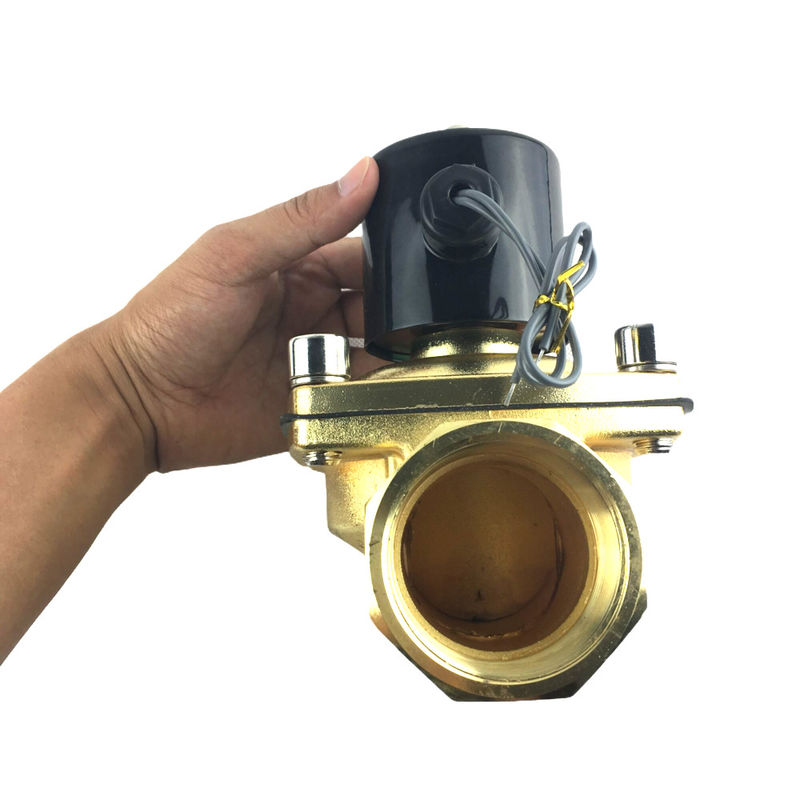

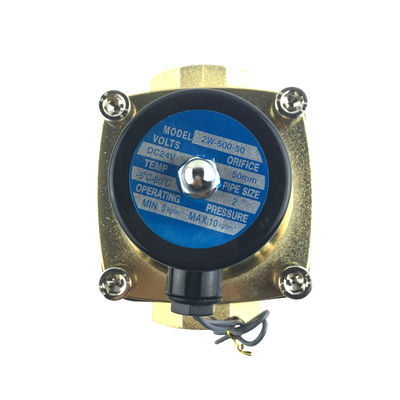

The product is made with high-quality materials that ensure its durability and longevity. The oil seal is made from NBR, EPDM, or VITON, which can withstand a wide range of temperatures and resist corrosion and wear. The operating temperature range for this solenoid valve is -5~+80℃, allowing it to function efficiently in different environments.
The solenoid valve operates with a voltage range of ±10%, making it suitable for use with different power sources. The product is also designed to handle fluids with a viscosity of 20 CST below. With its direct drive type motion pattern, the solenoid valve can open and close quickly, making it ideal for applications that require fast fluid control.
The 2W Series Solenoid Valve is easy to install and use, thanks to its simple design and compact size. It can be mounted in any position and requires minimal maintenance, making it a cost-effective solution for fluid control systems.
In summary, the 2W Series Solenoid Valve is a reliable and efficient water pneumatic electric solenoid valve that offers excellent value for money. It is made with high-quality materials, operates over a wide temperature range, and is suitable for use with different fluid types. Its direct drive type motion pattern ensures fast and precise fluid control, making it an ideal solution for a wide range of industrial and commercial applications.
2W Series | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
2S Series | 2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 |
Orifice Size | 2.5mm | 2.5mm | 4mm | 16mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm |
CV Value | 0.23 | 0.6 | 4.8 | 12 | 24 | 29 | 48 | |||
Port Size | 1/8'' | 1/4'' | 3/8'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' |
Body Material | Brass (2W Series) | |||||||||
Stainless Steel (2S Series) | ||||||||||
Seal Material | NBR (Standard), EPDM, VITON (Optional) | |||||||||
Function | 2 Way Normally Closed (Standard) | |||||||||
2 Way Normally Open (Optional) | ||||||||||
Operation | Direct Acting | Direct Lift Diaphragm | ||||||||
Media | Water, Air, Oil, Gas, etc | |||||||||
Fluid Viscosity | 20 CST below | |||||||||
Pressure Range | 0 to 1 MPa | |||||||||
Temperature Range | NBR: -5 to +80 ºC | |||||||||
EPDM: -5 to +120 ºC | ||||||||||
VITON: -10 to +150 ºC | ||||||||||
Voltage | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
1. The valve is directly-acting, conductive, and normally closed. This means that it is ideal for applications where the valve must be quickly and reliably closed in case of an emergency or power loss.
2. The valve body material is made from high-strength forged brass. This material is extremely durable and can withstand high pressures and temperatures, making it ideal for use in a variety of industrial settings.
3. The valve can be operated directly without any additional pressure or actuation. This feature simplifies the assembly process and reduces the overall cost of the system.
4. The valve is designed to be compact and easy to assemble. Its small size makes it ideal for use in tight spaces where space is at a premium.
5. The standard voltage for the valve is 24VDC, 110VAC, or 220VAC, with a voltage tolerance of ±10% for AC voltage and ±1% for DC voltage. This ensures that the valve can be used in a wide range of applications, even in areas with unstable voltage.
6. Other special AC/DC voltages can be made to order according to the client's specific requirements.
7. The valve is available with threads in BSPT, NPT, or BSP configurations, making it compatible with a wide range of piping systems.
8. The standard product fluid temperature is 80°C (NBR). However, the valve is also available in other temperature ranges such as fluororubber (130°C), silicone (130°C), and PTFE (185°C) to suit a variety of industrial applications.
9. The DIN43650A connector coil is interchangeable, making it easy to replace and maintain the valve.
The 2 2 Way Solenoid Valve product comes with comprehensive technical support and services, including:
Our team of experienced technicians is available to provide expert guidance and support throughout the entire product lifecycle.
Product Packaging:
Shipping:
