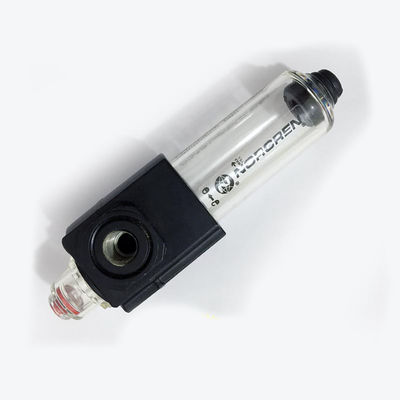

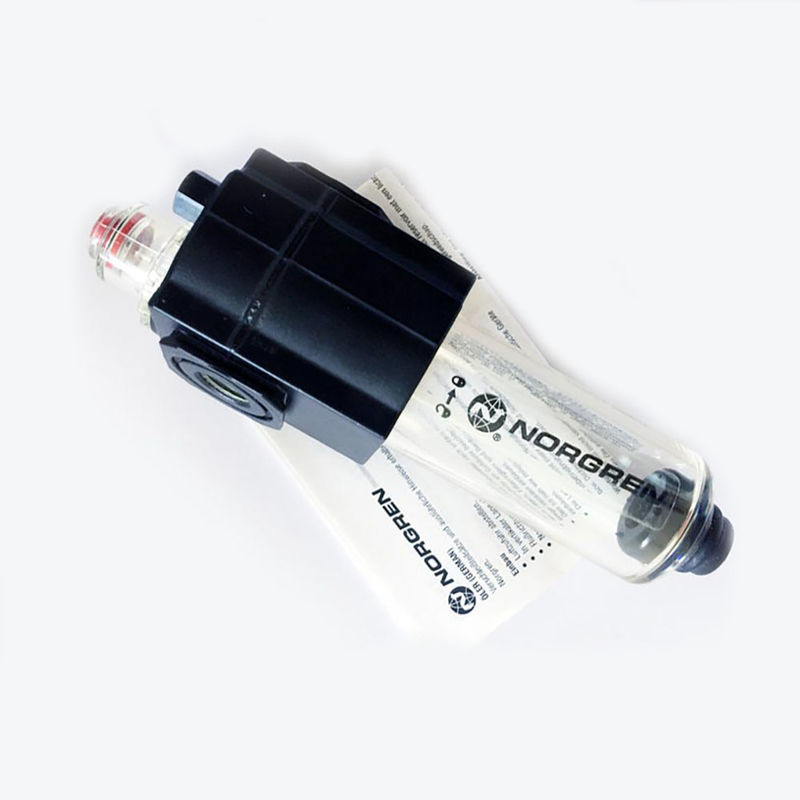

Name: Excelon micro fog lubricator, L72M-2GP-ETN , plastic bowl, closed, G1/4
Brand: YW DKE TRADING COMPANY
SKU: L72M-2GP-ETN
Availability: InStock

Home Products Pneumatic Filter Regulator Lubricator

Excelon micro fog lubricator, L72M-2GP-ETN , plastic bowl, closed, G1/4

Product Details:

Place of Origin:	China
Brand Name:	NORGREN
Certification:	CE
Model Number:	L72M-2GP-ETN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000PCs per month

Contact Now

Detailed Product Description

Port Size:	G1/4	Materials - Elastomers:	CR And NBR
Maximum Inlet Pressure:	10 Bar	Dimensions - Height:	49 Mm
Max. Hysteresis:	0.2	Operating Temperature:	-34 ... 50 °C, -30 ... 122 °F
Dimensions - Length:	151 Mm	Dimensions - Width:	51MM
Series:	Excelon

Lubricator

Temperature range -20°C to +50°C
Sight feed dome enables 360° visibility for ease of drip rate setting
Transparent polycarbonate bowl

Oil Fog Type

Standard lubrication
Provides automatic lubrication of pneumatic devices
Units can be identified by a green insert in the sight feed dome (as illustrated)

Micro Fog Type

Superior lubrication
For lengthy, complex piping systems and multiple points of application
Units can be identified by a red insert in the sight feed dome

Note

Typical flow @ 6 bar inlet pressure and 0.5 bar pressure drop.

Technical Parameters:

Medium	Compressed air
Operating Temperature	-34 ... 50 °C, -30 ... 122 °F
Port Size	G1/4
Maximum Inlet Pressure	10 bar
Lubricator Fog Type	Micro fog
Flow	51 scfm
Materials - Body	Zinc
Materials - Bowl	Polycarbonate
Materials - Elastomers	CR and NBR
Country of Origin	Mexico
Dimensions - Height	49 mm
Dimensions - Length	151 mm
Dimensions - Width	51 mm
Weight	0.49 kg
Range	L72M
Series	Excelon
Brand	IMI Norgren
