Product Description:
The Gas Source Properties of NORGREN
There are several important aspects to consider when it comes to the gas source properties of NORGREN, a world-renowned manufacturer and supplier of pneumatic products:
Dry Compressed Air
Norgren pneumatic components, such as pneumatic cylinders, require the use of dry compressed air. Compressed air containing water may cause the hydraulic oil in the pneumatic booster cylinder to deteriorate or rust.
Pressure Range
The air source pressure should be maintained within the range of 4-7 kilograms to ensure the normal operation of pneumatic components. Excessive pressure may cause cylinder overload or damage to seals, thereby reducing their service life by 12.
Pressure Stability
The stability of the gas source pressure is very important. Unstable pressure can lead to problems such as abnormal movement or slow movement speed.
Interface and Trachea
The air source interface should not be too small, and the trachea should be as short as possible to reduce the impact on the performance of pneumatic components.
Introduction of Norgren Company
Norgren is a company that provides a full range of pneumatic control and automation products. It is a world-renowned manufacturer and supplier of pneumatic products and holds ISO9001 quality standard certificate. The company is located in 26 countries and provides services including pneumatic control circuit design, technical support, and product manufacturing and processing.
These gas source properties help ensure the stability and reliability of Norgren pneumatic components in various applications. Trusting in Norgren products means you can have peace of mind knowing you have high-quality products designed for optimal performance.

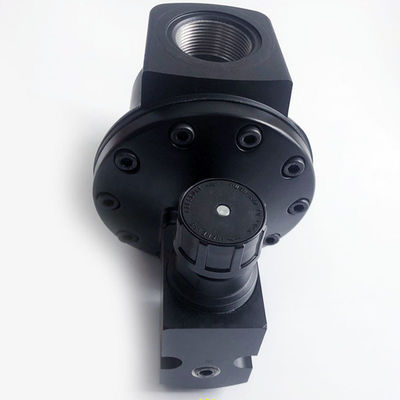

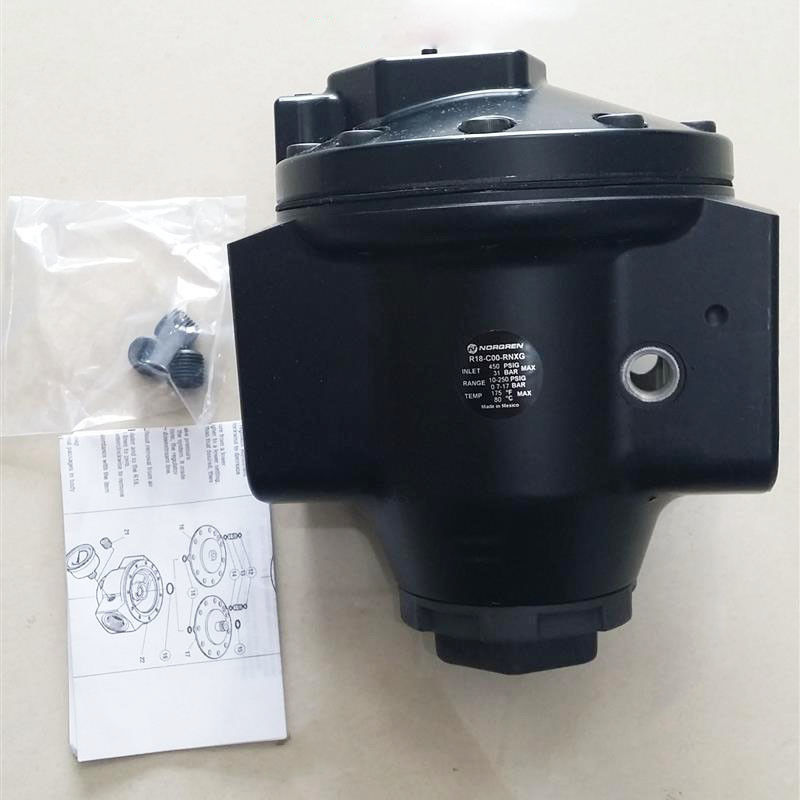

Technical Parameters:
| Medium |
Compressed air |
| Operating Temperature |
-20 ... 80 °C, -4 ... 176 °F |
| Port Size |
G2 |
| Gauge Port |
G1/4 |
| Maximum Inlet Pressure |
31 bar |
| Relieving / Non Relieving |
Relieving |
| Flow |
2000 scfm |
| Materials - Body |
Aluminium alloy |
| Materials - Bonnet |
Aluminium alloy |
| Materials - Elastomers |
Nitrile rubber |
| Country of Origin |
Mexico |
| Dimensions - Height |
140 mm |
| Dimensions - Length |
184 mm |
| Dimensions - Width |
152 mm |
| Weight |
2.99 kg |
| Range |
R18 |
| Brand |
IMI Norgren |
Packing and Shipping:
Product Packaging:
- 1 Pneumatic Filter Regulator Lubricator unit
- Mounting bracket and hardware
- Instruction manual
Shipping:
- Ships within 1-2 business days
- Free standard shipping within the continental US
- International shipping available for an additional fee
- Tracking information provided
