Product Description:

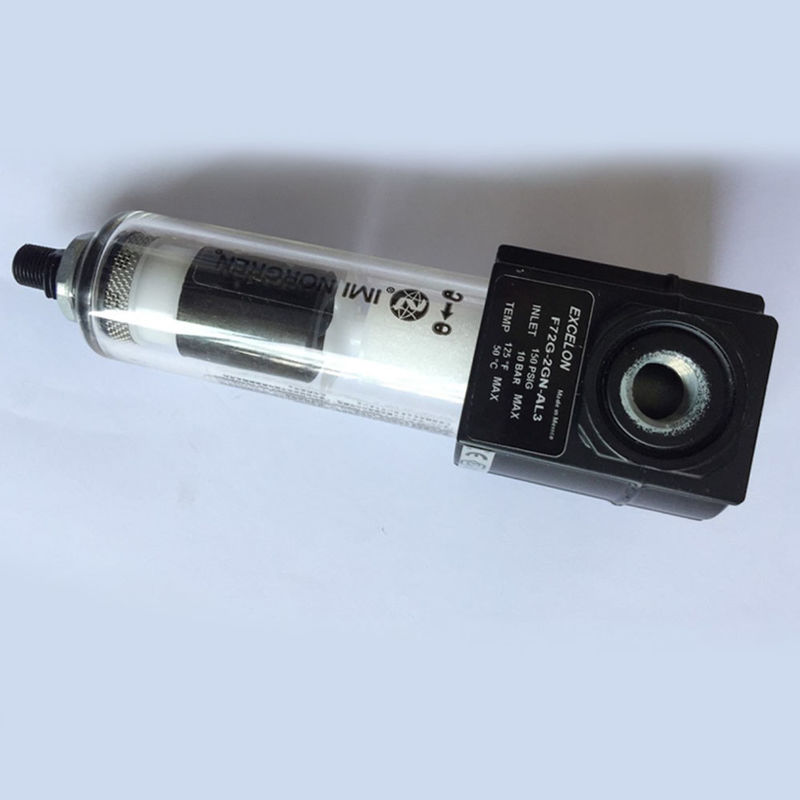

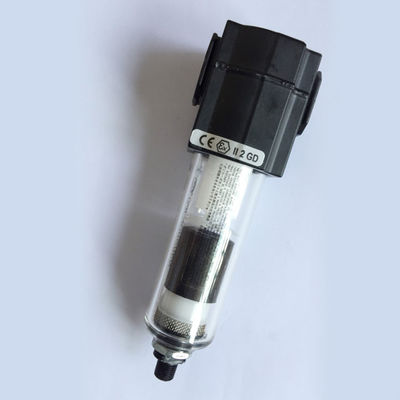

The Noron gas source filter possesses several essential features, including filtration pressure regulation, sturdy structure, stable filtration efficiency, and long service life that make it stand out from other filtration systems.
The Noron gas source filter is mainly designed to eliminate impurities from the medium and protect the normal function of valves and equipment. These filters are commonly installed at the inlet of pressure reducing valves, relief valves, constant water level valves, or other equipment to ensure the smooth running of the entire system.
The filtering and pressure regulating function of the Noron gas source filter plays a crucial role in reducing oil and particulate matter present in the fluid. This essential function is vital in guaranteeing the normal operation of equipment and extending its service life.
Technical Parameters:
| Medium |
Compressed air |
| Operating Temperature |
-34 ... 50 °C, -29 ... 122 °F |
| Port Size |
G1/4 |
| Filter Element |
5 μm |
| Maximum Inlet Pressure |
10 bar |
| Flow |
59 scfm |
| Materials - Body |
Zinc pressure diecast |
| Materials - Bowl |
Polycarbonate |
| Materials - Elastomers |
Neoprene |
| Materials - Filter Element |
Sintered polypropylene |
| Country of Origin |
Germany |
| Range |
F72G |
| Series |
Excelon |
| Brand |
IMI Norgren |
Applications:
Modern mechanical processing relies heavily on the use of emulsions or cooling oils as cooling fluids. However, the generation of oil mist and fumes can have detrimental effects on the production environment and the physical and mental health of factory workers. That's where Noron gas source filters come in to play - they are widely used to address these concerns.
In addition to reducing oil mist and fumes and protecting employee health, Noron gas source filters have a number of useful characteristics that make them valuable in many contexts. For example, they are ideal for use in general ventilation systems thanks to their large filtration area, low resistance, and long service life.
If your factory or production line relies on the use of emulsions or cooling oils, or if you need to implement a general ventilation system in your workspace, Noron gas source filters are an excellent choice. They will help to keep your air clean while protecting your employees and improving overall productivity.
Packing and Shipping:
Product Packaging:
- 1 Pneumatic Filter Regulator Lubricator unit
- Mounting bracket and hardware
- Instruction manual
Shipping:
- Product will be shipped within 1-2 business days of order confirmation
- Shipping options available: Standard, Expedited, or Overnight
- Shipping rates will vary based on location and shipping speed selected
- Tracking information will be provided once the product has shipped
