Product Description:

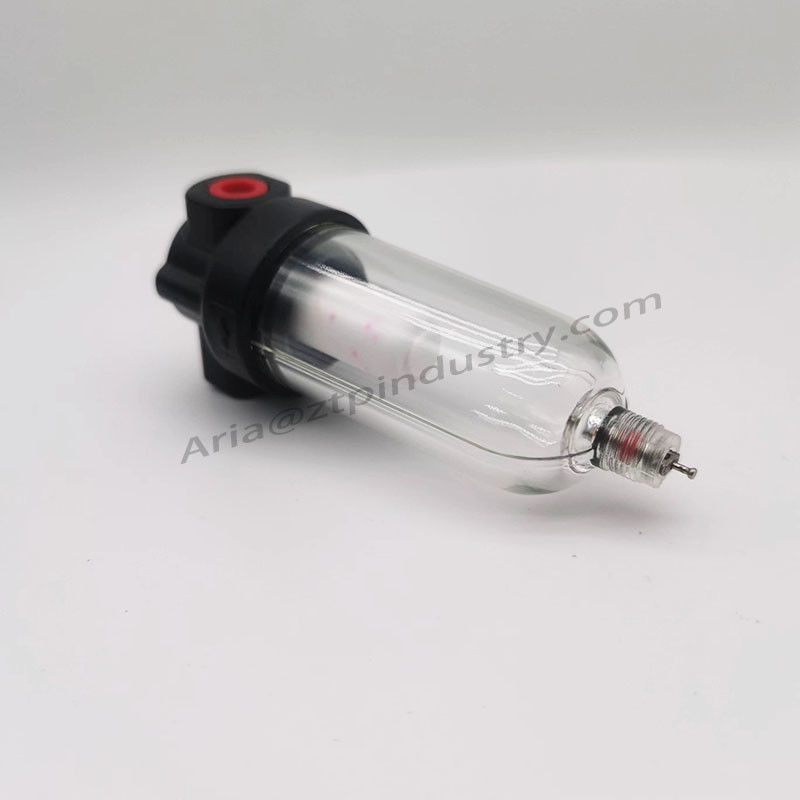

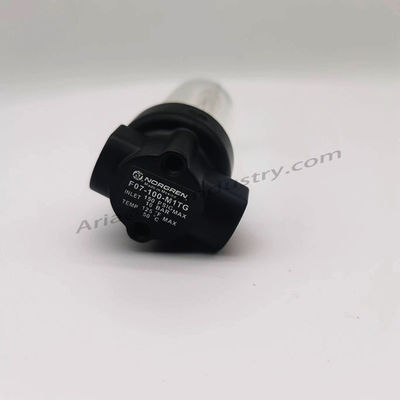

Properties of Noron Gas Source Filter
The Noron gas source filter has several important properties, including filtration pressure regulation, sturdy structure, stable filtration efficiency, and long service life. These features make the Noron gas source filter a reliable choice for a variety of applications.
Noron gas source filters are typically installed at the inlet of pressure reducing valves, relief valves, constant water level valves, or other equipment. The primary function of these filters is to eliminate impurities in the medium and protect the proper functioning of valves and equipment. The filtering and pressure regulating capabilities of the Noron gas source filter can effectively reduce oxidation, oil, and particulate matter in the fluid, helping to ensure the normal operation of the equipment and extending its service life.
Technical Parameters:
| Medium |
Compressed air |
| Operating Temperature |
-34 ... 50 °C, -29 ... 122 °F |
| Port Size |
G1/8 |
| Filter Element |
5 μm |
| Maximum Inlet Pressure |
10 bar |
| Flow |
19 scfm |
| Materials - Body |
Zinc alloy |
| Materials - Bowl |
Zinc alloy |
| Materials - Elastomers |
Nitrile rubber |
| Materials - Filter Element |
Sintered polyethylene |
| Country of Origin |
Mexico |
| Range |
F07 |
| Series |
07 Series |
| Brand |
IMI Norgren |
|
Applications:
Modern mechanical processing often involves the use of emulsions or cooling oils as cooling fluids, which can lead to the production of oil mist and fumes in the work environment. This can be a serious health hazard for employees working in such an environment. To address this problem, Noron gas source filters are widely used.
These filters are highly effective at reducing the generation of oil mist and fumes, thus improving the production environment of factories and protecting the physical and mental health of employees. The use of Noron gas source filters is especially recommended for those who work in industries that require the use of emulsions or cooling oils.
Noron gas source filters are not only useful in industries that involve the use of emulsions or cooling oils, but they are also commonly used in general ventilation systems. The filters' large filtration area, low resistance, and long service life make them a popular choice among industrial professionals. In addition, they are capable of significantly improving the air quality of the workplace.
Packing and Shipping:
Product Packaging:
- 1 Pneumatic Filter Regulator Lubricator
- Mounting bracket and hardware
- Instruction manual
Shipping Information:
- Shipping weight: 2 lbs
- Shipping dimensions: 8"x6"x4"
- Shipping carrier: UPS
