Place of Origin: | China |
Brand Name: | FESTO |
Certification: | CE |

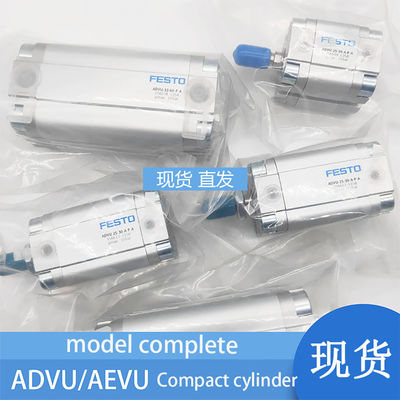

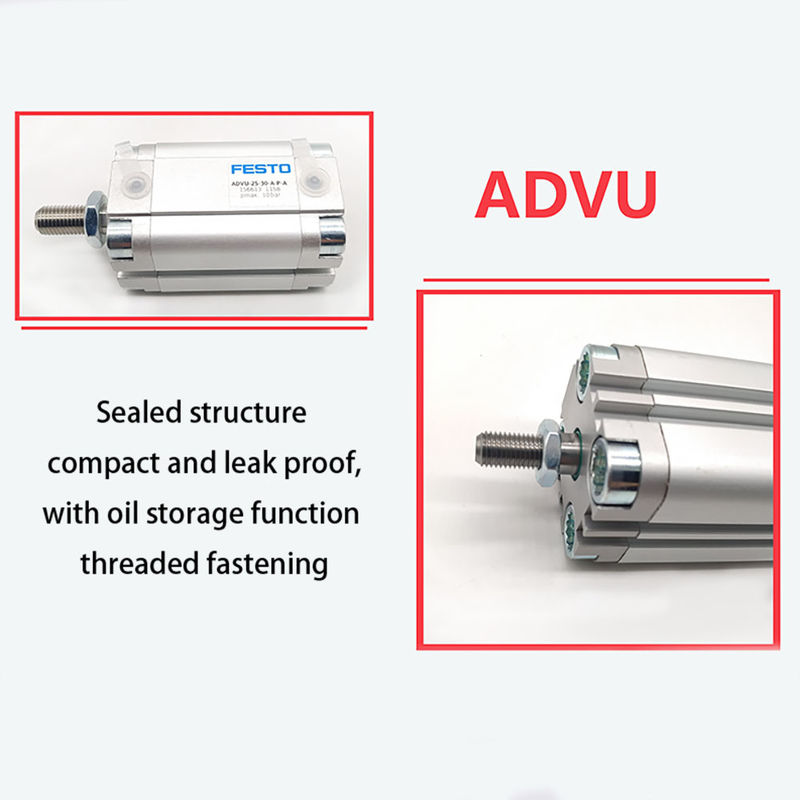

Model Number: | ADVU-25-20-A-P-A |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Ambient Temperature: | -20 °C ... 80 °C | Material Cylinder Barrel: | Wrought Aluminium Alloy |
---|---|---|---|
Operating Pressure: | 0.12 MPa ... 1 MPa | Piston-rod End Weight Weight: | Male Thread |
Maximum Operating Pressure: | 7 Bar | Pneumatic Connection: | M5 |
For versatility, Festo cylinders offer several different structural designs. These include options with double piston rods, double pistons, single piston rods, buffer, and non-buffer types. Dual piston rod cylinders come in two different forms for fixation of the cylinder body and piston rod fixation, making them suitable for equipment of varying sizes and requirements.
The Festo cylinder's working principle uses compressed air to enter two chambers of the cylinder. One chamber serves for intake, while the other serves for exhaust. This compressed air powers the piston rod, resulting in bidirectional motion of the worktable.
Festo cylinders are applicable to a broad range of industrial automation equipment. This includes small equipment, medium, and large equipment for automated production lines, robot arms, and more.
Air Cylinder | Piston-rod end |
Pneumatic Cylinder | Weight |
Linear Air Cylinder | Weight |
Material cylinder barrel | Wrought Aluminium Alloy |
Pneumatic connection | M5 |
Ambient temperature | -20 °C ... 80 °C |
Maximum Operating Pressure | 7 Bar |
Operating pressure | 0.12 MPa ... 1 MPa |
The Festo cylinder is engineered using high-quality materials that offer significant strength and stiffness. As a result, it can effectively endure and withstand large loads without any notable failures or malfunctions.
One of the primary benefits of investing in the Festo cylinder is its easily replaceable liner made from wear-resistant materials. Any necessary repairs or replacements are cost-effective, timely, and importantly, extend its overall service life.
The cylinder operates using air as its working medium, which significantly increases its safety both in terms of reducing burn and explosions-related risks. Moreover, environmental pollution from exhaust treatment is markedly reduced, making it an ideal product for responsible, eco-friendly operations.
Product Packaging:
The Piston Pneumatic Cylinder will be packaged in a sturdy cardboard box with bubble wrap to ensure safe transportation.
Shipping:
Shipping will be handled by our trusted courier partner. The product will be delivered within 3-5 business days within the United States and 5-7 business days for international orders. Shipping fees may vary depending on the location.
