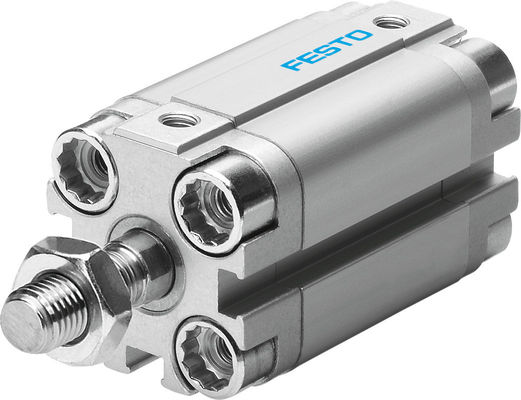

Product Description:
The FESTO cylinder ADVU series is a versatile piece of equipment with several main attributes worth highlighting.
Structural Features
One of the standout features of the ADVU series cylinder is its modular design, which allows for easy installation and a compact structure. To detect the position of the cylinder stroke, a magnetic ring is included with the piston, while a magnetic switch on the cylinder barrel controls the reciprocating motion without the need for extra valves or switches.
Performance Parameters
The ADVU series cylinders boast several impressive performance parameters:
- Stroke: The ADVU series offers a variety of stroke options varying from 40 mm to 100 mm. For example, ADVU-100-80-P-A model has 80 mm stroke length.
- Piston diameter: Available in ranges from 32 mm to 100 mm, the ADVU series has a piston diameter of 32 mm for ADVU-32-40-A-P-A, and 100 mm for ADVU-100-80-P-A.
- Working pressure: With a working pressure range of 0.6 to 10 bar, ADVU-100-80-P-A model operates at 0.6 to 10 bar.
- Buffer Device: Elastic buffer rings or plates are equipped at both ends of the cylinder to reduce impact and absorb residual energy.
Application Scenarios
The highly compact ADVU cylinder series has wide application scenarios in various fields, including automation control, robotics, semiconductor manufacturing, printing, and more. The cylinder's ease of installation, compact structure, and high-performance capabilities make it a popular choice for various industries.
Technical Parameters
Additional technical parameters of FESTO cylinder ADVU series include:
- Theoretical force value: For instance, ADVU-63-30-A-P-A produces a theoretical force value of 1870 N when operating at 6 bar.
- Buffer device: Elastic buffer rings or pads at both ends of the cylinder help to reduce impact and vibration.
Installation and Maintenance
The FESTO cylinder ADVU series comes with complete installation accessories and several applicable installation forms, making installation easy. Maintenance is also relatively simple, requiring only periodic checks on the status of the seals and buffer devices.
Overall, the FESTO cylinder ADVU series stands out in the automation and industrial control fields due to its flexibility, compact design, excellent performance, and broad range of application scenarios.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
Linear Air Cylinder / Air Linear Actuator / Festo thin cylinder |
| Operating Pressure |
0.12 MPa - 1 MPa |
| Connection Method |
G1/8 Male Thread |
| Piston-Rod End |
|
| Weight |
|
| Ambient Temperature |
-20°C - 80°C |
| Material Cylinder Barrel |
Wrought Aluminium Alloy |
| Design |
Piston Piston Rod |
Applications:
The FESTO ADVU-12 Pneumatic Cylinder is designed to operate within a pressure range of 0.12 MPa to 1 MPa. The connection method is G1/8, and the material cylinder barrel is made up of wrought aluminium alloy. The ambient temperature range for this pneumatic cylinder is between -20°C to 80°C. The piston-rod end has a male thread and a weight that makes it perfect for various industrial applications.
The FESTO ADVU-12 Pneumatic Cylinder is an essential component in various industries such as automotive, packaging, food processing, and many more. It is ideal for use in applications that require precise linear motion control, such as conveyor systems and material handling equipment. This cylinder is also suitable for use in applications where high forces are required, such as in the manufacture of heavy machinery.
With its compact design, the FESTO ADVU-12 Pneumatic Cylinder provides a simple and reliable solution for a wide range of industrial applications. It is easy to install and maintain, making it an ideal choice for those who need a reliable and cost-effective pneumatic cylinder. So, whether you need a pneumatic cylinder for your manufacturing process, or you need a reliable actuator for your industrial automation needs, the FESTO ADVU-12 Pneumatic Cylinder is an excellent choice.
Packing and Shipping:

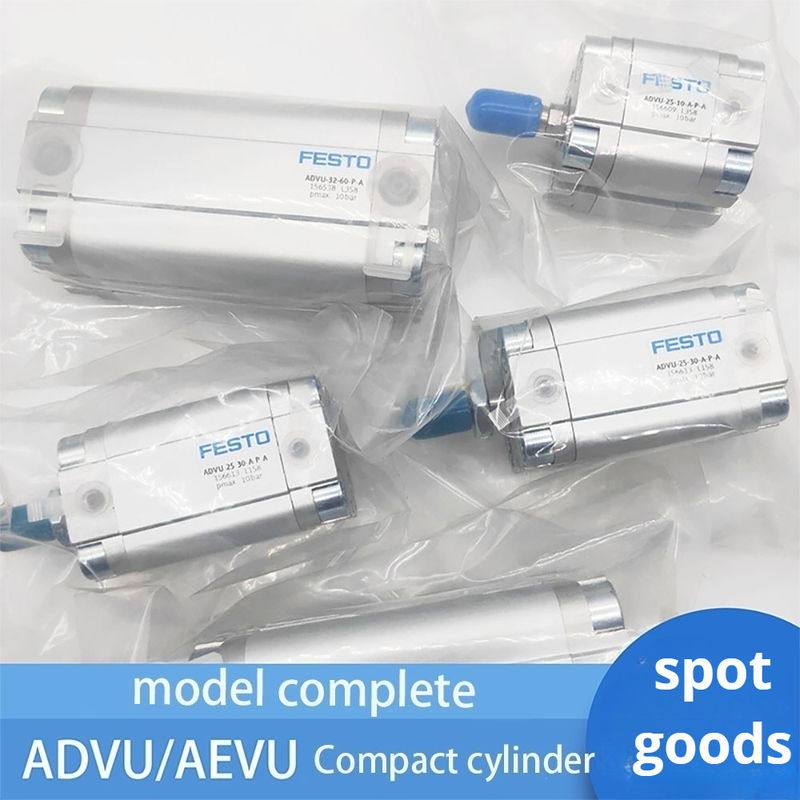

Product Packaging:
- The Piston Pneumatic Cylinder will be securely packed in a cardboard box.
- The box will have cushioning material to prevent damage during transit.
- The product will be accompanied by a user manual and installation instructions.
Shipping:
- The product will be shipped via a reliable courier service.
- The shipping cost will be calculated based on the destination and weight of the package.
- The estimated delivery time will be provided to the customer.
