| Place of Origin: | China |
| Brand Name: | FESTO |
| Certification: | CE |

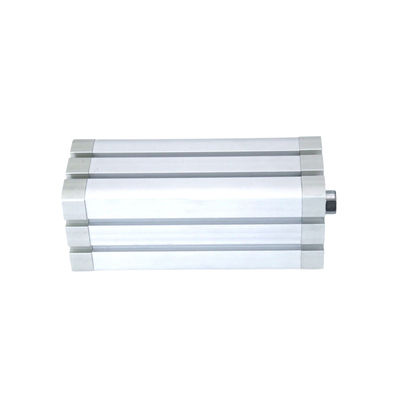

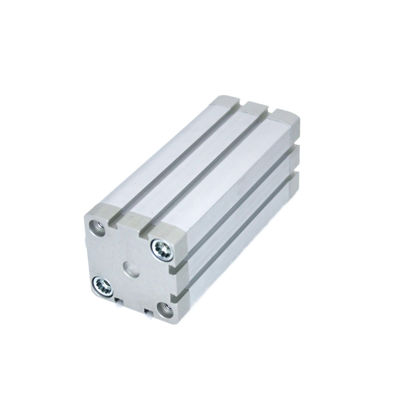

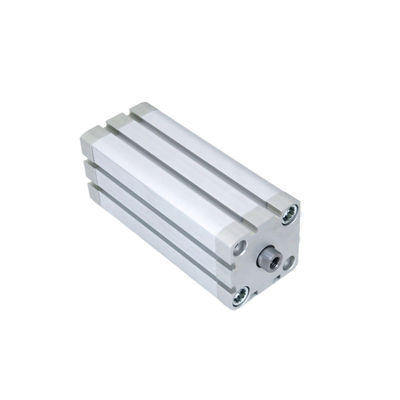

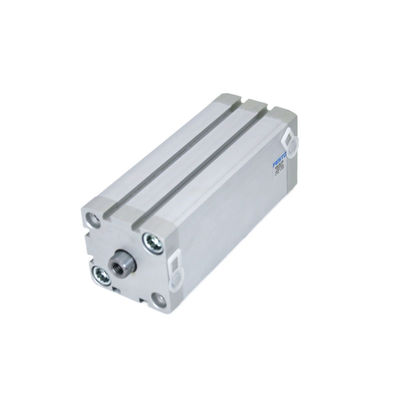

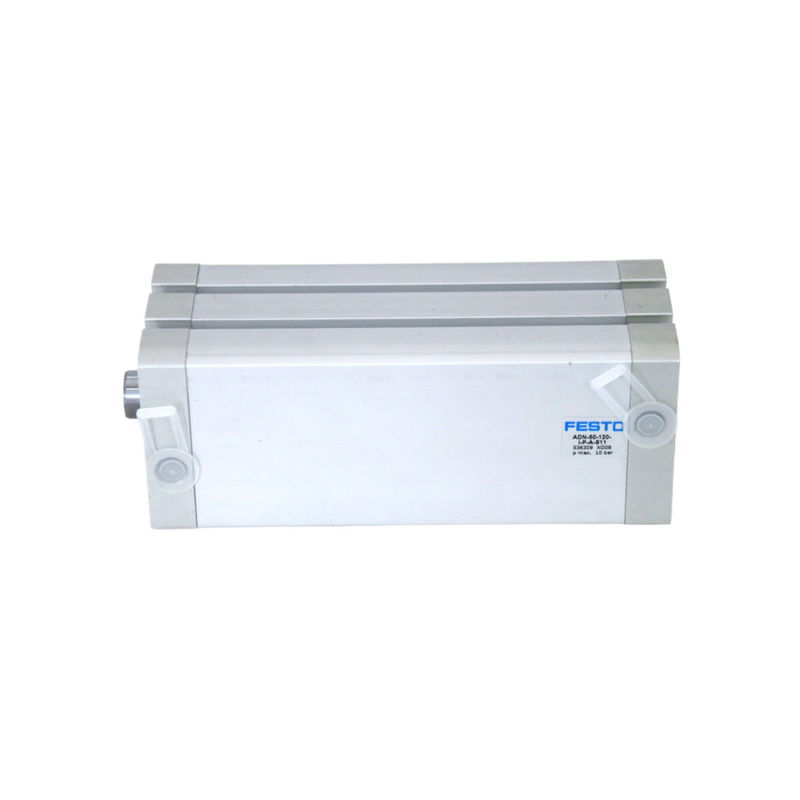

| Model Number: | ADN-50-5-I-P-A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton /As The Clients Require |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 5000 pieces/1Month |
| Operating Pressure: | 0.12 MPa ... 1 MPa | Material Dynamic Seals: | NBR TPE-U(PU) |
|---|---|---|---|
| Material Cylinder Barrel: | Wrought Aluminium Alloy | Ambient Temperature: | -20 °C ... 80 °C |
| Design: | Piston Piston Rod | Piston-rod End Weight Weight: | Male Thread |
The compact cylinders are compliant with the ISO 21287 standard or based on it, depending on the piston diameter. The ADN/AEN is characterized by its compact design and wide range of applications, thanks to the large number of variants. The modular product system allows for the configuration of variants.
The compact cylinders comply with or are based on the ISO 21287 standard, depending on the piston diameter. The ADN/AEN is characterized by its compact design and wide range of application, thanks to the large number of variants. Integrated cushioning for absorbing residual energy and exceptional cushioning characteristics, as well as low friction values, provide long service life.
The comprehensive range of mounting accessories makes it easy to install the compact cylinders. Furthermore, the wide range of variants makes them highly flexible. Proximity switches provide contactless position sensing.
With over 40 years of experience in the cylinder industry, Festo and ADN/AEN are great partners. Optimized manufacturing methods, patented technology, and exceptional cushioning characteristics are all part of what make these cylinders reliable.
| ADN-12-5-I-P-A | 536211 | ADN-12-5-A-P-A | 536204 |
| ADN-12-10-I-P-A | 536212 | ADN-12-10-A-P-A | 536205 |
| ADN-12-15-I-P-A | 536213 | ADN-12-15-A-P-A | 536206 |
| ADN-12-20-I-P-A | 536214 | ADN-12-20-A-P-A | 536207 |
| ADN-12-25-I-P-A | 536215 | ADN-12-25-A-P-A | 536208 |
| ADN-12-30-I-P-A | 536216 | ADN-12-30-A-P-A | 536209 |
| ADN-12-40-I-P-A | 536217 | ADN-12-40-A-P-A | 536210 |
| ADN-16-5-I-P-A | 536226 | ADN-16-5-A-P-A | 536219 |
| ADN-16-10-I-P-A | 536227 | ADN-16-10-A-P-A | 536220 |
| ADN-16-15-I-P-A | 536228 | ADN-16-15-A-P-A | 536221 |
| ADN-16-20-I-P-A | 536229 | ADN-16-20-A-P-A | 536222 |
| ADN-16-25-I-P-A | 536230 | ADN-16-25-A-P-A | 536223 |
| ADN-16-30-I-P-A | 536231 | ADN-16-30-A-P-A | 536224 |
| ADN-16-40-I-P-A | 536232 | ADN-16-40-A-P-A | 536225 |
| ADN-16-50-I-P-A | 536341 | ADN-16-50-A-P-A | 536331 |
| ADN-20-5-I-P-A | 536242 | ADN-20-5-A-P-A | 536234 |
| ADN-20-10-I-P-A | 536243 | ADN-20-10-A-P-A | 536235 |
| ADN-20-15-I-P-A | 536244 | ADN-20-15-A-P-A | 536236 |
| ADN-20-20-I-P-A | 536245 | ADN-20-20-A-P-A | 536237 |
| ADN-20-25-I-P-A | 536246 | ADN-20-25-A-P-A | 536238 |
| ADN-20-30-I-P-A | 536247 | ADN-20-30-A-P-A | 536239 |
| ADN-20-40-I-P-A | 536248 | ADN-20-40-A-P-A | 536240 |
| ADN-20-50-I-P-A | 536249 | ADN-20-50-A-P-A | 536241 |
| ADN-20-60-I-P-A | 536362 | ADN-20-60-A-P-A | 536352 |
| ADN-25-5-I-P-A | 536259 | ADN-25-5-A-P-A | 536251 |
| ADN-25-10-I-P-A | 536260 | ADN-25-10-A-P-A | 536252 |
| ADN-25-15-I-P-A | 536261 | ADN-25-15-A-P-A | 536253 |
| ADN-25-20-I-P-A | 536262 | ADN-25-20-A-P-A | 536254 |
| ADN-25-25-I-P-A | 536263 | ADN-25-25-A-P-A | 536255 |
| ADN-25-30-I-P-A | 536264 | ADN-25-30-A-P-A | 536256 |
| ADN-25-40-I-P-A | 536265 | ADN-25-40-A-P-A | 536257 |
| ADN-25-50-I-P-A | 536266 | ADN-25-50-A-P-A | 536258 |
| ADN-25-60-I-P-A | 536383 | ADN-25-60-A-P-A | 536373 |
| ADN-32-5-I-P-A | 536278 | ADN-32-5-A-P-A | 536268 |
| ADN-32-10-I-P-A | 536279 | ADN-32-10-A-P-A | 536269 |
| ADN-32-15-I-P-A | 536280 | ADN-32-15-A-P-A | 536270 |
| ADN-32-20-I-P-A | 536281 | ADN-32-20-A-P-A | 536271 |
| ADN-32-25-I-P-A | 536282 | ADN-32-25-A-P-A | 536272 |
| ADN-32-30-I-P-A | 536283 | ADN-32-30-A-P-A | 536273 |
| ADN-32-40-I-P-A | 536284 | ADN-32-40-A-P-A | 536274 |
| ADN-32-50-I-P-A | 536285 | ADN-32-50-A-P-A | 536275 |
| ADN-32-60-I-P-A | 536286 | ADN-32-60-A-P-A | 536276 |
| ADN-32-80-I-P-A | 536287 | ADN-32-80-A-P-A | 536277 |
| ADN-40-5-I-P-A | 536299 | ADN-40-5-A-P-A | 536289 |
| ADN-40-10-I-P-A | 536300 | ADN-40-10-A-P-A | 536290 |
| ADN-40-15-I-P-A | 536301 | ADN-40-15-A-P-A | 536291 |
| ADN-40-20-I-P-A | 536302 | ADN-40-20-A-P-A | 536292 |
| ADN-40-25-I-P-A | 536303 | ADN-40-25-A-P-A | 536293 |
| ADN-40-30-I-P-A | 536304 | ADN-40-30-A-P-A | 536294 |
| ADN-40-40-I-P-A | 536305 | ADN-40-40-A-P-A | 536295 |
| ADN-40-50-I-P-A | 536306 | ADN-40-50-A-P-A | 536296 |
| ADN-40-60-I-P-A | 536307 | ADN-40-60-A-P-A | 536297 |
| ADN-40-80-I-P-A | 536308 | ADN-40-80-A-P-A | 536298 |
| ADN-50-5-I-P-A | 536320 | ADN-50-5-A-P-A | 536310 |
| ADN-50-10-I-P-A | 536321 | ADN-50-10-A-P-A | 536311 |
| ADN-50-15-I-P-A | 536322 | ADN-50-15-A-P-A | 536312 |
| ADN-50-20-I-P-A | 536323 | ADN-50-20-A-P-A | 536313 |
| ADN-50-25-I-P-A | 536324 | ADN-50-25-A-P-A | 536314 |
| ADN-50-30-I-P-A | 536325 | ADN-50-30-A-P-A | 536315 |
| ADN-50-40-I-P-A | 536326 | ADN-50-40-A-P-A | 536316 |
| ADN-50-50-I-P-A | 536327 | ADN-50-50-A-P-A | 536317 |
| ADN-50-60-I-P-A | 536328 | ADN-50-60-A-P-A | 536318 |
| ADN-50-80-I-P-A | 536329 | ADN-50-80-A-P-A | 536319 |
| ADN-63-10-I-P-A | 536342 | ADN-63-10-A-P-A | 536332 |
| ADN-63-15-I-P-A | 536343 | ADN-63-15-A-P-A | 536333 |
| ADN-63-20-I-P-A | 536344 | ADN-63-20-A-P-A | 536334 |
| ADN-63-25-I-P-A | 536345 | ADN-63-25-A-P-A | 536335 |
| ADN-63-30-I-P-A | 536346 | ADN-63-30-A-P-A | 536336 |
| ADN-63-40-I-P-A | 536347 | ADN-63-40-A-P-A | 536337 |
| ADN-63-50-I-P-A | 536348 | ADN-63-50-A-P-A | 536338 |
| ADN-63-60-I-P-A | 536349 | ADN-63-60-A-P-A | 536339 |
| ADN-63-80-I-P-A | 536350 | ADN-63-80-A-P-A | 536340 |
| ADN-80-10-I-P-A | 536363 | ADN-80-10-A-P-A | 536353 |
| ADN-80-15-I-P-A | 536364 | ADN-80-15-A-P-A | 536354 |
| ADN-80-20-I-P-A | 536365 | ADN-80-20-A-P-A | 536355 |
| ADN-80-25-I-P-A | 536366 | ADN-80-25-A-P-A | 536356 |
| ADN-80-30-I-P-A | 536367 | ADN-80-30-A-P-A | 536357 |
| ADN-80-40-I-P-A | 536368 | ADN-80-40-A-P-A | 536358 |
| ADN-80-50-I-P-A | 536369 | ADN-80-50-A-P-A | 536359 |
| ADN-80-60-I-P-A | 536370 | ADN-80-60-A-P-A | 536360 |
| ADN-80-80-I-P-A | 536371 | ADN-80-80-A-P-A | 536361 |
| ADN100-10-I-P-A | 536384 | ADN100-10-A-P-A | 536374 |
| ADN-100-15-I-P-A | 536385 | ADN-100-15-A-P-A | 536375 |
| ADN-100-20-I-P-A | 536386 | ADN-100-20-A-P-A | 536376 |
| ADN-100-25-I-P-A | 536387 | ADN-100-25-A-P-A | 536377 |
| ADN-100-30-I-P-A | 536388 | ADN-100-30-A-P-A | 536378 |
| ADN-100-40-I-P-A | 536389 | ADN-100-40-A-P-A | 536379 |
| ADN-100-50-I-P-A | 536390 | ADN-100-50-A-P-A | 536380 |
| ADN-100-60-I-P-A | 536391 | ADN-100-60-A-P-A | 536381 |
| ADN-100-80-I-P-A | 536392 | ADN-100-80-A-P-A | 536382 |
For scenarios that require small loads, low speeds, and small cushioning capacity, our product is an ideal choice. It is designed to handle these situations with ease and efficiency.
If larger loads, higher speeds, and larger cushioning capacity are needed, our product can still perform exceptionally well. Its versatility makes it a reliable option for a wide variety of applications, regardless of the specific requirements.
The Piston Pneumatic Cylinder is a mechanical device that is used to produce force and motion through the use of compressed air. It is commonly used in industrial automation, machinery, and production lines. Our technical support and services for this product include:
- Installation assistance
- Troubleshooting and problem-solving
- Maintenance and repair services
- Customized solutions for specific applications
- Product training and education
Our team of experts is available to provide support and services to ensure that your Piston Pneumatic Cylinder operates at its optimal level, reducing downtime and increasing productivity. Contact us for more information.
Product Packaging:
Shipping:
