Product Description:

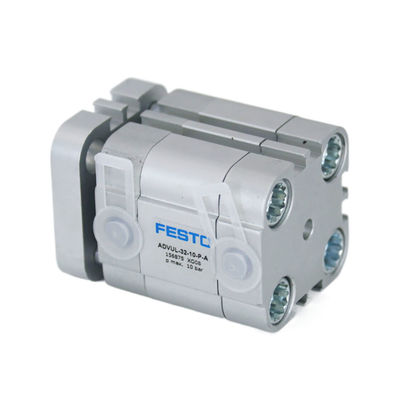

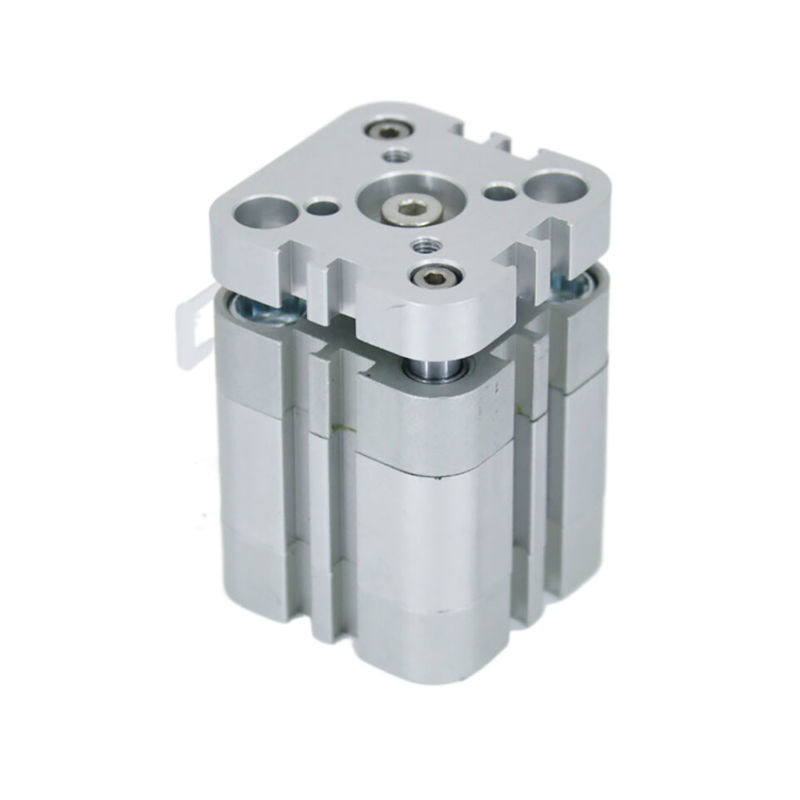

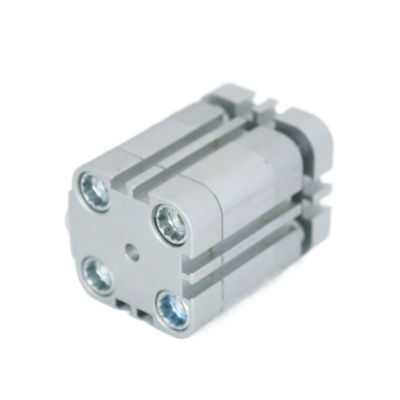

FESTO Cylinder ADVUL Attributes
The ADVUL series cylinders manufactured by FESTO possess various attributes that make them highly sought after in the world of industrial automation. These attributes are listed below:
1. Structural Features
The ADVUL series cylinders are known for their compact structure and easy installation process. They are typically composed of cylinders, directional valves, and speed control valves. This eliminates the need for connecting pipes and pipe joints, thereby reducing overall energy loss.
2. Position Detection
The ADVUL cylinder utilizes a magnetic ring on the piston and a magnetic switch installed directly on the cylinder barrel to detect the position of the cylinder stroke. This allows for efficient control of the reciprocating motion of the cylinder, eliminating the need for additional stroke valves or stroke switches.
3. Buffer Characteristics
The ADVUL cylinder comes equipped with elastic buffer rings/plates located at both ends, providing excellent buffering characteristics. These buffers help to absorb residual energy, reduce friction coefficient and ultimately extend the cylinder's service life, making them ideal for industrial automation applications.
4. Working Mode
ADVUL cylinders are typically double acting cylinders that operate within a working pressure range of 0.6 to 10 bar, and can use lubricated compressed air.
5. Environmental Adaptability
ADVUL cylinders are suitable for use in a wide range of environmental conditions. They can operate within a temperature range of -20 to 80 degrees Celsius, possess a corrosion resistance level of CRC 2, and can withstand various industrial conditions.
6. Derivative Types
The ADVUL cylinder has numerous derivative types that can be customized to meet individual needs. This makes it a highly flexible option for industrial automation applications.
7. Application Areas
The ADVUL cylinder is widely used in a variety of industrial automation scenarios. Due to its compact design, easy installation process, and excellent buffering characteristics, it is suitable for diverse installation forms and usage requirements.
These attributes make FESTO Cylinder ADVUL an ideal choice for industrial automation applications, and it can be used in diverse application areas.
Technical Parameters:
| Pneumatic Cylinder: |
Festo thin cylinder |
| Material dynamic seals: |
NBR TPE-U(PU) |
| Material cylinder barrel: |
Wrought Aluminium Alloy |
| Design: |
Piston Piston Rod |
| Ambient temperature: |
-20 °C ... 80 °C |
| Operating pressure: |
0.12 MPa ... 1 MPa |
| Piston-rod end: |
Male Thread |
| Weight: |
Weight |
Applications:
If you are in need of a reliable and efficient Pneumatic Cylinder, the FESTO ADVUL Piston Pneumatic Cylinder is the perfect solution for you. This product is designed to provide high-quality performance and durability in a wide range of industrial applications. Made from high-quality materials, the ADVUL Pneumatic Cylinder is built to withstand the toughest operating conditions, making it an ideal choice for a variety of industries.
The ADVUL Piston Pneumatic Cylinder is perfect for use in a wide range of applications, including packaging machines, printing machines, food processing machines, and many more. It is designed to provide precise and accurate movement control, making it an ideal choice for applications where precision is key. The air piston cylinder is also perfect for use in applications where a high degree of force is required, making it an ideal choice for heavy-duty industrial applications.
The ADVUL Pneumatic Cylinder is designed to provide reliable and efficient piston actuation. It is made from high-quality materials, including a wrought aluminium alloy cylinder barrel, which ensures its durability and long service life. The male thread design of the piston-rod end ensures a secure and reliable connection to other components, providing a smooth and consistent operation in a wide range of applications.
The ADVUL Piston Pneumatic Cylinder has a wide operating temperature range of -20 °C to 80 °C, making it suitable for use in a variety of different environments. It is also designed to operate at pressures ranging from 0.12 MPa to 1 MPa, providing a high degree of flexibility and versatility in a wide range of industrial applications.
The ADVUL Pneumatic Cylinder is CE certified, ensuring that it meets all necessary safety and quality standards. It has a minimum order quantity of 1 and is available at a negotiable price. The packaging details can be customized to meet the specific requirements of clients, and delivery time is typically between 1 and 7 work days after payment. Payment terms include T/T, Western Union, and Paypal, and the supply ability is 5000 pieces per month.
In summary, the FESTO ADVUL Piston Pneumatic Cylinder is a reliable and efficient product that is perfect for a wide range of industrial applications. It is designed to provide precise and accurate movement control, high degree of force, and efficient piston actuation, making it an ideal choice for heavy-duty industrial applications. With its durable construction, wide operating temperature range, and CE certification, the ADVUL Pneumatic Cylinder is a great investment for any industrial application.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be securely packed in a cardboard box.
- The box will have cushioning material to prevent any damage during transit.
- The product will be accompanied by an instruction manual and warranty card.
Shipping:
- The product will be shipped within 24 hours of order confirmation.
- We offer free shipping within the United States.
- For international shipping, additional charges may apply.
- We use reliable shipping carriers and provide a tracking number for your convenience.
- Please allow 3-5 business days for delivery within the United States and 7-10 business days for international delivery.
