Product Description:

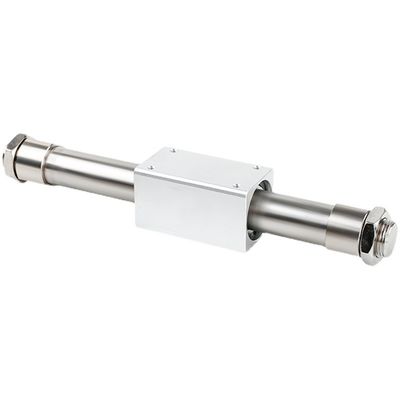

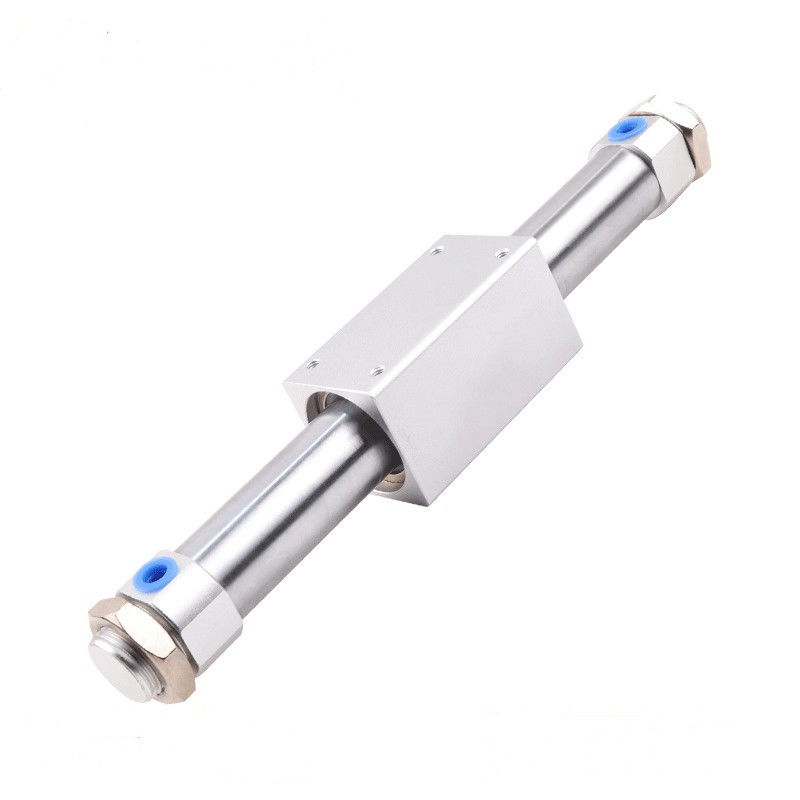

CY1B Rodless Cylinder Specifications
The CY1B rodless cylinder comes with a variety of cylinder diameters, catering to the specific needs of industrial applications. These cylinder diameters include:
- 6mm
- 10mm
- 15mm
- 20mm
- 25mm
- 32mm
- 40mm
- 50mm
- 63mm
The standard travel for this cylinder is 50-1000mm. However, cylinder diameters of 50mm and 63mm support a travel of up to 6ml.
The operating temperature range for the CY1B rodless cylinder is between 5-60℃, making it suitable for use in various environmental conditions.
The piston speed of the cylinder ranges between 50~400mm/s 1, providing precision and quick motion that is critical to many industrial applications.
The usage pressure range for the CY1B rodless cylinder is between 0.18-0.7MPa, ensuring operational safety and efficiency during usage.
Features:
The CY1B rodless cylinder operates through the utilization of high-strength magnetic rings that have been installed onto the piston. A set of these rings are meant to create magnetic fields that pass through the cylinder's thin walls so they can interact with another set of magnetic rings that are situated on the cylinder's outer side. These magnetic rings use their opposite magnetic properties to create a strong suction force.
When air pressure inside the cylinder pushes the piston, the magnetic force of the magnetic ring drives the magnetic ring sleeve outside the cylinder to move along with it. Achieving the right level of thrust for the cylinder piston is crucial in adapting to the suction force of the magnetic ring.
Technical Parameters:
| Product Name |
CY1B magnetic coupling rodless cylinder |
| Product Series |
Magnetically Coupled Rodless Cylinder CY1B Series |
| Product Type |
CY1B rodless cylinder pneumatic magnetic coupling type |
| Operating Pressure |
0.18-0.7 MPa |
| Proof Pressure |
1.05 MPa |
| Ambient and Fluid Temperature |
-10 to 60°C |
| Fluid |
Air |
| Lubrication |
Non-lube |
| Piston Speed |
50 to 400 mm/s |
| Weight |
Varies depending on size and specifications |
Applications:
CY1B Series Rodless Cylinder
The CY1B series rodless cylinder is a great solution for those looking for a cylinder with a small size. With a small volume and requiring less installation space, it allows for direct installation of loads, making the installation process very convenient.
One of the advantages of the CY1B series rodless cylinder is its long stroke. Due to the absence of a piston rod, the movable stroke is longer, making it particularly suitable for application scenarios that require a long stroke.
Another benefit of this cylinder is its high holding force. The structure of rodless cylinders is special and has a large holding force which makes it a favorable option for applications where a high holding force is required.
The CY1B series rodless cylinder also has a good buffering effect. Both ends have rubber to relieve buffering, making adjustments very smooth and precise.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder will be securely packed in a cardboard box.
- Inside the box, the cylinder will be wrapped in bubble wrap to prevent any damage during transportation.
- The packaging will also include an instruction manual for the installation and use of the cylinder.
Shipping:
- The cylinder will be shipped via a reputable courier service to ensure timely and reliable delivery.
- Shipping costs will be calculated based on the delivery address and the weight of the package.
- Delivery times may vary depending on the destination, but we will provide a tracking number so you can keep track of your shipment.
