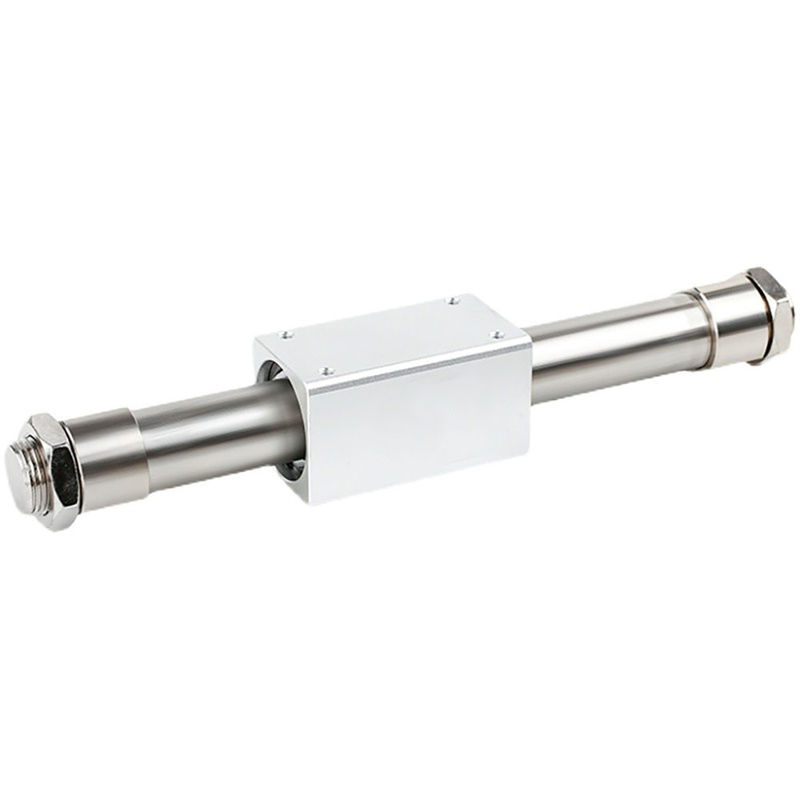

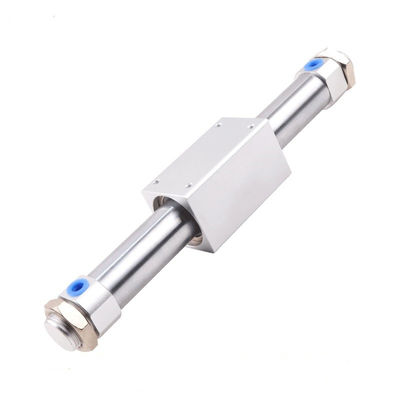

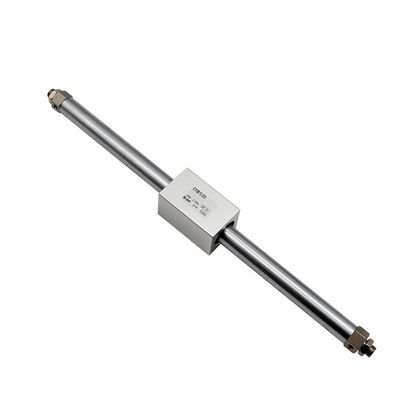

Product Description:
The CY1B rodless cylinder comes with a range of specifications for cylinder diameter, including 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.
Depending on the cylinder diameter, the standard travel distance ranges from 50mm to 1000mm, with a maximum travel of 6ml for cylinder diameters of 50mm and 63mm.
To ensure proper functioning, the operating temperature range for the cylinder is from 5-60 ℃.
The piston speed for the cylinder ranges from 50-400mm/s, providing optimal performance across different applications.
The usage pressure range for the cylinder is 0.18-0.7MPa, making it suitable for use in a variety of industrial settings.
Features:
The CY1B rodless cylinder operates using a unique mechanism that involves high-strength magnetic long-term rings installed on the cylinder piston. These magnetic rings create a strong magnetic field that passes through the thin-walled cylinder and interacts with another set of magnetic rings located on the outside. Due to the opposite magnetic properties of the two sets of magnetic rings, they exert a powerful suction force.
When air is released into the cylinder, it pushes the piston, and the magnetic force drives the magnetic ring sleeve outside of the cylinder to move simultaneously. To ensure efficient operation, the thrust of the cylinder piston must be carefully adapted to the suction force of the magnetic ring.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Rodless Cylinder MY1B Mechanically Jointed Standard Bores |
| Fluid |
Air |
| Proof Pressure |
1.05 MPa |
| Operating Pressure |
0.18-0.7MPA |
| Piston Speed |
50 To 400 Mm/s |
| Ambient and Fluid Temperature |
–10 To 60°C |
| Lubrication |
Non-lube |
| Product Name |
Magnetically Coupled Rodless Cylinder CY1B Series |
| Fluid |
Air |
| Proof Pressure |
1.05 MPa |
| Operating Pressure |
0.18-0.7MPA |
| Piston Speed |
50 To 400 Mm/s |
| Ambient and Fluid Temperature |
–10 To 60°C |
| Lubrication |
Non-lube |
| Product Name |
CY1B rodless cylinder pneumatic magnetic coupling type |
| Fluid |
Air |
| Proof Pressure |
1.05 MPa |
| Operating Pressure |
0.18-0.7MPA |
| Piston Speed |
50 To 400 Mm/s |
| Ambient and Fluid Temperature |
–10 To 60°C |
| Lubrication |
Non-lube |
Applications:
The CY1B series rodless cylinder is an excellent choice for applications that require compact components. Its small volume and minimal installation requirements allow for direct installation of loads, which greatly simplifies the installation process.
Thanks to its unique design featuring the absence of a piston rod, the CY1B series boasts a long stroke that is perfect for applications that require extensive stroke capabilities. With this feature, the CY1B series is ideal for a wide range of applications.
In addition to its impressive stroke capabilities, the CY1B series also has a high holding force due to its special structural design. This means you can trust this cylinder to remain stable even under heavy loads, giving you greater peace of mind and making it an excellent choice for demanding applications.
Finally, the CY1B series is equipped with rubber buffers on both ends which provide a smooth and effective buffering effect. This ensures smoother operation and easier adjustment, making it highly user-friendly.
Packing and Shipping:
Product Packaging:
- The Piston Pneumatic Cylinder will be packaged in a sturdy cardboard box.
- The box will be labeled with the product name and any necessary safety warnings.
- The cylinder will be securely placed inside the box with protective foam padding.
Shipping:
- The packaged Piston Pneumatic Cylinder will be shipped via a reliable courier service.
- The shipping address provided by the customer will be used.
- A tracking number will be provided to the customer to track their shipment.
- Delivery times will vary depending on the destination, but typical shipping times are between 2-7 business days.
