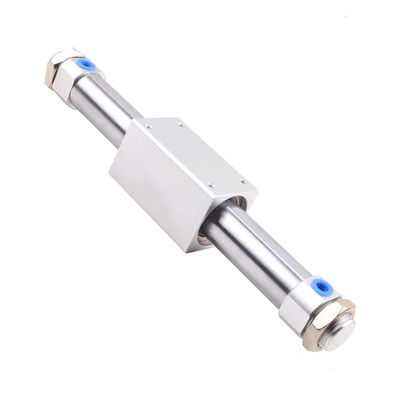

Product Description:
When it comes to selecting the appropriate rodless cylinder, an important specification to consider is the cylinder diameter. The CY1B rodless cylinder offers a range of cylinder diameters to choose from, including 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.
Another crucial aspect to consider is the travel distance. The standard travel for the CY1B rodless cylinder is between 50-1000mm, but for larger cylinder diameters of 50mm and 63mm, the travel can reach up to 6ml.
The operating temperature range, which is the temperature range in which the cylinder operates effectively, is between 5-60 ℃ for the CY1B rodless cylinder.
Additionally, the cylinder's piston speed is another factor to consider during selection. The piston speed for the CY1B model ranges from 50 to 400mm/s.
Last but not least, the usage pressure range, which is the pressure range that the cylinder can safely operate within, is between 0.18-0.7MPa for the CY1B model.
Features:

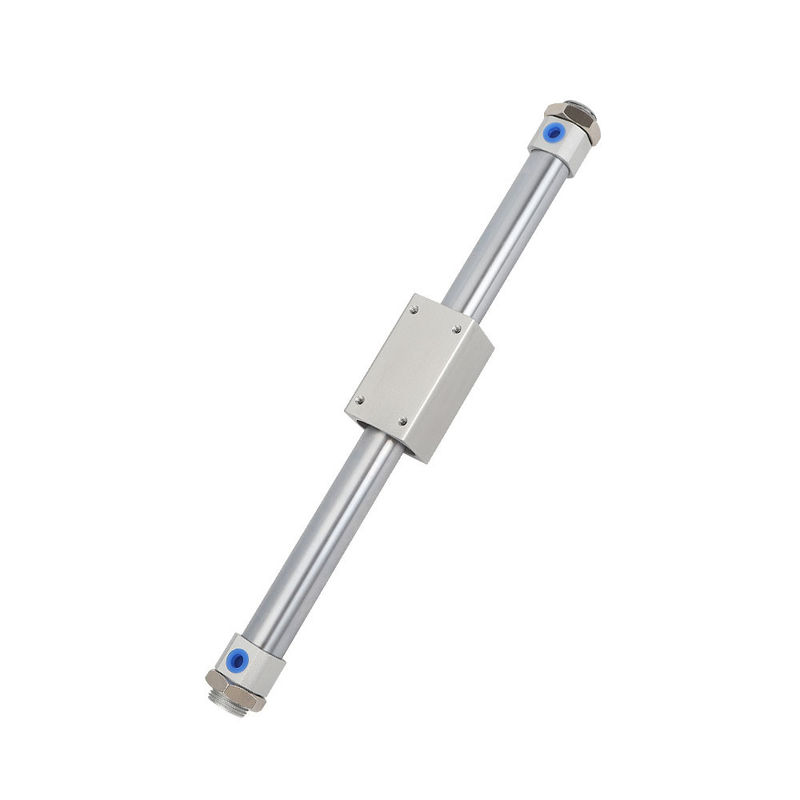

The Working Principle of CY1B Rodless Cylinder
The CY1B rodless cylinder operates by using a unique method to ensure consistent and reliable performance. In this type of cylinder, a set of high-strength magnetic rings is installed on the piston. These magnetic rings are designed to create a long-term and stable magnetic field.
The magnetic field lines created by the rings then pass through the thin-walled cylinder. At the same time, another set of magnetic rings is located on the outside of the cylinder. The two sets of magnetic rings interact with each other due to the opposite magnetic properties of the rings. This interaction results in a strong suction force that holds the two sets of magnetic rings together.
When the air pressure inside the cylinder pushes the piston forward, the magnetic force drives the magnetic ring sleeve located outside of the cylinder to move in sync with the piston. This fluid and dynamic movement is responsible for the thrust of the cylinder piston.
It is crucial to ensure that the suction force of the magnetic ring matches the cylinder piston's thrust. This attention to detail ensures that the cylinder always performs at an optimal level.

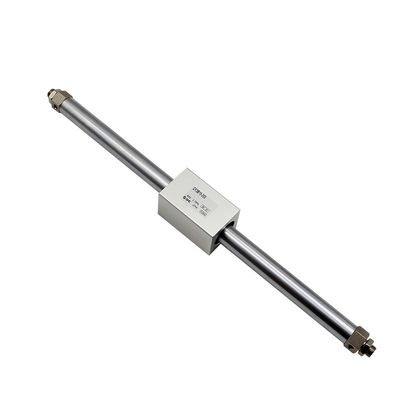

Technical Parameters:
| Product Attribute |
Value |
| Cylinder Type |
CY1B rodless cylinder pneumatic magnetic coupling type |
| Lubrication |
Non-lube |
| Proof Pressure |
1.05 MPa |
| Fluid |
Air |
| Piston Speed |
50 to 400 mm/s |
| Operating Pressure |
0.18-0.7 MPa |
| Ambient and Fluid Temperature |
-10 to 60°C |
| Cylinder Model |
MY1B Mechanically Jointed Standard Bores |
Applications:
Looking for a rodless cylinder that takes up very little space and requires minimal installation efforts? The CY1B series might be the answer to your problems. The small volume of these cylinders makes them easy to install, and the loads can be directly placed on them, which is incredibly convenient.
Does your project require a cylinder with a particularly long stroke? The CY1B cylinders are piston-rod-free, meaning that the movable stroke is longer, making them ideal for such applications.
If you need a cylinder with a high holding force, look no further than the CY1B series. Their unique structure gives them a large holding force compared to other cylinders on the market.
To ensure a good buffering effect, both ends of the CY1B cylinders have rubber added to relieve buffering, which creates smooth and streamlined adjustment.
Packing and Shipping:
Product Packaging:
The piston pneumatic cylinder will be packaged in a sturdy cardboard box to ensure safe transportation. The cylinder will be secured inside the box with foam padding to prevent any damage during shipping.
Shipping:
The piston pneumatic cylinder will be shipped via standard ground shipping through our preferred carrier. Shipping times may vary depending on the destination, but customers can expect their order to arrive within 3-7 business days.
