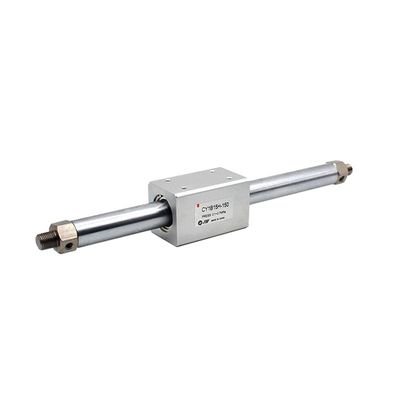

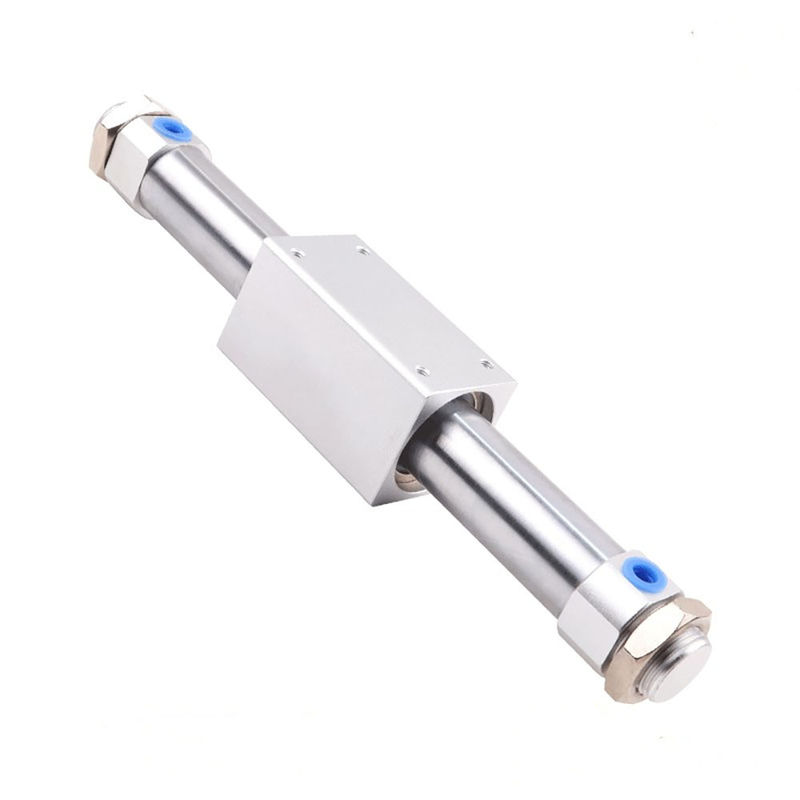

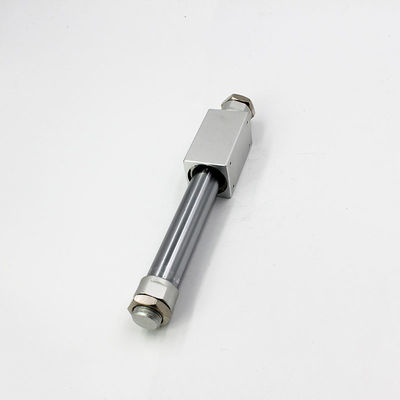

Product Description:
Cylinder diameter: The CY1B rodless cylinder is available in various specifications for cylinder diameters, ranging from 6mm to 63mm. The available sizes include 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.
Travel: The standard travel distance for the CY1B rodless cylinder is 50-1000mm. However, for cylinder diameters of 50mm and 63mm, the travel distance goes up to 6ml.
Operating temperature: The CY1B rodless cylinder is designed to operate within a temperature range of 5-60℃.
Piston speed: With a piston speed of 50~400mm/s, the CY1B rodless cylinder can operate efficiently and effectively.
Usage pressure: The CY1B rodless cylinder is suitable for usage within a pressure range of 0.18-0.7MPa.
Features:
The CY1B rodless cylinder operates by utilizing high-strength magnetic long-term magnetic rings that are installed on the piston. To ensure the effectiveness of the magnetic rings, a specific magnetic property is assigned to them which causes them to exert a strong suction force. These magnetic rings are designed to interact with another set of magnetic rings outside the thin-walled cylinder, which creates a magnetic field and a connection between the two sets.
Using pressurized air inside the cylinder, the piston is pushed forward, which subsequently generates a magnetic force that drives the magnetic ring sleeve outside the cylinder to move along with it. This arrangement causes the two sets of magnetic rings to maintain their connection and exert the required thrust to move the cylinder piston.
The critical aspect that needs to be considered is the match between the magnetic suction force and the thrust of the cylinder piston. This match ensures the optimal performance of the CY1B rodless cylinder and minimizes any malfunctions due to an imbalance of forces.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
CY1B Magnetic Coupling Rodless Cylinder |
| Series |
Magnetically Coupled Rodless Cylinder CY1B Series |
| Operating Pressure |
0.18-0.7MPA |
| Piston Speed |
50 To 400 Mm/s |
| Ambient and Fluid Temperature |
–10 To 60°C |
| Proof Pressure |
1.05 MPa |
| Fluid |
Air |
| Lubrication |
Non-lube |
Applications:
The CY1B series rodless cylinder boasts a small volume and requires minimal installation space. With the ability to directly install loads, installation has never been more convenient.
Thanks to the absence of a piston rod, the CY1B series rodless cylinder is capable of an impressively long stroke. This makes it particularly well-suited for application scenarios that require a long moving distance.
The special structure of rodless cylinders provides a large holding force, making them an ideal choice for applications where a high level of force is required.
Additionally, the CY1B series rodless cylinder boasts a good buffering effect thanks to rubber at both ends of the cylinder. This allows for smooth and easy adjustments.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Product Description: This piston pneumatic cylinder is a high-quality, durable component made for use in a wide range of industrial applications. It is designed to provide reliable and consistent performance in even the harshest environments.
Package Contents: 1 Piston Pneumatic Cylinder
Shipping Method: Standard Shipping
Shipping Cost: $9.99
Estimated Delivery Time: 5-7 Business Days
