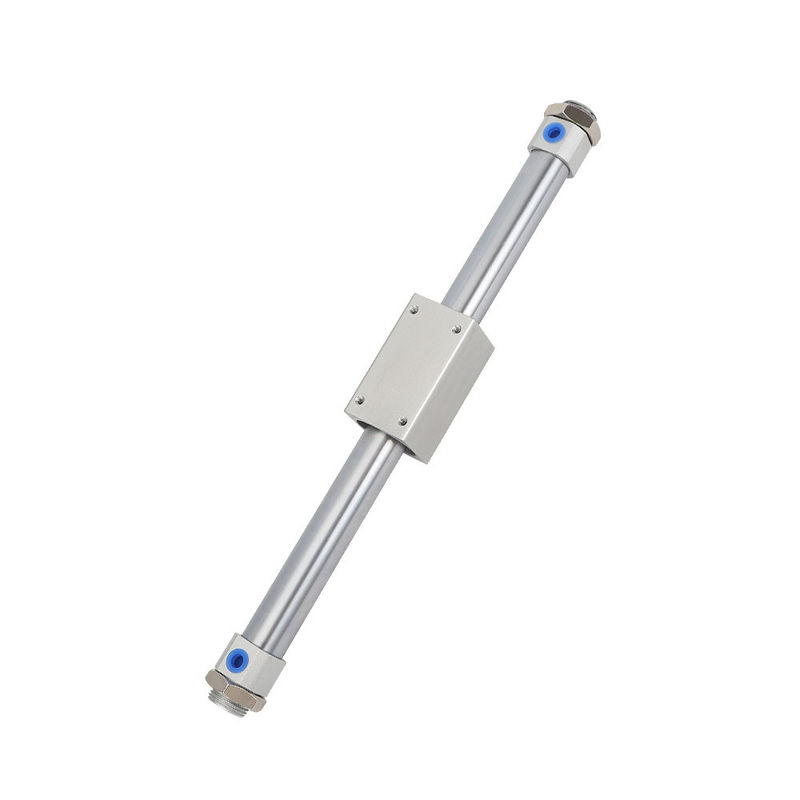

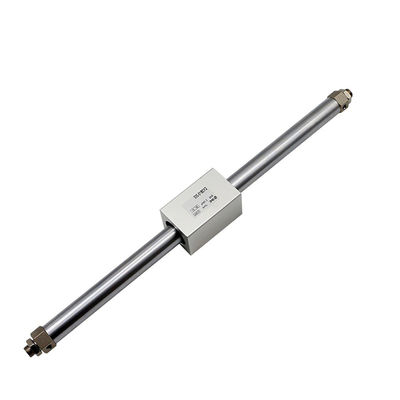

Name: SMC Piston Pneumatic Cylinder With Ambient CY1B32 - 100/200/300/400/../2000
Brand: YW DKE TRADING COMPANY
SKU: CY1B32 - 100/200/300/400/../2000
Availability: InStock

Home Products Piston Pneumatic Cylinder

SMC Piston Pneumatic Cylinder With Ambient CY1B32 - 100/200/300/400/../2000

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Certification:	CE
Model Number:	CY1B32 - 100/200/300/400/../2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Proof Pressure:	1.05 MPa	Fluid:	Air
Ambient And Fluid Temperature:	–10 To 60°C	Lubrication:	Non-lube
Operating Pressure:	0.18-0.7MPA	Piston Speed Weight Weight:	50 To 400 Mm/s
Highlight:	CY1B32 Piston Pneumatic Cylinder , Ambient Piston Pneumatic Cylinder

Product Description:

Cylinder specifications for CY1B rodless cylinder:

The CY1B rodless cylinder offers various options when it comes to cylinder diameters. These include 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.

The standard travel for the cylinder ranges from 50-1000mm. However, for larger cylinder diameters such as 50mm and 63mm, the travel can go up to 6ml.

The operating temperature for the cylinder is in the range of 5-60 ℃.

The piston speed for the cylinder ranges from 50-400mm/s.

Lastly, the usage pressure range for the cylinder is between 0.18-0.7MPa.

Features:

The CY1B Rodless Cylinder

The CY1B rodless cylinder operates on a unique principle, which involves the installation of a set of high-strength magnetic long-term magnetic rings on the piston. These rings interact with another set of magnetic rings on the outside of the thin-walled cylinder, thanks to the flow of magnetic field lines. Since the two sets of magnetic rings have opposite magnetic properties, they create a strong suction force when they come into contact.

The piston inside the cylinder is pushed by the air pressure, and the magnetic force from the magnetic ring sleeve outside the cylinder drives it to move together. As a result, the thrust of the cylinder piston needs to be adapted to the suction force of the magnetic ring to ensure they work in synchronization.

The CY1B rodless cylinder is highly efficient and reliable, thanks to its unique design and working principle. It provides a smoother and more stable operation compared to traditional cylinders, making it perfect for use in various industrial applications.

Technical Parameters:

Product Attribute	Value
Series	CY1B
Product Type	Rodless Cylinder MY1B Mechanically Jointed Standard Bores
Fluid	Air
Ambient and Fluid Temperature	–10 To 60°C
Lubrication	Non-lube
Proof Pressure	1.05 MPa
Operating Pressure	0.18-0.7MPA
Piston Speed	50 To 400 Mm/s
Product Description	CY1B rodless cylinder pneumatic magnetic coupling type

Applications:

Small Size:

The CY1B series rodless cylinder is designed to be compact and requires minimal installation space, which makes it a convenient choice for direct load installation. With its small volume and flexible installation options, this cylinder can be easily integrated into a variety of applications.

Long Stroke:

Thanks to its unique design without a piston rod, the CY1B series rodless cylinder can provide a longer stroke than traditional cylinders. This makes it ideal for scenarios that require a longer range of motion. Whether you're using it in manufacturing, automation, packaging, or any other industry, this cylinder can meet your application needs.

High Holding Force:

The special structure of rodless cylinders allows them to generate a large amount of holding force. With the CY1B series rodless cylinder, you'll be able to securely hold your loads with ease. Whether you're dealing with heavier loads or complex applications, this cylinder has the power you need to get the job done.

Good Buffering Effect:

The CY1B series rodless cylinder features rubber on both ends for smooth buffering and consistent adjustments. This helps to mitigate any potential damage caused by sudden stops or impacts. With this buffering system in place, you can be confident in the reliability and performance of your application.

Packing and Shipping:

Product Packaging:

Each piston pneumatic cylinder is individually wrapped in plastic to protect it from dust and damage during shipping.
Multiple cylinders are then packed in sturdy cardboard boxes with cushioning material to prevent any movement or impact during transit.

Shipping:

Orders for piston pneumatic cylinders are processed within 1-2 business days of receipt.
We offer various shipping methods, including standard ground, expedited, and overnight delivery.
Shipping rates are calculated based on the weight and destination of the order.
Customers will receive a tracking number via email once their order has shipped.
