Product Description:

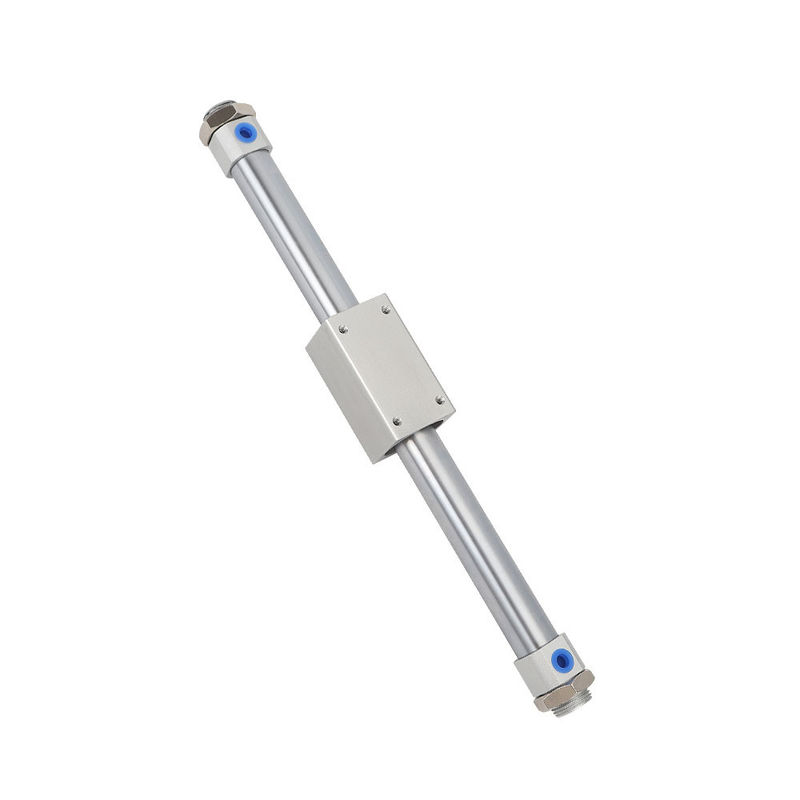

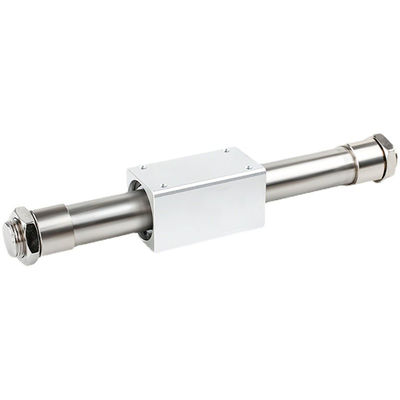

CY1B Rodless Cylinder specifications
The CY1B rodless cylinder comes in various cylinder diameters that include 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm.
The standard travel range of the CY1B rodless cylinder is from 50mm to 1000mm, with a maximum travel of 6ml for cylinder diameters of 50mm and 63mm.
For operating temperature, the CY1B rodless cylinder can be used within a temperature range of 5-60 ℃.
In terms of piston speed, the CY1B rodless cylinder has a piston speed range of 50~400mm/s 1.
Additionally, the usage pressure range for the CY1B rodless cylinder is between 0.18-0.7MPa.
Features:
The CY1B rodless cylinder is designed to operate using a unique working principle. This cylinder makes use of a high-strength magnetic ring that is installed on the piston. The magnetic field which is generated by this ring interacts with another set of magnetic rings located on the outer part of the cylinder.
The magnetic rings on both sides have opposite magnetic properties which result in a strong suction force between them. This force is utilized to drive the magnetic ring sleeve outside of the cylinder which, in turn, moves along with the piston pushed by the air pressure inside the cylinder.
The thrust of the cylinder piston needs to be calibrated in a way that matches the suction force of the magnetic ring. This ensures that the cylinder can operate effectively with seamless performance.
Technical Parameters:
| Ambient and fluid temperature |
–10 to 60°C |
| Proof pressure |
1.05 MPa |
| Fluid |
Air |
| Piston speed |
50 to 400 mm/s |
| Lubrication |
Non-lube |
| Operating pressure |
0.18-0.7 MPa |
Applications:
The CY1B series rodless cylinder is an innovative pneumatic product designed to meet the needs of modern industrial processes. With its small size, the cylinder requires less installation space, making it perfect for applications where space is limited. Furthermore, the cylinder has a unique design that allows for direct installation of loads, thus making installation easy and convenient.
One of the unique features of the CY1B series rodless cylinder is its long stroke. Because there is no piston rod, the cylinder has a longer movable stroke compared to other types of cylinders. This makes it particularly suitable for applications that require long strokes, such as those found in the automation industry.
In addition to its size and stroke length, the CY1B series rodless cylinder has a high holding force. This special structure ensures that the cylinder can hold a large load securely, making it suitable for demanding industrial applications that require high holding force.
The cylinder also has a good buffering effect due to the rubber at both ends. The rubber provides a soft and smooth cushion that relieves buffering, ensuring a smooth and stable operation. With these features, the CY1B series rodless cylinder is an excellent choice for a wide range of industrial applications.
