Product Description:

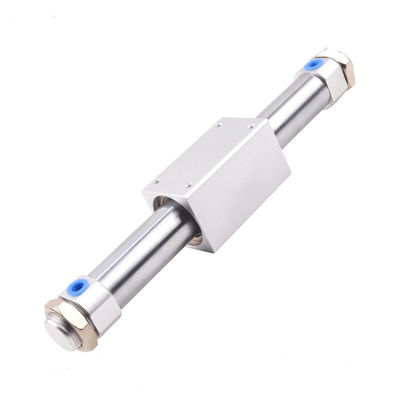

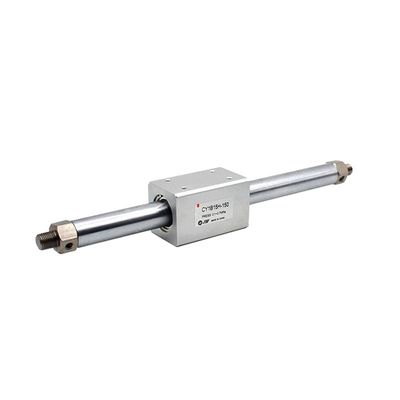

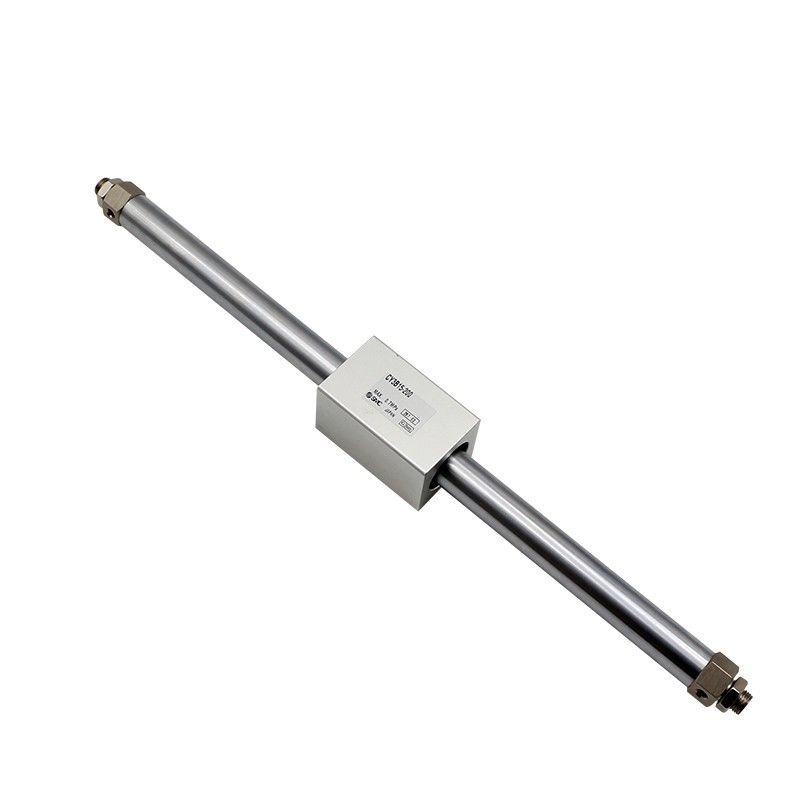

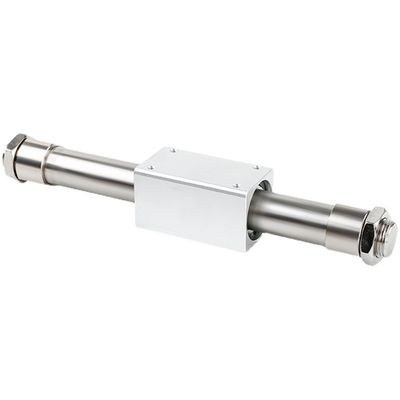

Cylinder Specifications for CY1B Rodless Cylinder
The CY1B rodless cylinder is available in various cylinder diameters including 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm. Each cylinder diameter has its own set of specifications to cater to your specific needs.
Travel Range
The standard travel range for the CY1B rodless cylinder is 50-1000mm. However, for cylinder diameters of 50mm and 63mm, the travel can go up to 6ml.
Operating Temperature Range
The CY1B rodless cylinder can operate within a temperature range of 5-60℃. This allows the cylinder to function efficiently in various environments.
Piston Speed
The piston speed for the CY1B rodless cylinder ranges from 50-400mm/s. This high speed range ensures quick and precise movements.
Usage Pressure Range
The usage pressure range for the CY1B rodless cylinder is 0.18-0.7MPa. This range ensures optimal performance while maintaining safety.
Features:
The CY1B rodless cylinder operates by utilizing high-strength magnetic rings that are installed on the piston. These magnetic rings interact with another set of magnetic rings located on the outside of the thin-walled cylinder. The magnetic field lines pass through the cylinder and due to their opposite magnetic properties, the two sets of magnetic rings generate strong suction forces.
Air pressure is used to push the piston inside the cylinder, and the magnetic force of the rings causes the magnetic ring sleeve outside the cylinder to move along with it.
To ensure proper operation, the thrust of the cylinder piston must be adjusted to match the suction force of the magnetic ring.
Technical Parameters:
| Attribute |
Value |
| Product Name |
CY1B long stroke rodless cylinder |
| Series |
CY1B |
| Fluid |
Air |
| Lubrication |
Non-lube |
| Piston Speed |
50 To 400 Mm/s |
| Ambient and Fluid Temperature |
–10 To 60°C |
| Proof Pressure |
1.05 MPa |
| Operating Pressure |
0.18-0.7MPA |
| Product Name |
Rodless Cylinder MY1B Mechanically Jointed Standard Bores |
| Series |
MY1B |
Applications:
Why the CY1B Series Rodless Cylinder is a Great Choice
The CY1B series rodless cylinder has a compact design that makes it an excellent choice for applications where space is limited. Its small size makes direct installation of loads possible, making installation quick and easy.
As there is no piston rod present, this cylinder offers a longer movable stroke than other types of cylinders. This feature makes it particularly useful for scenarios that require a longer stroke.
These rodless cylinders are designed with a unique structure, which provides them with a high holding force. This makes them useful for handling loads with precision and ease.
Finally, this cylinder offers a great buffering effect, thanks to the rubber on both ends of the cylinder, which provides smooth and consistent adjustment.
Packing and Shipping:
Product Packaging:
The Piston Pneumatic Cylinder product will be packaged securely in a cardboard box to ensure safe delivery.
Shipping:
We offer free standard shipping for the Piston Pneumatic Cylinder product within the United States. Expedited shipping is available for an additional fee. International shipping is also available for an extra charge.
