Product Description:

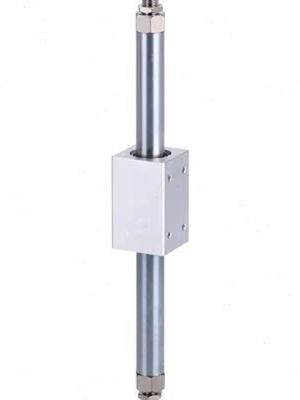

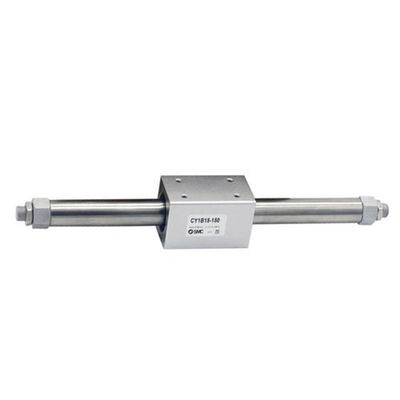

Main Properties of CY3B Magnetic Coupling Rodless Cylinder
The CY3B magnetic coupling rodless cylinder is a unique product with a variety of distinctive features. The basic parameters of the cylinder include:
- Cylinder diameter: 25mm, 32mm, and more
- Journey: 1693mm, 300mm, and more
- Action mode: double acting
- Fluid used: air
- Buffer form: rubber buffer
- Pipe connection diameter: 1/8 inch
- Installation methods: horizontal, inclined, and vertical installation
- Minimum operating pressure: 0.15MPa
- Maximum operating pressure: 0.7MPa
- Guaranteed pressure resistance: 1.05MPa
- Environmental temperature: -10 ℃ - 60 ℃
- Using piston speed: 50-500mm/s
In addition to its basic parameters, the CY3B magnetic coupling rodless cylinder has several performance characteristics that make it a popular choice. These include:
- Direct load installation: able to directly install loads with high holding force
- Light weight and simple structure: The main body is made of all aluminum alloy, and imported seals are used for strong reliability
- Excellent sealing performance: The piston chamber is separated from the slider to prevent dust and dirt from entering the system, extending its service life
- Smooth operation: The cylinder is equipped with buffering devices at both ends, ensuring smooth and impact free reversing action, avoiding mechanical damage
- Space saving: takes up less space than regular cylinders, and has a larger stroke than regular cylinders
- Built in magnetic ring: can install magnetic switch, smooth sliding
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
CY3B Magnetic Coupling Rodless Cylinder |
| Ambient and Fluid Temperature |
-10 to 60°C |
| Piston Speed |
50 to 400 mm/s |
| Fluid |
Air |
| Operating Pressure |
0.18-0.7MPA |
| Lubrication |
Non-lube |
| Proof Pressure |
1.05 MPa |
| Weight |
Depends on model |
Applications:
The Piston Pneumatic Cylinder is designed to have a piston speed of 50 to 400 mm/s and a proof pressure of 1.05 MPa. It uses air as the fluid and requires non-lube lubrication. The ambient and fluid temperature range is -10 to 60°C. This product is perfect for various industrial applications where pneumatic cylinders are needed.
The CY3B magnetic coupling rodless cylinder is ideal for use in automation equipment, packaging machinery, and machine tools. It is designed to provide high accuracy and reliability, even in harsh environments. The Rodless Cylinder MY3B Mechanically Jointed Standard Bores is perfect for applications where space is limited and high speeds are required. It is suitable for use in the automotive, food, and medical industries. The CY3B long stroke rodless cylinder is perfect for applications where long strokes are required. It is ideal for use in the textile, paper, and printing industries.
Overall, the SMC Piston Pneumatic Cylinder is a versatile product that can be used in various industrial applications. Its high quality and reliability make it a great investment for any business looking to improve their manufacturing processes.
Packing and Shipping:
Product Packaging:
- The piston pneumatic cylinder is securely placed in a cardboard box.
- The box is filled with packing material to prevent any damage during shipping.
- The box is labeled with product information and handling instructions.
Shipping:
- The product is shipped via a reliable and trusted courier service.
- Customers can track their shipment using a tracking number provided by the courier.
- Shipping times may vary depending on the destination and shipping method.
- Customers are responsible for any customs or import duties that may be applicable.
